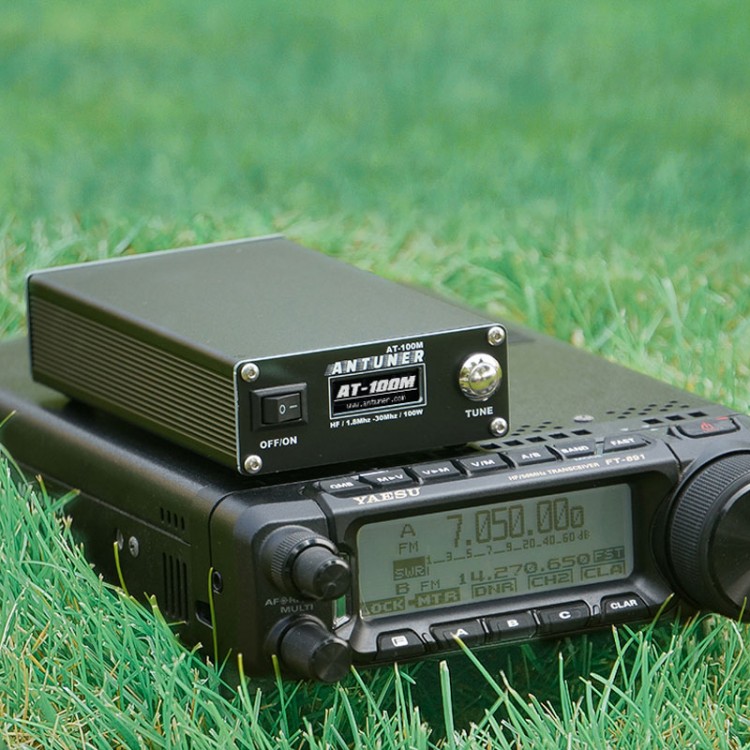

ANTUNER AT-100M Universal HF Antenna Tuner 1.8Mhz-30Mhz 100W SWR Power Meter for Yaesu Kenwood Xiegu

ANTUNER AT-100M Universal HF Antenna Tuner 1.8Mhz-30Mhz 100W SWR Power Meter for Yaesu Kenwood Xiegu

Features:
- AT-100M universal antenna tuner
- Small and portable: compact size 139 x 74 x 29mm/5.5 x 2.9 x 1.1"; sturdy metal case; weight 370g/0.8lb
- Built-in lithium battery: With 3300mAh imported polymer ultra-thin lithium battery, the average tuning time is about 15 hours. Type-C interface charging facilitates outdoor uses
- Suitable for various transceiver antennas. No need for professional data cables, featuring simple wiring and good versatility. Fit most radio stations such as for Yaesu, ICOM, Xiegu, Kenwood, USDX, and QRP; support dipole antenna, GP antenna, long-line antenna, end feed antenna, Yagi antenna and vehicle short-wave antenna, etc.
- Quick tuning: The system has built-in 20 groups of automatic storage and 9 groups of user storage bits. When tuning, AI intelligently adapts 29 sets of memory bits to achieve fast and accurate tuning
- High withstand power. Supports multiple modes, including SSB/CW/AM/FM/FT8. Adopting reasonable routing of signal cable, imported magnetic powder core, high-quality copper wire, its instantaneous peak withstand power can reach 120W in SSB mode (*FT8 digital mode transmit power should not exceed 50W)
- Multifunctional: it can be used as a antenna tuner, power meter and SWR meter. Using 0.91" high-definition OELD display, there are six status interfaces to choose from. Support bar graph and curve graph to visually display VSWR, forward direction power, and reverse power
- Built-in buzzer: When the button or standing wave exceeds the threshold, it will automatically sound an alarm, effectively avoiding damage to your radio
- The system supports 16 parameter configurations, which are suitable for advanced players to customize their own tuning system. Buzzer switch, storage quantity, automatic tuning switch, automatic storage quantity, automatic starting and tuning of standing wave, radio station type can be set
- Simple to connect and easy to use

Specifications:
- Frequency range: 1.8-30MHz
- Power range: 1-18MHz or SSB/CW, 0.1W-100W; 18-30MHz or FM/AM/FT8, 0.1W-50W
- Dimensions: 139 x 74 x 29mm/5.5 x 2.9 x 1.1"
- Product weight: 370g/0.8lb
- Battery capacity: 3300mAh
- Charging current: USB Type-C 5V 1A
- Charging time: about 4 hours
- Standby time: about 150~200 hours (without tuning action)
- Tuning time: about 10~25 hours (start 1-3 relays)

Package Included:
- 1 x Main Unit
- 1 x Type-C Charging Cable
- 1 x User Manual
- 1 x Adhesive Tape
- 1 x Allen Wrench

Note:
- RF cable is not included, please purchase separately.
