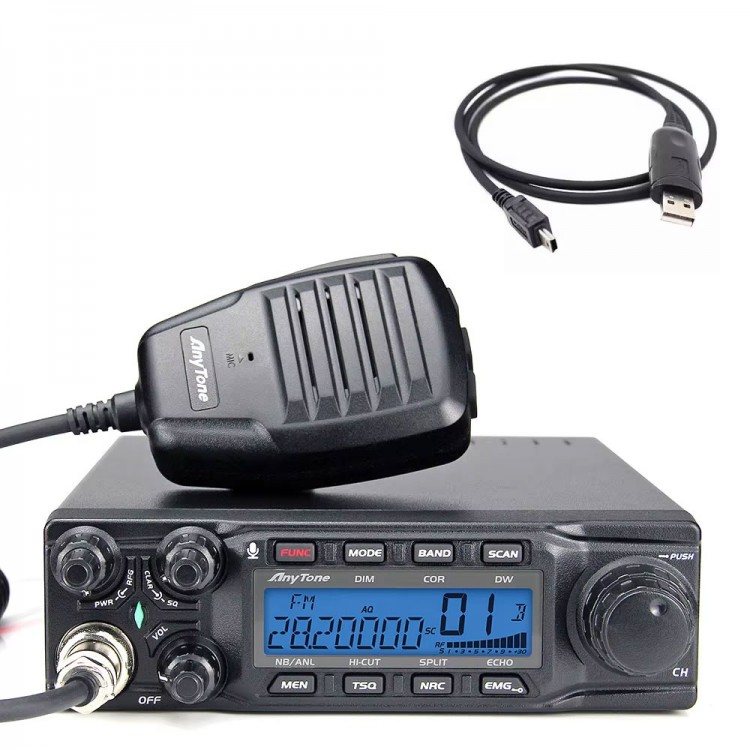

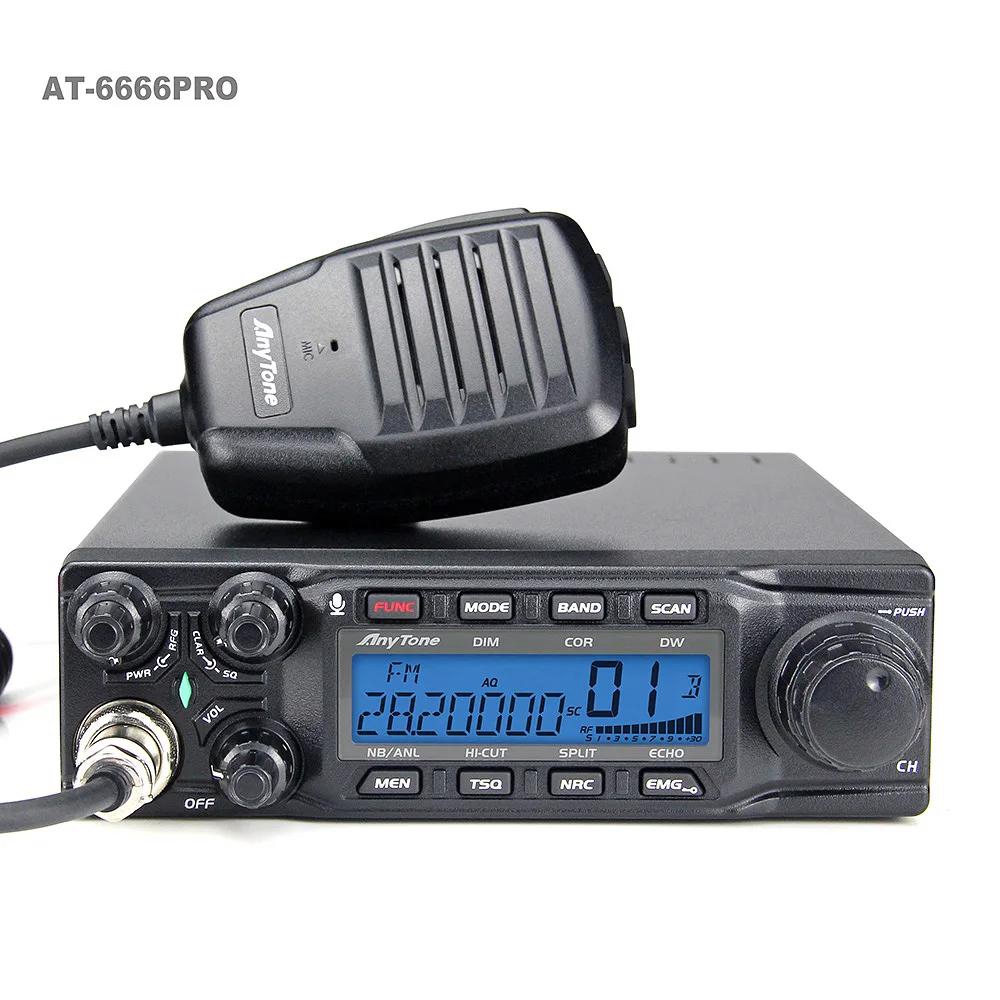

AnyTone AT-6666PRO 28-29.7MHz 10-Meter 40-Channel Amateur Radio AM/FM/USB/LSB/PA/CW Mode Radio Transceiver + Programming Cable

AnyTone AT-6666PRO 28-29.7MHz 10-Meter 40-Channel Amateur Radio AM/FM/USB/LSB/PA/CW Mode Radio Transceiver + Programming Cable

Features:
- AM, FM, USB, LSB, PA, CW modes
- AM/SSB PEP max: 80W; FM max: 50W
- 10Hz, 100Hz, 1K, 5K, 10K, 100K, 1MHz step
- ECHO function
- SQ & ASQ function (FM and AM mode only)
- DW Dual-watch function
- Beep voice prompt
- Emergency call function
- Hi-cut function
- CTCSS/DCS code
- Multi-color display
- NRC function for TX & RX
- User define key for microphone
- PC programmable
- TOT function
- Scan function
- VOX function

General Parameters:
- Frequency range: 28 - 29.7MHz (programmable)
- Frequency band: A/B/C/D/E/F/G/H/I
- Channel: 40 channels (programmable) in each band
- Frequency control: phase-locked-loop synthesizer
- Frequency step: 10Hz, 100Hz, 1KHz, 5KHz, 10KHz, 100KHz, 1MHz
- Frequency tolerance: ±5.0ppm
- Temperature range: -20℃ to +50℃

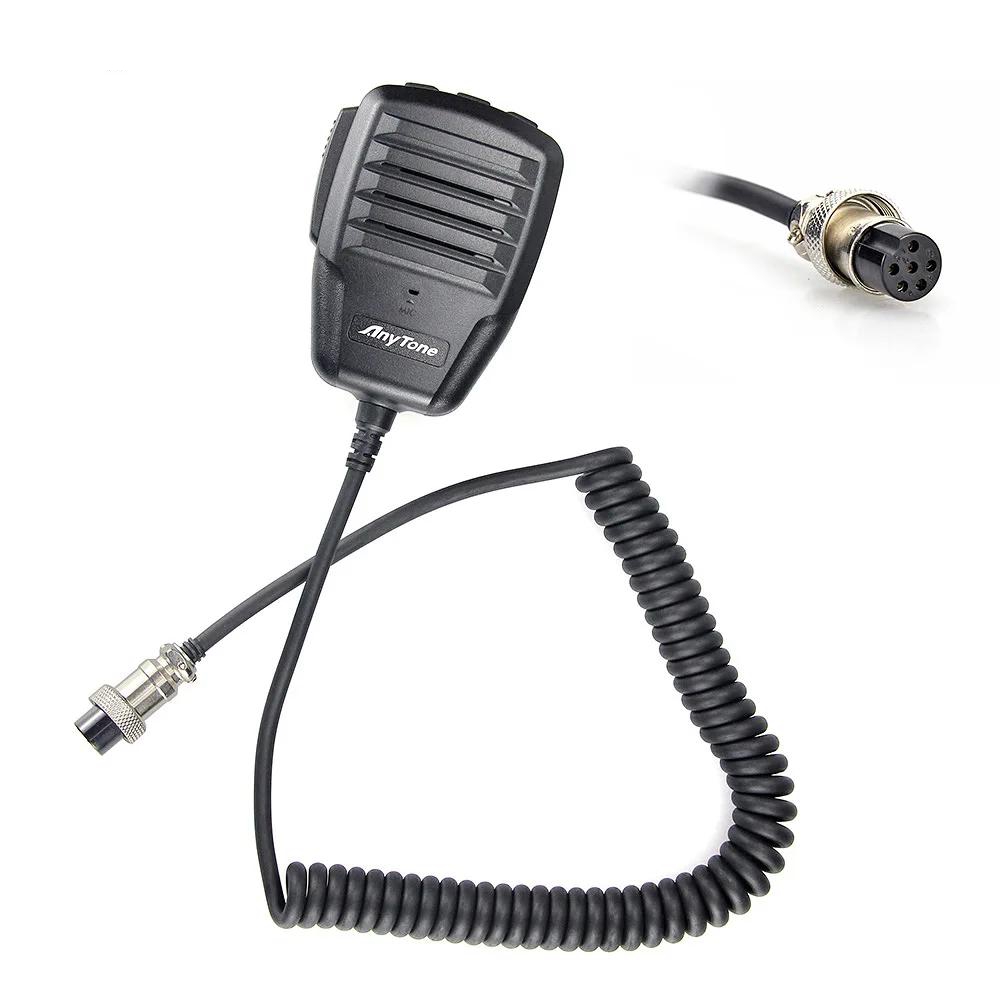

- Microphone: with push-to-talk/UP/DN and coiled cord
- Input voltage: DC 13.8V normal

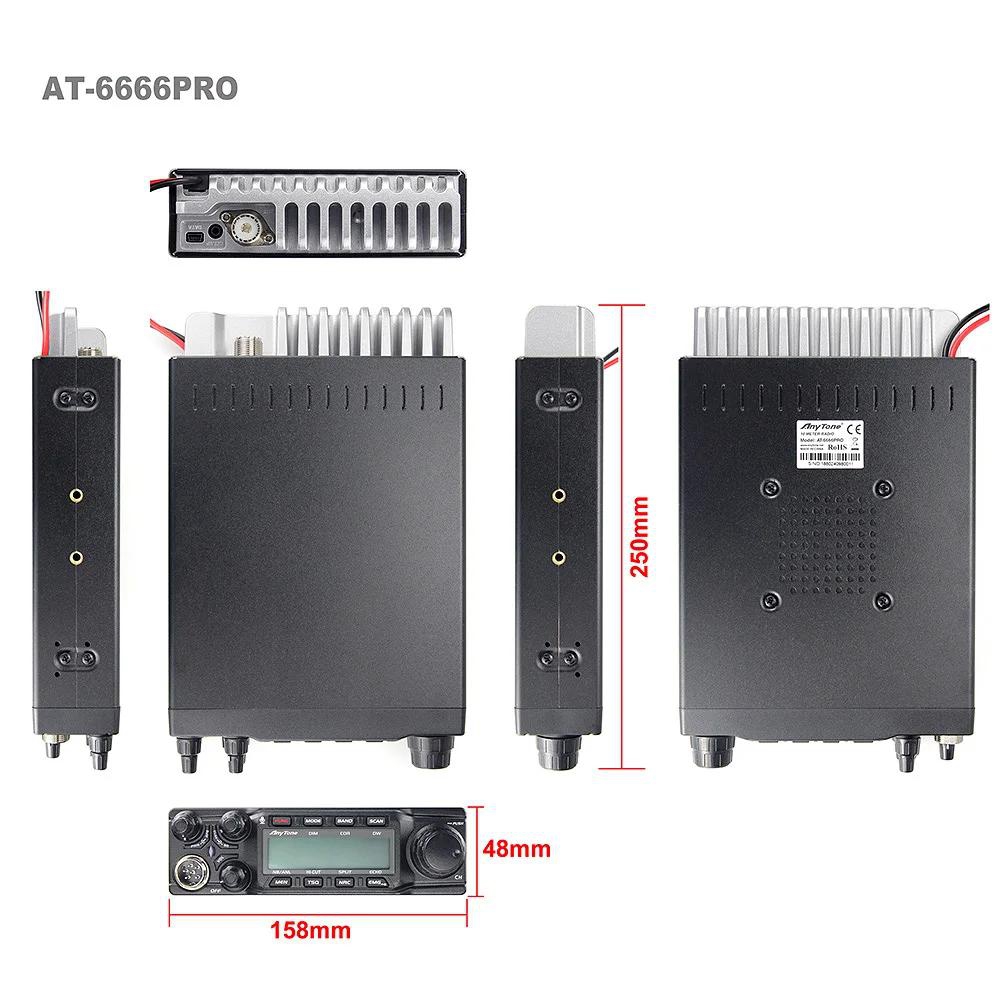

- Dimension: 252(L) x 158(W) x 48(H)mm
- Weight: 1.27kg

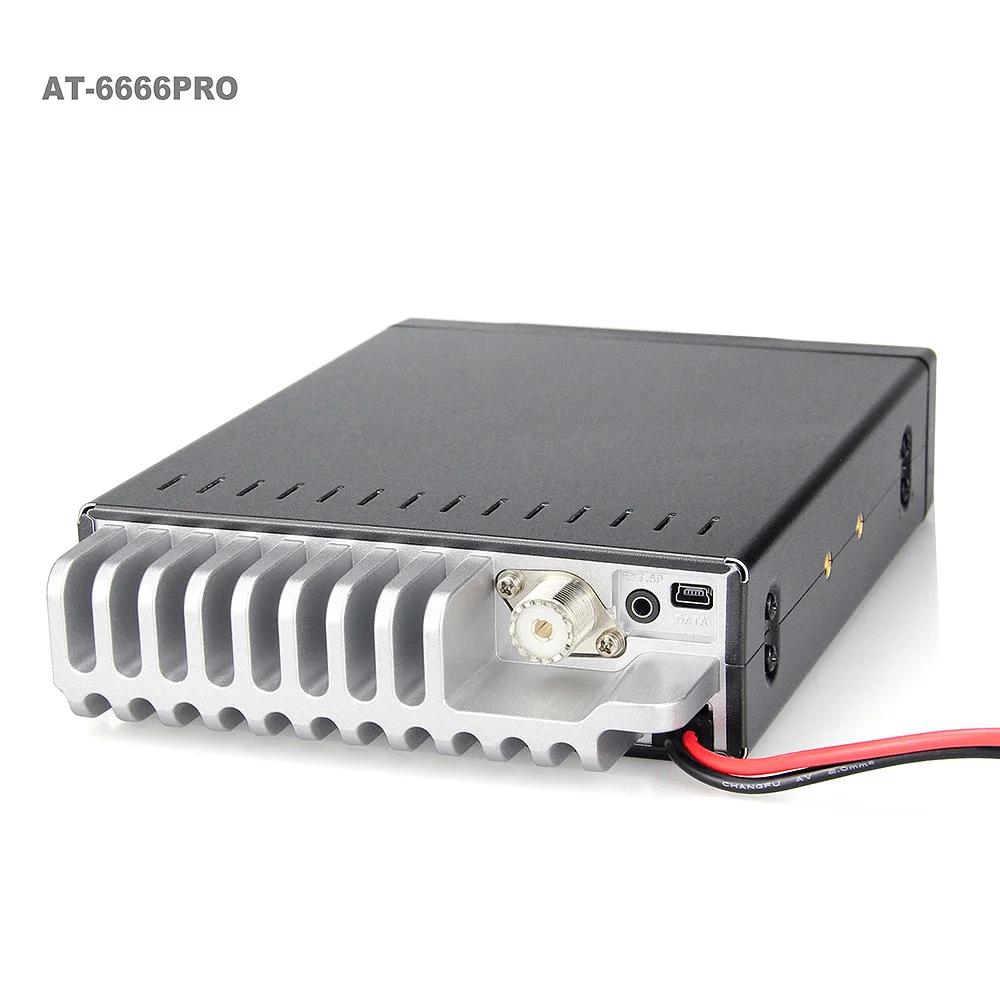

- Antenna connector: UHF, SO239

Transmitter:
- Power output:
  AM: 80W (PEP)
  FM: 50W
  SSB: 80W (PEP)
- Drain: 15A (with modulation)
- Modulation: FM/AM/USB/LSB/CW
- Inter-modulation distortion: SSB: 3rd order, more than -25dB; 5th order, more than -35dB
- SSB carrier suppression: 55dB
- Unwanted side-band: 50dB
- Frequency response:
  AM/FM: 300 to 3000Hz
  SSB: 450 to 2500Hz
- Output impedance: 50ohms, unbalanced

Receiver:
- Sensitivity:
  SSB: 0.25μV for 10dB (S+N)/N
  AM: 1.0μV for 10dB (S+N)/N
  FM: 1.0μV for 20dB (S+N)/N
  (All at greater than 1/2 watt of audio output)
- Adjacent channel selectivity: 60dB for AM/FM; 70dB for SSB
- Image rejection: more than 65dB
- IF frequency:
  AM/FM: 10.695MHz 1st IF, 455kHz 2nd IF
  SSB: 10.695MHz
  RF gain control: 45dB adjustable for optimum signal reception
- Automatic gain control (AGC): less than 10dB change in audio output for inputs from 10 to 100000 micro-volt
- Squelch: adjustable; threshold less than 1.0μV. Automatic squelch control (only AM/FM) 1.0μV
- Audio output power: 3 watts into 8 ohms
- Frequency response:
  AM/FM: 300 - 3000Hz
  SSB: 450 - 2500Hz
- Built-in speaker: 8ohms, round
- External speaker (not supplied): 8ohms; disables internal speaker when connected

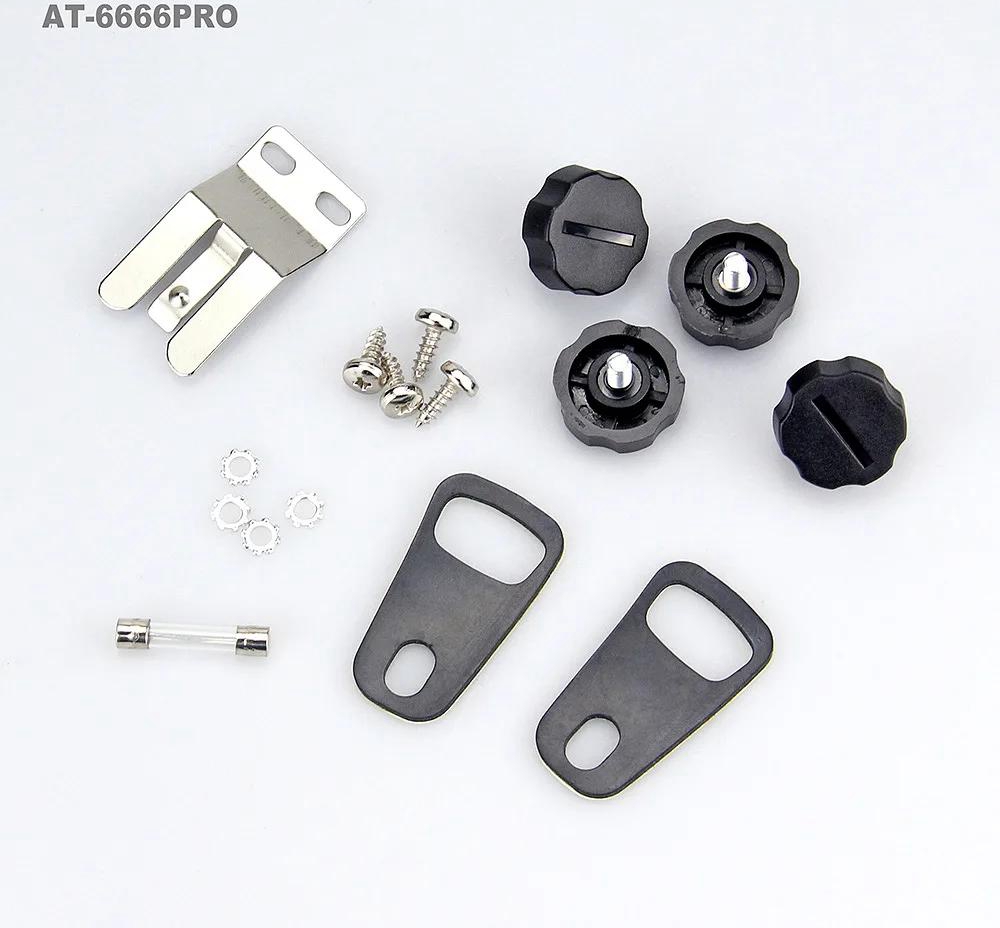

Package Included:
- 1 x Host

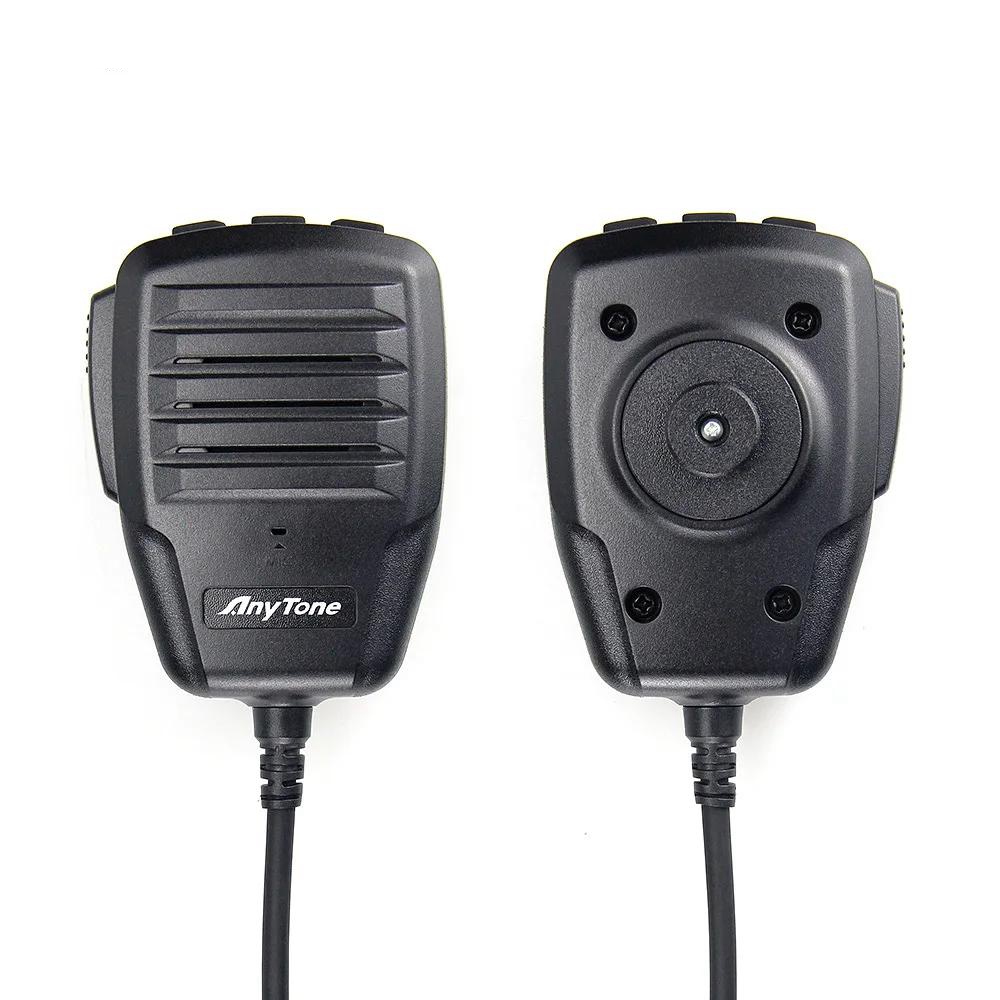

- 1 x Microphone
- 1 x Mobile Bracket
- 1 x Microphone Hanger
- 1 x Non-slip Mat
- 1 x Spare fuses 15A 250V
- 4 x Tapping Screws
- 4 x Pads for Bracket
- 4 x Adjusting Screws
- 1 x User Manual
- 1 x Programming Cable
