AOMWAY 5.8G 32CH 1000mw TX Transmitter w/1200TVL 960P HD Mini Camera Kit for Sony CCD FPV

AOMWAY 5.8G 32CH 1000mw TX Transmitter w/1200TVL 960P HD Mini Camera Kit for Sony CCD FPV

Transmitter Transmission (Compatible Fatshark Skyzone):

Description:
The best 5.8G video TX ,distance can reach 15kM or even more, with AAT and PANEL ANTENNA

Specification:
- Frequency: 5.8G wide-band FM video/audio tx
- transmission Power: 1000MW/30.5dBm
- 15 channels total,the synch of audio and video.
- Weight: 43g without antenna（5db）
- PAL/NTSC supported
- Sterieo audio: L/R audio channe;
- Input Voltage:9-16v
- antenna connector: SMA
- size:60x33x20(mm)
- power dissipation:DC12 700MA
- Operating Channels:5740-5860MHz(7-channel)/5705-5925MHz(8channel)
- Transmitting distance: 2km-4km with original antenna

PA IC make it won't be burnt if the antenna is loose, which is very useful to get a reliable system because no one can make sure the antenna is always tightly connected during a crash.

AOMWAY Camera specification:
- Sony 1/3" HD sensor
- 1200TVL 960P HD CCD
- NTSC/PAL format adjustable via jumping
- Low luminance sensor, better compatiblity with differnt environment
- Zinc alloy case, weight only 22g.
- Small unit size 26*25mm
- 4.5-5.5V working voltage
- 230mA working current
- 2.8mm color lens
- With Doupont and JST connect cable
- With fIxing mount, convenient to adjust

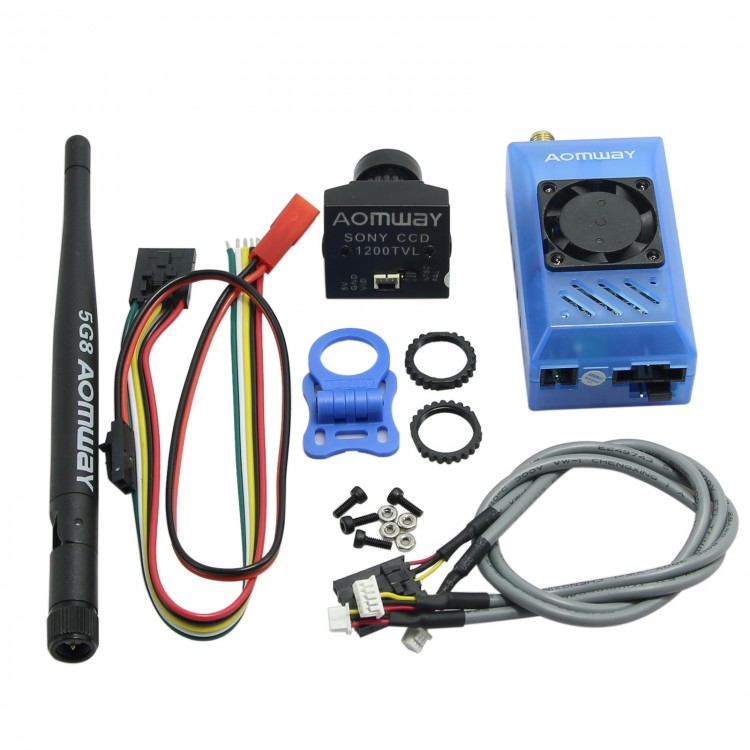

Package included:
- 1* AOMWAY 1200TVL mini camera
- 1* AOMWAY Camera
