Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $108.01 | $105.80 | $102.50 | $98.09 | Contact US |

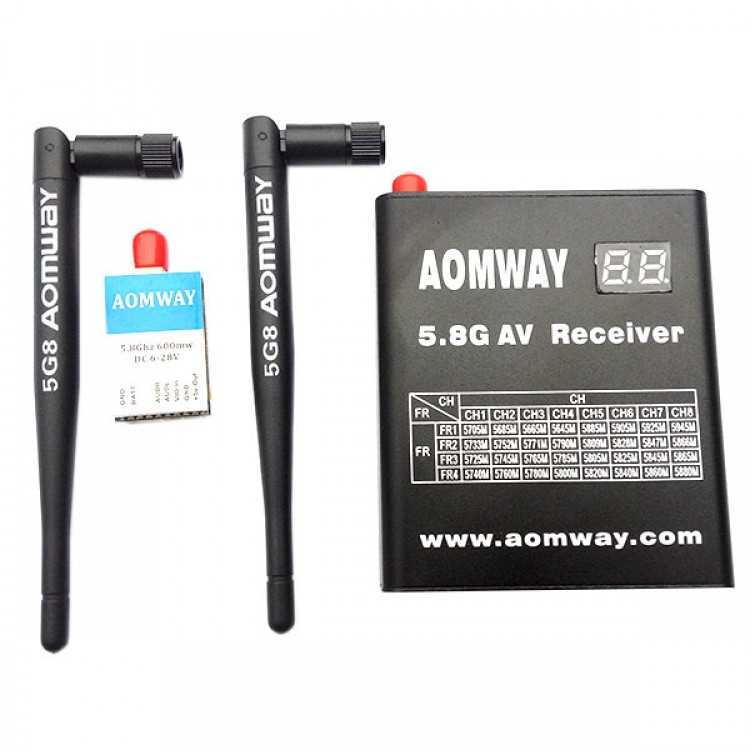

Aomway 5.8G 32CH MINI600mw Wireless Transmitter TX Telemetry & 32CH DVR Receiver RX for Multicopter FPV Photography
5.8G large power TX features:
- 5.8G FM audio video simulteneous transmission
- Large TX power: 600+mw 28db
- 32 frequency points
- 32 Channe;s to choose from:
5740-5860MHz / 5705-5945MHz
5725-5865MHz/5733-5866MHz
- Size: 31*21mm
- Weight: 11g
- Stereo sound, left right channel independent transmission
- PAL/ NTSC
- Input voltage wide range: DC6-28V
- Low consumption: 12V 260mA
32CH DVR Receiver Specification:
- 5.8GHz video/ audio syncing receiving
- Weight: 126g
- DVR real time playback function
- TF card storage, max support 64GB
- DVR: D1 format, 720p real time audio videotaping
- Video compress format MJPG
- Video output format: AVI
- High sensible receiving: >= -95%
- Dimension: 80*70*25mm
- Input voltage: DC 7-25V(2-6s)
- Supply two channel independent video/ audio output terminal
- Consumption current: 12 v 170mA
- Working frequency: 5.8G
- 32CH digital tube display
- Working frequency band: FR1 5705-5945MHZ
FR2 5733-5866MHZ
Package includes:
- 32CH TX Transmitter x 1
- 32CH DVR Receiver RX x 1
