Aomway 5.8G 40CH Transmitter Audio Video Tx SMA 25mW 200mW 600mW Adjutable for Drone FPV Quadcopter TX001
Specification:
- TX001A: Antenna interface is standard SMA
- Transmitting frequency: 5.8Ghz
- Transmitting power: 5.8G button control boot /25mw/200mw/600mw

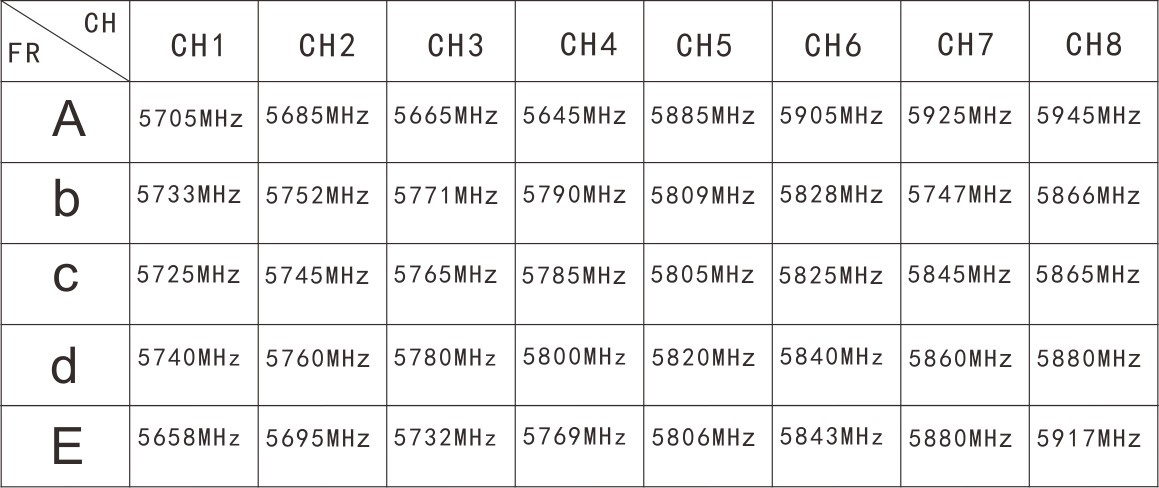

- Transmitter channel: 5.8G 40 channel 5658-5945mhz (Raceband)
- Wide power input: 6-28v
- Current: 12V / 200MW / 150mA
- Channel Adjustment: button control band and channel
- Channel indication: LED indicator channel and high and low power
- Mark: mark can be switch on and off. When Mark on, occupies a single audio channel
- Power adjustment: button to adjust the open, close and high and low power
- Output voltage: output to the camera 4.9-5.1v
- Audio: Stereo output
- Standard: automatic identification NTSC/PAL
- TX001A: Antenna interface is standard SMA
- Volume: 29*25*10mm
- Weight: TX001A:11g

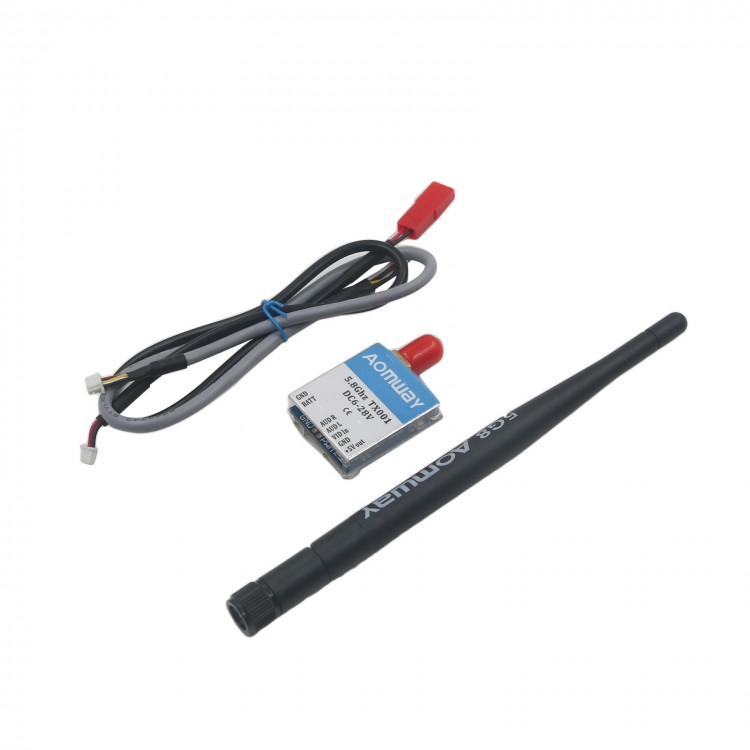

Package included:
- 1* Aomway 5.8G 40CH FPV transmitter
- 1* 5dB antenna
- 1* Power cable
- 1* Manual
- 1* Signal cable
