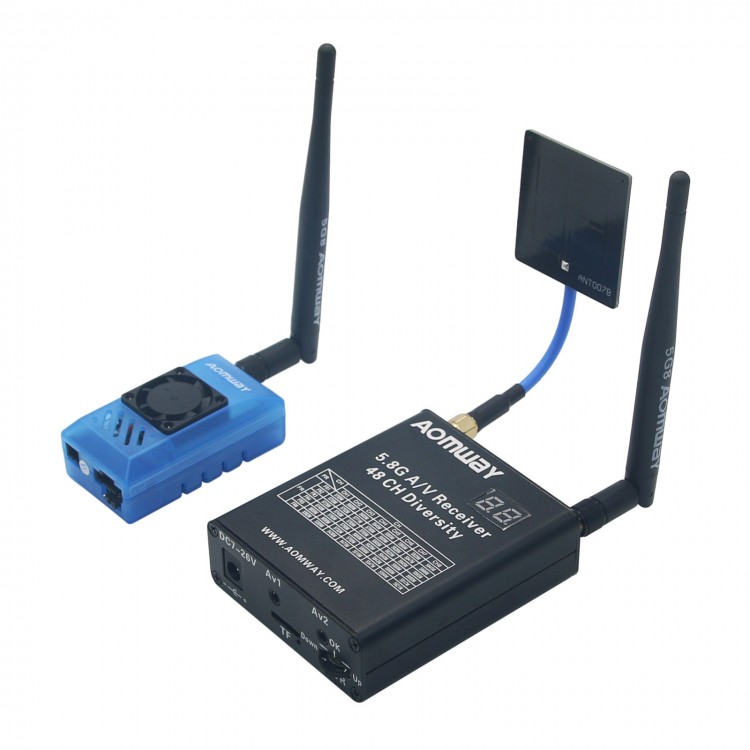

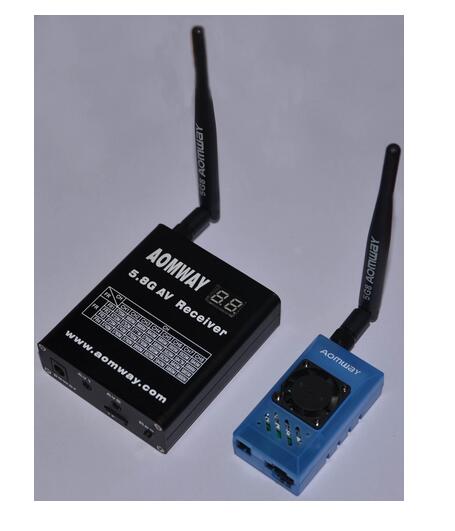

Aomway 5.8G A/V Receiver 48 CH FPV Telemetry Diversity DVR +AOMWAY 5.8G 32CH 1000mw TX Transmitter Camera Kit

Aomway 5.8G A/V Receiver 48 CH FPV Telemetry Diversity DVR +AOMWAY 5.8G 32CH 1000mw TX Transmitter Camera Kit

Product Description:
- The best 5.8G video TX ,distance can reach 15kM or even more, with AAT and PANEL ANTENNA
2016 newest 5.8G High power transmitter gains Raceband frequency group,the 16 channel changes into 32 channel.2017latest receiver is 48 channel.
- The new model never burn out when the antenna is not mounted or the antenna is not tightened.
- Selected high temperature, wear-resistant, translucent material shell. More beautiful and achieve industrial level requirements.
- All high-power launches are standard high gain custom 5dB antennas. (internal screw thread needle) received the DVR function, the 2014 update adds DVR add function.

AOMWAY 5.8G High Power Transmitter characteristics:
- Frequency: 5.8G wideband FM video/audio synchronous transmission
- transmission Power: 1000MW/30.5dBm  large transmitter power:1000mw  30.5db.
- Built-in two kinds frequency option:5740-5860MHz / 5705-5925MHz;5725-5865Mhz/ 5658-5917MHZ
- 32 transmittion channnel
- Assemble with 5db omnidirectional antenna
- Small size:55*27*11mm .
- Light weight:43g(Antenna is not included.)
- Stereo, left and right channel independent transmission
- Full standard: PAL / NTSC.
- Wide input voltage range:DC7-16v
- Overall size:60*33*20mm.
- 15 channels total,the synch of audio and video.
- Weight: 43g without antenna（5db）
- PAL/NTSC supported
- Sterieo audio: L/R audio channe;
- Input Voltage:9-16v
- antenna connector: SMA
- size:60x33x20(mm)

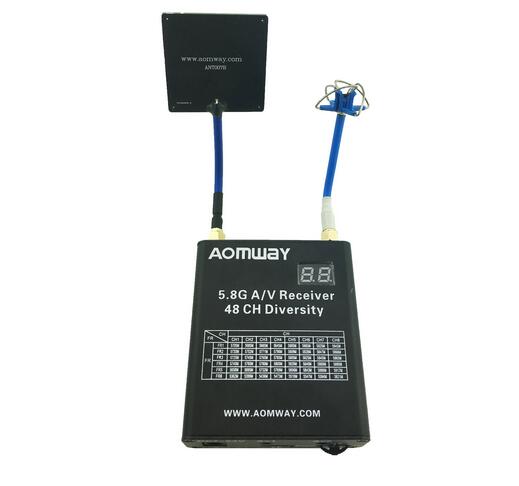

2017 DIV006 Receiver Parameter:
- New model,it gains automatic save function after power off,realising the function for black box.Auto choose the best output.

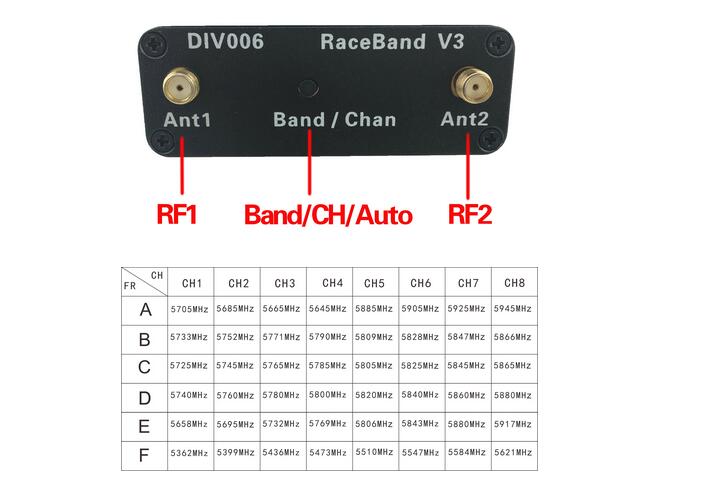

- Operating frequency band:FR1 5705-5945MHZ FR3 5725-5865MHZ  FR5 5658-5917MHZ;FR2 5733-5866MHZ FR4 5740-5860MHZ  FR6 5362-5621MHZ
- DVR audio video recording,720p D1 formate.
- Video compression format:MJPG.
- Video output format:AVI.
- Video ouytput standard:PAL.You can also choose N formate when buying.
- TF card storage,support the maxium 64GB.
- High sensitivity:-95%
- Input voltage:7-25v (2-6s)
- Power consumption:DC12v  170mA
- Channel option:32 channel ,digital display
- Size:80*70*25mm aluminum box
- Weight:137g (Antenna is not included)

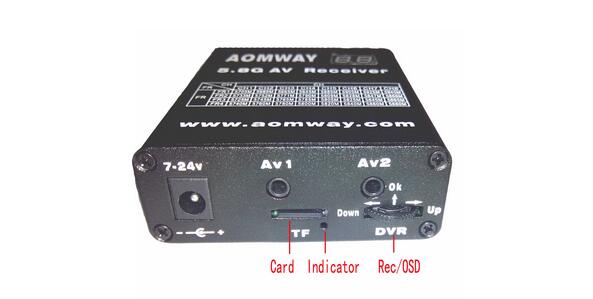

Record key usage:
After the boot, the recording board will output AOMWAY company logo. Next, the received images will be shown.
The recording board is in standby mode at this time. The recording indicator is always on.
- Just press the Rec button to start record, and LED blinks.
- Press the Rec button again to stop recording, and the LED light is always on.
Replay function:
Press the middle button for 5 seconds to enter the main menu.
A. Main menu has three items, through the Down and Up keys to go up and down.
1.Playback record videos.
2.Formatting TF Card format.
3.Language choice.
4.Automatic recording.
5.Cycle recording.
6.System standard (please remain the same as your camera)

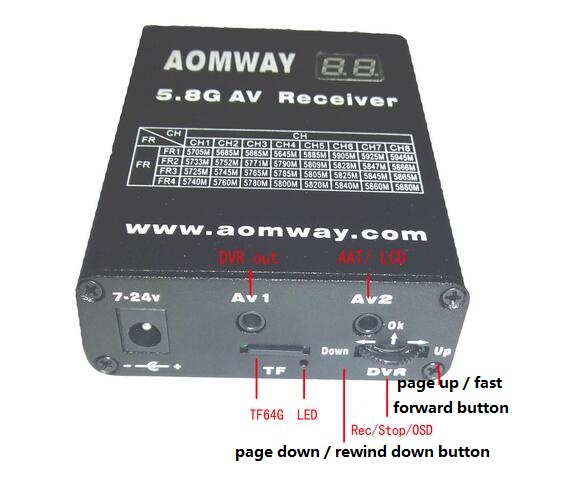

Short press the middle button to enter submenu:
1.Select the file to play through Down and Up,short press the middle button to confirm the playback
2.When playback,the Down button is rewind down key X1 x2 X4 x8.
3.When playback,Up key is fast forward button, X1 x2 X4 x8.
4.The middle button is the play key and the pause key
C.When playback,long press the middle key 5S to return to the main menu.
D.Short press the middle button to return to record mode.
- It is 30 minutes for the recording board to save a file.
- AV1 is the transmission signal through the DVR output to prevent blue screen and can intuitively see the recording state
- AV2 is the directly outputs signal  and can connect to the AAT and monitor.

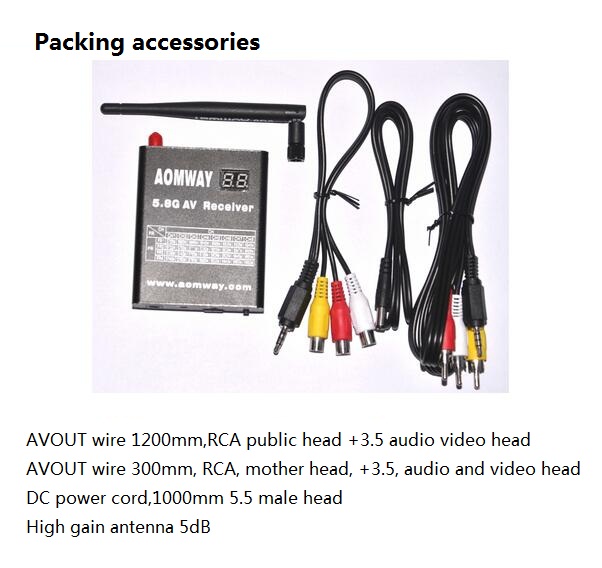

Package List:
- 1 x  Aomway 5.8G A/V Receiver 48 CH FPV Diversity DVR Image Receiver Transmission
- 1 x AOMWAY 5.8G 32CH 1000mw TX Transmitter Camera Kit
- 1 x  AVOUT wire 1200mm,RCA public head +3.5 audio video head
- 1 x  AVOUT wire 300mm, RCA, mother head, +3.5, audio and video head
- 1 x  DC power cord,1000mm 5.5 male head
- 1 x  High gain antenna 5dB
