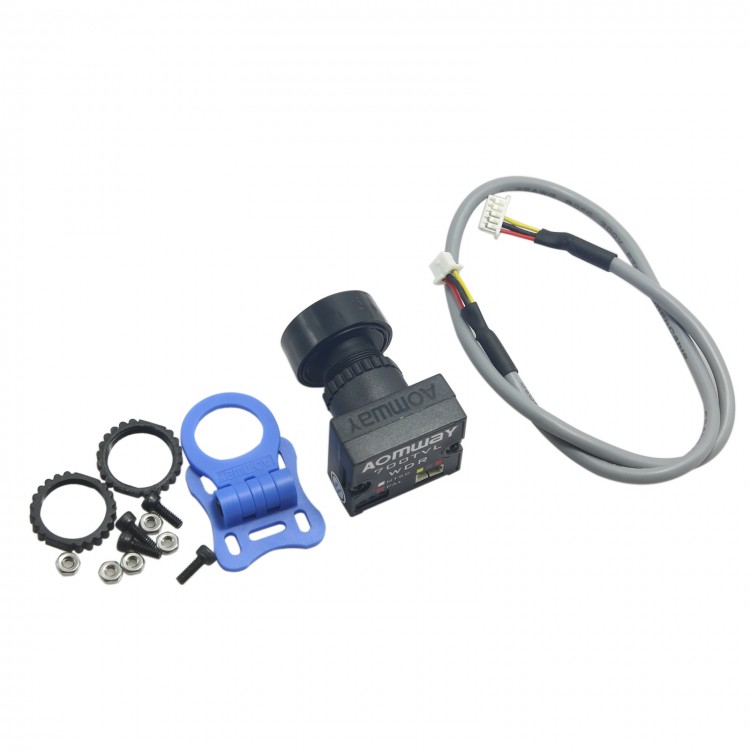

AOMWAY 700TVL WDR HD CMOS Camera 2.1M Pixels for Multicopter FPV Photography
Description:
- This camera has two types of inerfaces: one is for MINI transmitter JST 1.25*5P (MINI200MW Transmitter), another type is normal Dupont MOL5P*2.54 (normal dupont head). Please choose when placing the order.
- Please note the format: NTSC/ PAL
Parameters:
|
Type |
Colour |
||
|
Signal System |
PAL / NTSC |
||
|
|
||
|
Pick Up Device |
1/3” COMS |
||
|
Picture elements |
|
||
|
Resolution |
700TV Lines |
||
|
|
||
|
Scanning System |
2:1 Interlace |
||
|
Sync System |
Internal |
||
|
S/N Ration |
More than 45dB |
||
|
Gain Control |
Auto |
||
|
White Balance |
Auto |
||
|
Lens |
2.1mm installed |
||
|
Video Output |
1.0V p-p (75? BNC) |
||
|
Power Supply |
3.6 – 5.5V DC |
||
|
Power Consumption |
120mA |
||
|
Dimensions |
22 X 20mm |
||
|
Weight |
12g |
||
|
Operating Temperature |
-15 to 60° C |
