AOMWAY FPV 5.8G 1000mw Transmitter Receiver TX +TX VTR & VTX 15CH Telemetry Fatshark ImmersionRC Compatible

AOMWAY FPV 5.8G 1000mw Transmitter Receiver TX +TX VTR & VTX 15CH Telemetry Fatshark ImmersionRC Compatible

Descriptions:
- This is the first 5.8G solution support both the  Fatshark/ImmersionRC(airwave/NexwaveRF)  7-channel and Chinese-brand 8-channel.
- The latest 500mw version with improved power solution and support 5V and 12V(same as input voltage) output cameras now

Specatations:
- Frequency: 5.8G wide-band FM video/audio tx
- Power: 1000MW/30.5dBm
- Channels:   2 modes:5740-5860MHz(7-channel)/5705-5925MHz(8channel)
- 15 channels total
- Weight: 17g only
- PAL/NTSC supported
- Sterieo audio: L/R audio channe;
- Input Voltage:9-16v
- antenna connector: SMA





The latest Rx with improved power solution and support wide range power input 9-16v, 2-4 cell lipo are supported.
- Weight: 17 grams without antenna
- Size: 55 x 27x11mm
- Input voltage range: 9 - 16 v

Receiver Specification:
- Weight:116g
- Size:80*60*20mm
- Input Voltage: 7V-16V
- Dual frequency:5740-5860MHz  for Fatshark /  5705-5945MHz Universal
- 15 Channels:CH-1  7channel / CH-2  8channel
- Audio: dual channel stereo output
- AV video output: 2 AV output

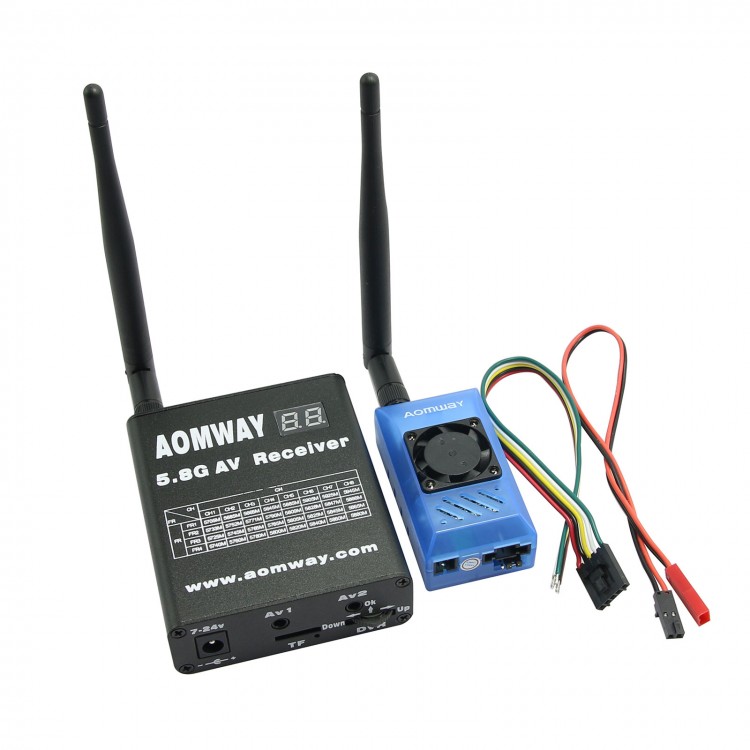

Content of the package:
- 1 x 1000mW 5.8Ghz VTX
- 1 x 5.8G Receiver
- 1 x 5.8GHz 4 dBi omidirectional antenna
- 1 x Connector and cable set
