AOMWAY FPV 5.8G 500mw Transmitter TX VTX 15 CH Telemetry Compatible with Fatshark ImmersionRC

AOMWAY FPV 5.8G 500mw Transmitter TX VTR & VTX 15 CH Telemetry Compatible with Fatshark ImmersionRC

Descriptions:
- This is the first 5.8G solution support both the  Fatshark/ImmersionRC(airwave/NexwaveRF)  7-channel and Chinese-brand 8-channel.
- The latest 500mw version with improved power solution and support 5V and 12V(same as input voltage) output cameras now



Specatations:
- Frequency: 5.8G wide-band FM video/audio tx
- Power: 500MW/26.5dBm
- Channels:   2 modes:5740-5860MHz(7-channel)/5705-5925MHz(8channel)
- 15 channels total
- Weight: 17g only
- PAL/NTSC supported
- Sterieo audio: L/R audio channe;
- Input Voltage:7-16v
- Current: 220ma/12v
- antenna connector: SMA





The latest Rx with improved power solution and support wide range power input 6-16v, 2-4 cell lipo are supported.
- Weight: 17 grams without antenna
- Size: 43 x 24mm
- Input voltage range: 6 - 16 v

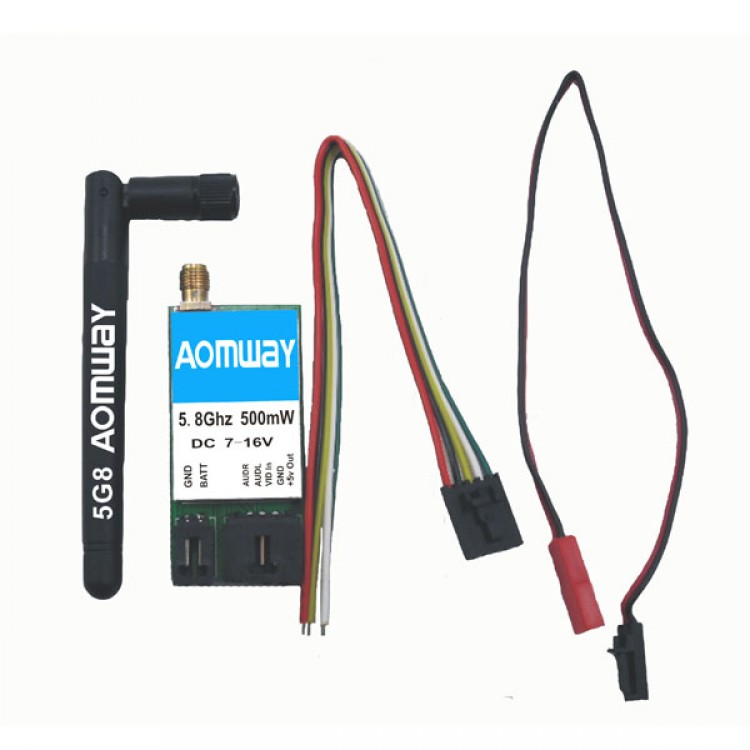

Content of the package:
- 1 x 500mW 5.8Ghz VTX
- 1 x 5.8GHz 4 dBi omidirectional antenna
- 1 x Connector and cable set
