AOMWAY FPV 5.8Ghz 200mW 32CH Wireless AV Transmitter + Receiver FPV Data TX RX

Availability: In stock, usually dispatched in 1 business day

Quantity	3+ units	10+ units	30+ units	50+ units	More
Price /Unit	$85.16	$83.42	$80.82	$77.34	Contact US

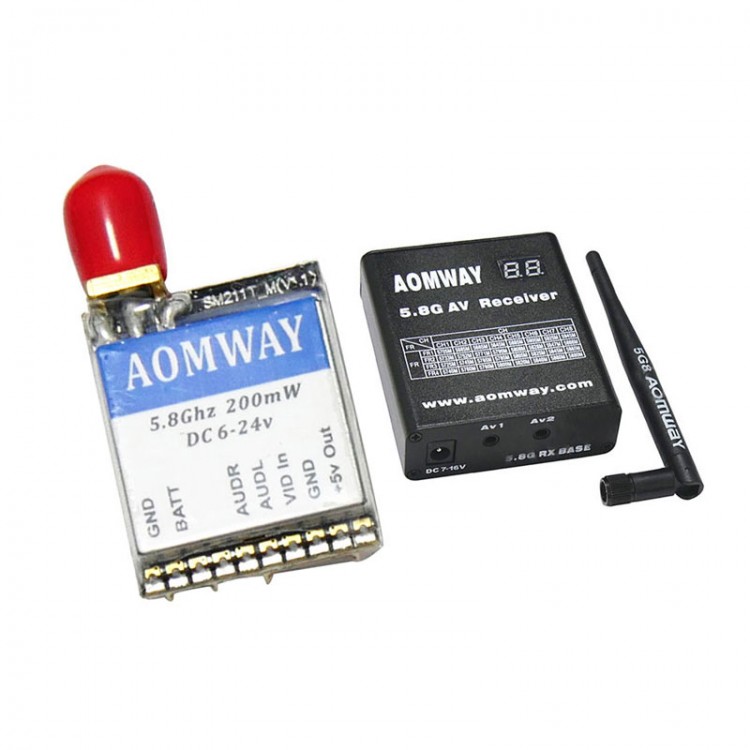

AOMWAY FPV 5.8Ghz 200mW 32CH Wireless AV Transmitter + Receiver FPV Data TX RX

Description:

- Brand Name: Aomway

- Item Name: Wireless AV Transmitter Module

- Transmitted Power: 200mw 23dbi

- Channel:32 CH

- Operating Voltage: DC6-24V

- Current: 170mA

- Dimension: 26*20*8mm

- Weight: 6g (not included the antenna)

- Uilt-in four frequency optional: 5740-5860MHz / 5705-5925MHz

5725-5865MHZ / 5733-5866MHZ

Suitable Camera: Aomway HD Mini 1 / 3''CMOS FPV Camera Lens Module 2.8 1.25 * 5p JST Port

Features:

- 5.8G broadband FM synchronization of audio and video transmission.

- Stereo, left and right channel independent.

- TV system PAL / NTSC.
- DVR function: without

Package Included:

- 1x Transmitter
- 1 x receiver

- 2 x 5db antenna

- 1x Signal cable

- 1x DC cable
