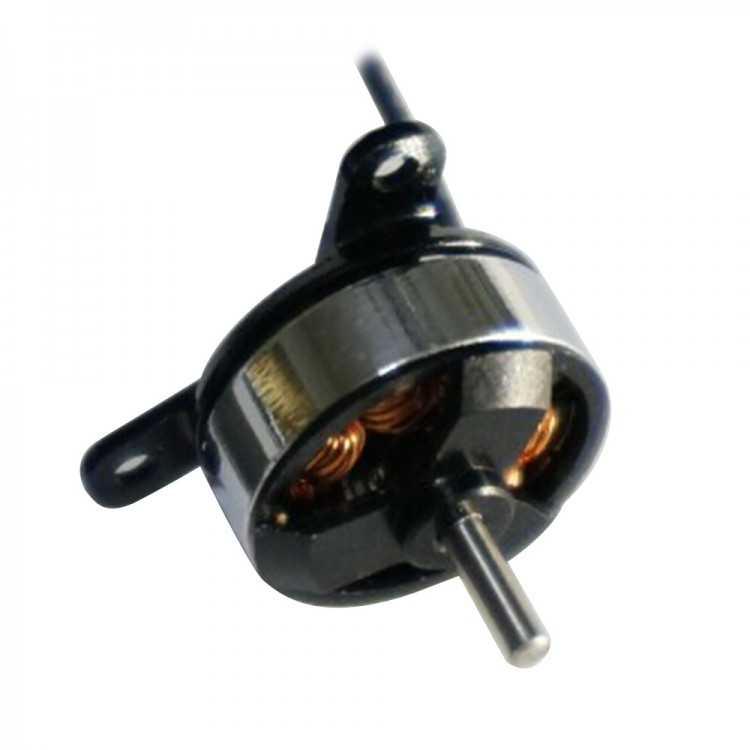

AP03 7000KV Micro Brushless Motor for Aircraft Airplane RC Models Helicopter
Specification:
- Item:AP03 Motor
- KV: 7000rpm/v
- Lipo Range: 1S 3.7V
- Suggested prop: 3020
- Max current: 3A
- Burst current (10sec): 4A
- Weight: 3.1g (including mount and wire)
- Shaft: 1.5mm
- Shaft length: 6mm
- Dimensions : 13 x 10mm
- Usage:For 30g 3D airplane and 60g normal flying.
Test data:
- 3020 prop (Recommended)
- Voltage: 3.7V
- Current: 2.1A
- Thrust: 44g
- Voltage: 3.5V
- Current: 1.9A
- Thrust: 40g
- Voltage: 4.0V
- Current: 2.4A
- Thrust: 50g
Features:
- High quality micro motors.
- Precision wound with silver-copper wire and ultra hard-press laminations.
- Extreme performance and efficiency for your micro plane.
Package Included:
- 1 x AP-03 7000kv Micro 3.1g Brushless Motor
