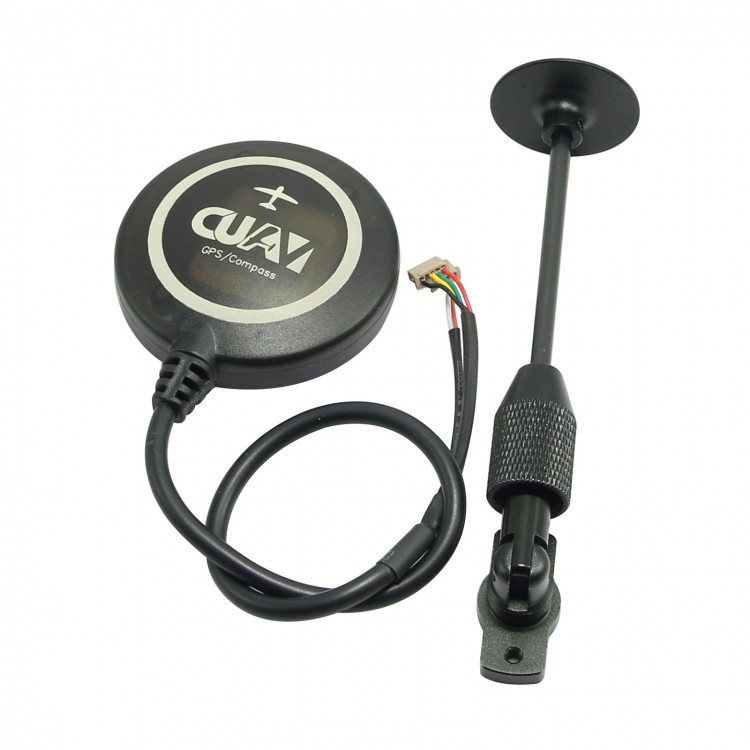

APM ULBOX NEO-6M GPS Module High Precision for Multicopter FPV Photography

APM ULBOX NEO-6M GPS Module High Precision for Multicopter FPV Photography

Description:
- The new version GPS data cable interface is DF13 gluey shell, has lock up buckle function. If you don't want it locked,  please chop off the triangle lock catch
- If it can not match with old version socket, please cut the protrude part open by knife
- This GPS wires are all terminal interface of DF13, if you change to gluey shell, you need to use it with DF13 gluey shell.
- Built in electric compass version can be used at APM 2.5/ 2.6, compatible with PIX flight control
- 2.5 needs to be cut off built in electric compass jumping cable

GPS cable definition:
- Red vcc        Black gnd
- Green RX     Yellow  TX

Compass cable definition:
- Orange  SCL    White  SDA

U-BLOXNEO-6M
- Realizing the super high performance of u-blox 6 positioning function.
- Specially designed for low consumption and low cost
- Smart power management is a breakthrough focusing on low consumption

U-BLOX 6 positioning engine:
- Tracking sensitivity reaches -162dBm, cold start up sensitivity reaches -145dBm
- Quicker capturing speed, with AssistNow Autonomous function
- With power management
- GPS/ SBAS mixed type engine(WAAS, EGNOS, MSAS)
- Anti interference technology

- Easy to integrated with u-blox wireless module
- A-GPS: AssistNow Online and AssistNow Offline service, meet OMA SUPL specification
- Back compatible: can be easily cahnge from NEO-5 series or NEO-4S
- Adopting reliable LCC sealing
- Compatible with u-blox Android GPS
- Based on ISO/TS 16949 certification request
- Quality test meet the ISO 16750 standard
