APM V2.8.0 Flight Controller without Compass with Ublox NEO-7N GPS & Holder for FPV Quadcopter Mulicopter

APM V2.8.0 Flight Controller without Compass with Ublox NEO-7N GPS & Holder for FPV Quadcopter Mulicopter

APM V2.8.0 description:
- This version eliminates the 1.0mm 6P SM06B GPS interface of V2.52 old version, and change it into DF13-4P I2C external compass interface.
- Put DF13-5P GPS interface with external compass interface, convenient for the connection of GPS and externalcompass.
- V2.52 I2C interface changes to multifunctional MUX interface
- Modified version added isolation resistor, when the OSD interface used with telemetry, the interfaces is effectively avoided
- V2.52 version 3.5V power supply adopts IPS79133, 6V withstand voltage, output current 100mA, need to supply power for six IC, slightly inadequate power supply ability, easy to be burnt dwon. The new version adopts US LP2985-3.3, 16V withstand voltage, more reliable, redcucing the possibility of Bad Gyro health

APM V2.8.0 Flight Controller
- Without compass
- Pin: Side pin
- Needle: curved
- Power supply: LP2985-3.3
- Max voltage: 16V
- Add a 47uF tantalum capacitor
- Port: MUX (UART0, UART2, mnnI2 and OSD are optional, OSD is the defaulted output)

Jumper cap choose:
- Built-in compass: plug the jumper cap in the MAG pin header.
- External compass: pull up the jumper cap from the MAG pin header.

Ublox Neo-7N GPS Specifications:
- The newest high precision GPS with electronic compass, small volume 35*35mm dimension
- Suitable for flight control such as  APM, Pixhawk, Jade Rabbit, MWC
- With shell, the cables are fixed and cannot be moved, can connect with APM
- Internal core of new version surpasses 6M, compare favourably with 6H
- Cold start positioning time is less than 40 seconds
- Warm start positioning time is less than 5 seconds
- Positioning accuracy is 2m
- NEO-7N is of high performance, quick research, high positioning precision, very rstable

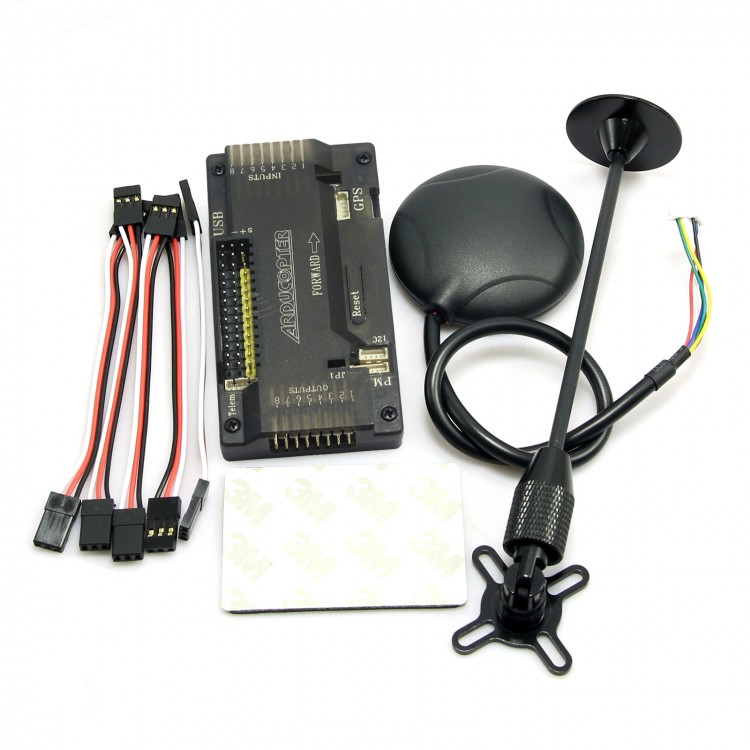

Package Listing:
- APM V2.8.0 Flight Controller
- Ublox Neo-7N GPS
- GPS Holder
