APM2.8 ArduPilot APM Flight Controller without Compass+ Ublox 6H GPS + 3DR Telemetry + XT60 Module for FPV Multicopter

APM2.8 ArduPilot APM Flight Controller without Compass+ Ublox 6H GPS + 3DR Telemetry + XT60 Module for FPV Multicopter

APM V2.8.0 description:
- This version eliminates the 1.0mm 6P SM06B GPS interface of V2.52 old version, and change it into DF13-4P I2C external compass interface.
- Put DF13-5P GPS interface with external compass interface, convenient for the connection of GPS and externalcompass.
- V2.52 I2C interface changes to multifunctional MUX interface
- Modified version added isolation resistor, when the OSD interface used with telemetry, the interfaces is effectively avoided
- V2.52 version 3.5V power supply adopts IPS79133, 6V withstand voltage, output current 100mA, need to supply power for six IC, slightly inadequate power supply ability, easy to be burnt dwon. The new version adopts US LP2985-3.3, 16V withstand voltage, more reliable, redcucing the possibility of Bad Gyro health

APM V2.8.0 Flight Controller
- Without compass
- Needle: curved
- Power supply: LP2985-3.3
- Max voltage: 16V
- Add a 47uF tantalum capacitor
- Port: MUX (UART0, UART2, mnnI2 and OSD are optional, OSD is the defaulted output)

Jumper cap choose:
- External compass: pull up the jumper cap from the MAG pin header.

Ublox Neo-6H GPS Specifications:
- Main chip: Ublox-LEA-6H
- With Flash and temperature compensation
- With fast satellite searching speed and high precision
- Compatible with APM serial port and I2C port
- Includes round plastic shell and GPS folding support

3DR Radio Telemetry version:
- Band: 915MHz or 433MHz
- Power: 100mW
- Low noise filter: no
- Data transmission: Time division duplex hal
- Data encrypt support: no
- Ground communication distance: 300-800m

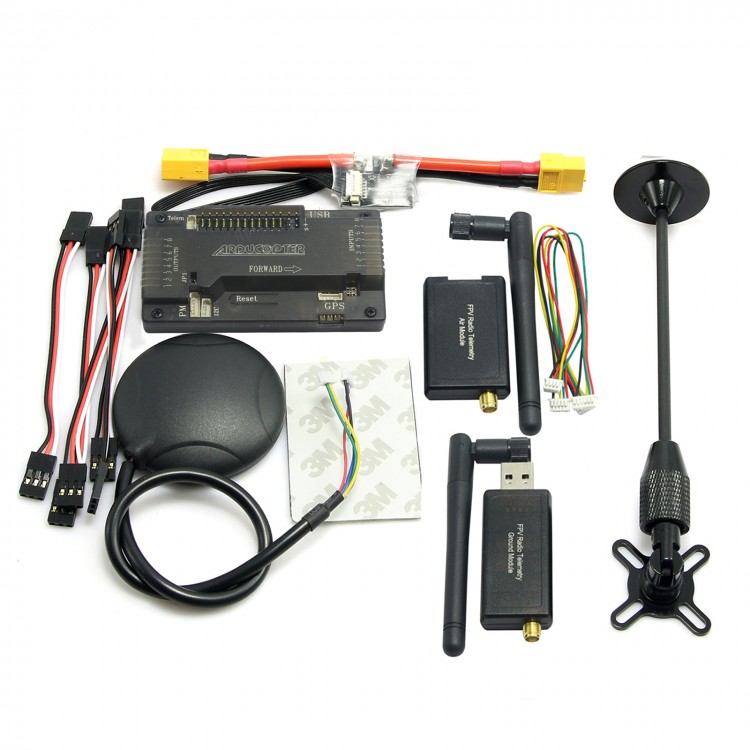

Package Listing:
- 1  x  APM V2.8.0 Flight Controller
- 1  x  3DR Radio Telemetry(915MHz or 433MHz)
- 1  x  TX60 APM Power Supply Module
- 1  x  Ublox Neo-6H GPS
- 1  x  GPS Holder
