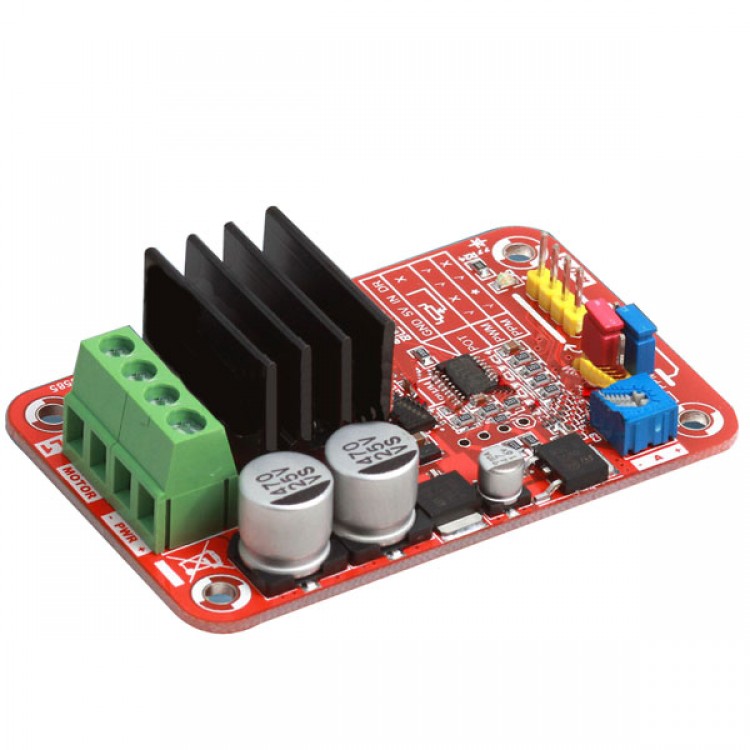

APO-L1 3 Function DC Brush Motor + PWM Controller + ESC + Speed Controller 240W 12V 24V
Description:
- This module can be controlled by singlechip PWM, aerial remote controller and potentiometers
Application:
- Model ESC, smart car, motor speed controller, reverse control, semiconductor refrigerator control, hollow cup motor control
Rated Parameters:
- Rated input voltage: APO-S1 5V-12V/DC
APO-L1 12V-24V/DC
- Standby current: <200mA
- Controlling mode: ESC MODE, SINGLECHIP MODE, POTENTIOMETER MODE
- Dimension: 70*45*23mm
Limit parameters:
- Limit input voltage range: APO-S1 3V-15V/DC(MAX)
APO-L1 11V-30V/DC(MAX)
- Limit output current range: 10A-+0.5A(MAX)
