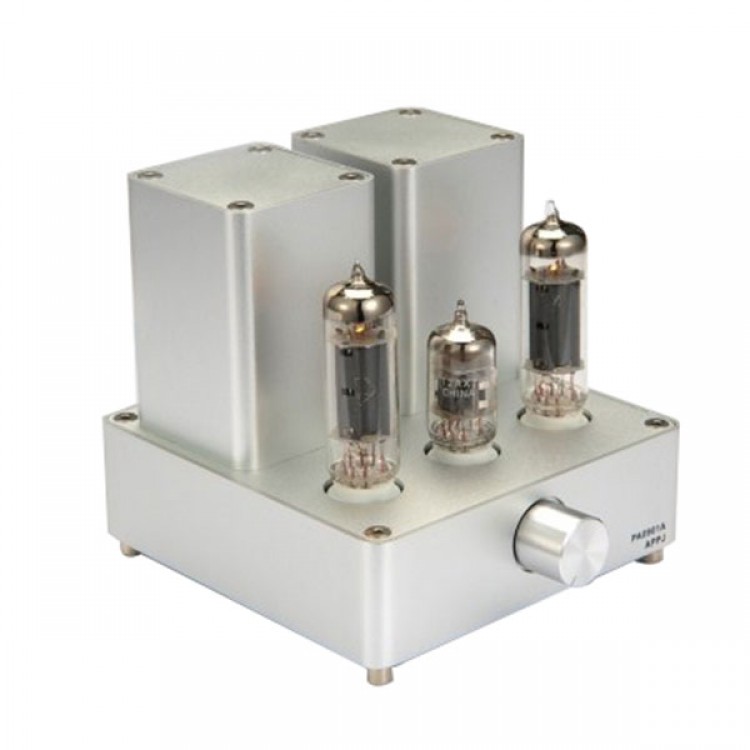

APPJ PA0901A EL84+12AX7 Mini Tube Amplifier Original Miniwatt N3 Black/ Silver

Availability: In stock, usually dispatched in 1 business day

  • Price:$298.37
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $0.00 $0.00 $0.00 $0.00 Contact US
Quantity:
Buy it now Add cart

You might like

Single-end Class A 6F3+300B Tube Amplifier Kit Power Amplifier DIY Parts

Single-end Class A 6F3+300B Tube Amplifier Kit Power Amplifier DIY Parts

$777.00

(0)
APPJ 6J1 6P1 Mini Vacuum Tube Amplifier Stereo HiFi Desktop Power Amp 3W+3W

APPJ 6J1 6P1 Mini Vacuum Tube Amplifier Stereo HiFi Desktop Power Amp 3W+3W

$112.08

(0)
Best NS-02E Amplifier Stereo Vacuum Tube Headphone Class A HiFi Audio Preamp

Best NS-02E Amplifier Stereo Vacuum Tube Headphone Class A HiFi Audio Preamp

$58.84

(0)
HiFi Fever APPJ mini2013 6J1+6P1 Z11-EI48*24 Output Transformers (Original miniwatt) Mini tube Amplifier AMP

HiFi Fever APPJ mini2013 6J1+6P1 Z11-EI48*24 Output Transformers (Original miniwatt) Mini tube Amplifier AMP

$197.84

(0)
APPJ PA1502A Class A Tube Headphone Amplifier 6P6P 6N4 Tube Hifi Audio Amplifer Black

APPJ PA1502A Class A Tube Headphone Amplifier 6P6P 6N4 Tube Hifi Audio Amplifer Black

$189.90

(0)
AIBBC Audio TA-200 Tube Headphone Amplifier USB DAC Decoder Bluetooth DAC ES9038DSD w/ 12AU7-S Tube

AIBBC Audio TA-200 Tube Headphone Amplifier USB DAC Decoder Bluetooth DAC ES9038DSD w/ 12AU7-S Tube

$260.89

(0)
AIBBC TA100 Hifi Preamp Tube Headphone Amplifier XMOS+ES9018S DAC DSD Output XLR Bluetooth APTX 32Bit 384K Deluxe Version

AIBBC TA100 Hifi Preamp Tube Headphone Amplifier XMOS+ES9018S DAC DSD Output XLR Bluetooth APTX 32Bit 384K Deluxe Version

$439.22

(0)
T1se 24BIT DSD USB Decoder DAC HIFI Headphone Amplifier Electron Tube for Audio Black

T1se 24BIT DSD USB Decoder DAC HIFI Headphone Amplifier Electron Tube for Audio Black

$249.00

(0)
APPJ PA0901A EL84+12AX7 Mini Tube Amplifier Original Miniwatt N3 Black/ Silver

Description:
- APPJ PA0901A EL84+12AX7 Mini tube Amplifier Original miniwatt N3 Black
- A minimalist integrated amplifier with one pair of RCA inputs and a passive volume control to attenuate the output of its enhanced classical tube circuit comprised of a 6N4 (12AX7 or ECC83) twin triode feeding a single 6P14 (EL84 or 6BQ5) per channel, and also with our advanced switching power supply to deliver a 3.5 watts output per channel
- Default sending black, if you need silver color, please leave us a message

Tubes
- Driver - 6N4 (12AX7 or ECC83)
- Power - 6P14 (EL84 or 6BQ5)

Specifications:
- Power Output: 3.5W+3.5W @ 8 ohms
- Frequency Response: 30-40Khz (+-1db)
- Input Sensitivity: 500mV
- Signal-to-Noise Ratio: -80dB / 3.5W
- Residual Noise < 1mVac
- Input AC Voltage: 100-250Vac
- Power Consumption: 38W
- Input Impedance: 50K ohms
- Output Impedance: 8/6/4 ohms (Japan Z11-EI48*24 Output Transformers)
- Dimensions: 130mm (w) x 130mm (d) x 130mm (h)
- Weight: 2.6kg
- Input: RCA Jacks
- Output: Banana Jacks
- AC: Standard IEC Jack with Fuse protection (2A Fuse)
