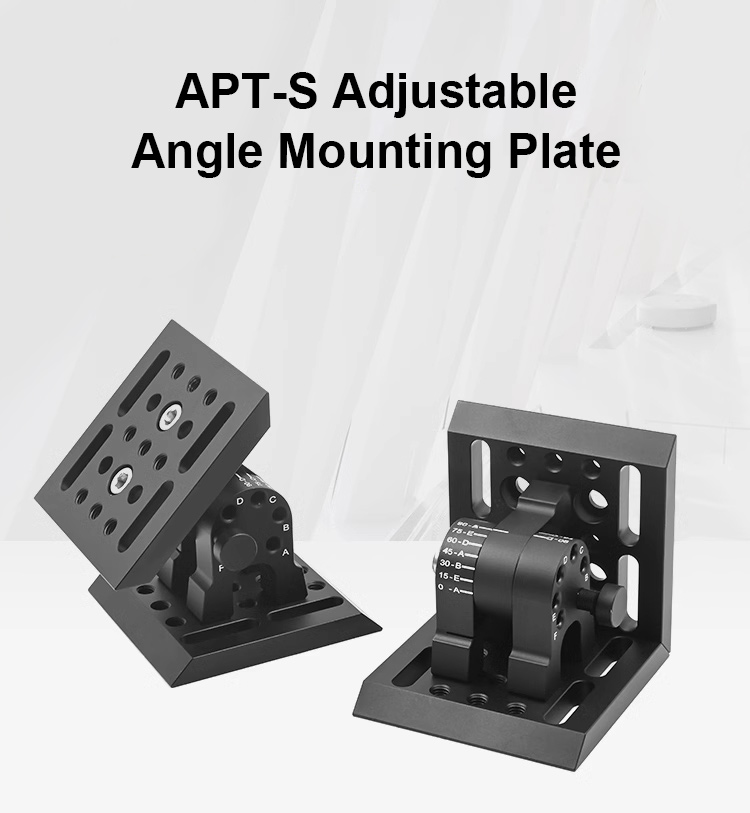

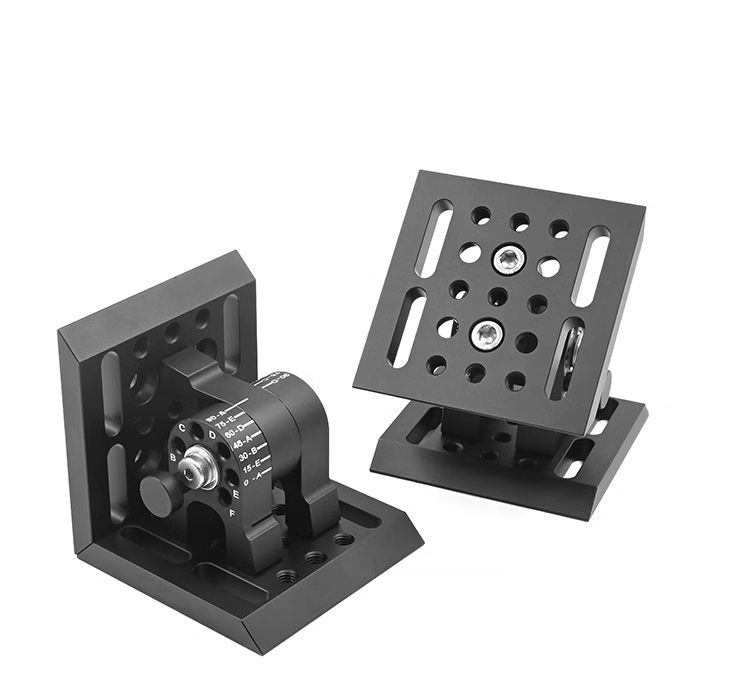

APT-S Adjustable Angle Mounting Plate Provides 180° of Movement for Opto-mechanical Devices

APT-S Adjustable Angle Mounting Plate Provides 180° of Movement for Opto-mechanical Devices

Description:
APT-S Adjustable Angle Mounting Plate provides a full 180° of movement at 15° increments. The mounting platform can be positioned at 13 discrete positions utilizing the included locking pin. This design allows it to meet the positioning and securing needs of different application scenarios, providing greater flexibility and precision.

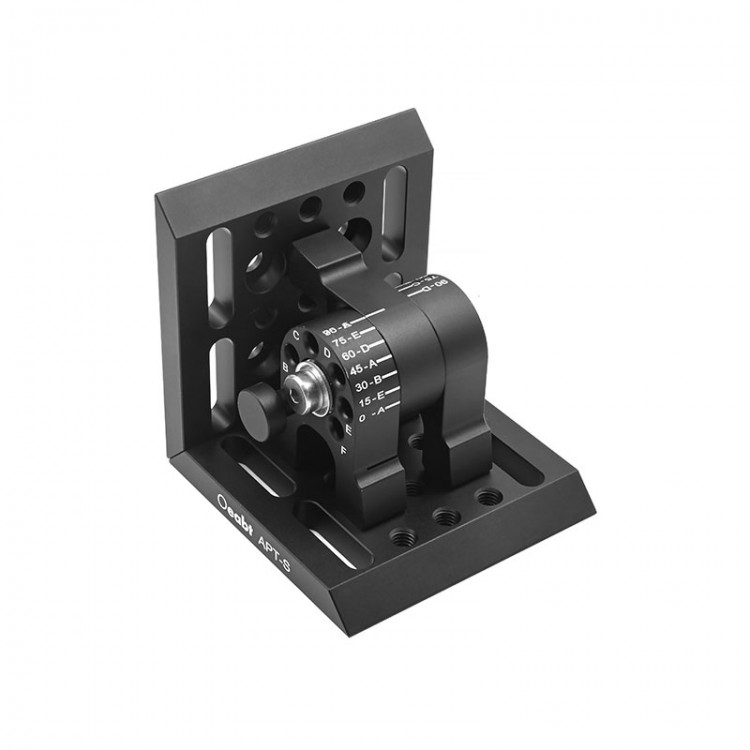

Engravings on the mount denote the angular positions possible and the associated pin location for each position.

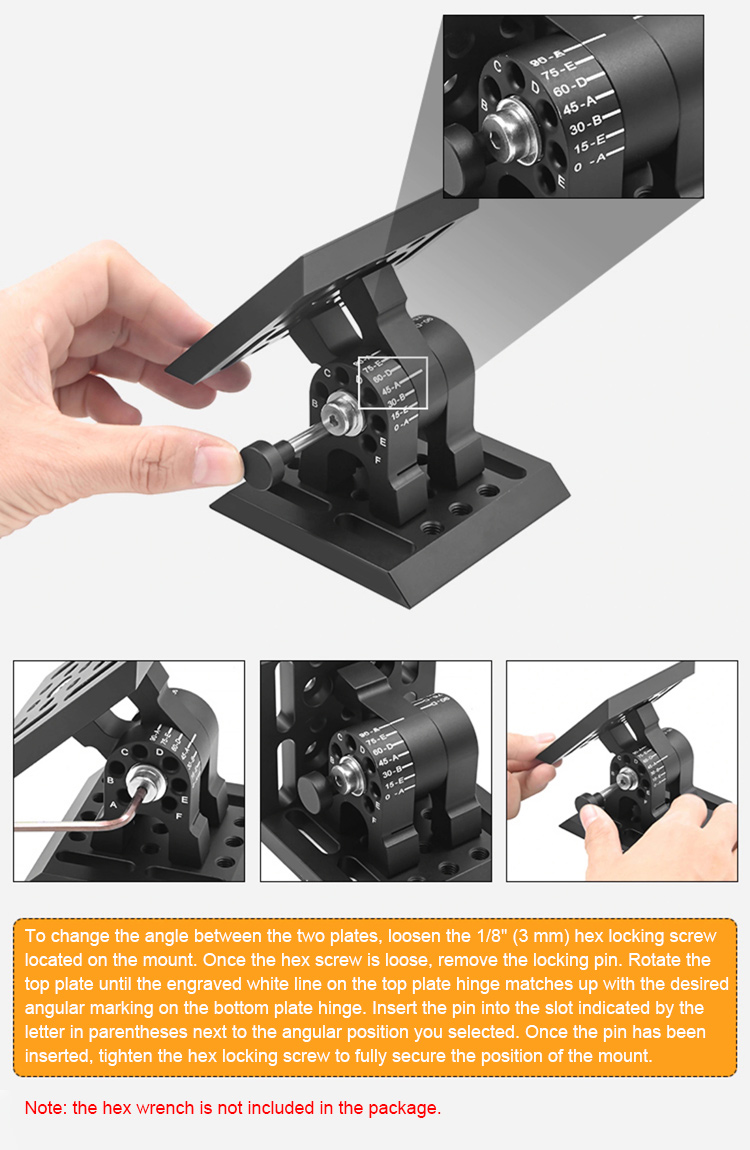

To change the angle between the two plates, loosen the 1/8" (3 mm) hex locking screw located on the mount. Once the hex screw is loose, remove the locking pin. Rotate the top plate until the engraved white line on the top plate hinge matches up with the desired angular marking on the bottom plate hinge. Insert the pin into the slot indicated by the letter in parentheses next to the angular position you selected. Once the pin has been inserted, tighten the hex locking screw to fully secure the position of the mount.

In addition to the 13 discrete positions available, the plate can be oriented at any angle by tightening the hex locking screw. Attention: The load capacity is limited to 2kg/4.41lb if the locking pin is not used.

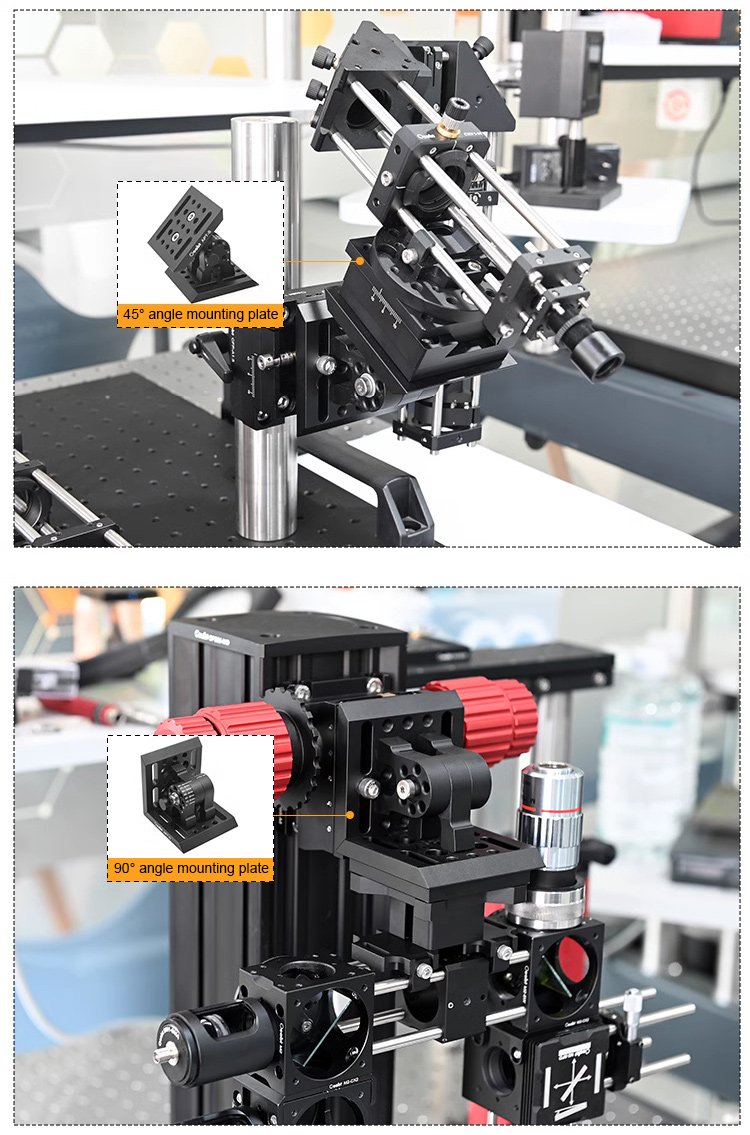

The top and bottom plates of APT-S contain M6 mounting holes and M6 slots, enabling users to choose the appropriate location and method of mounting their opto-mechanical devices.

Features:

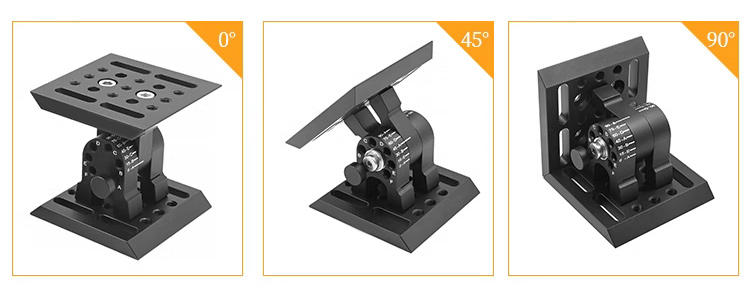

* 180° of discrete or continuous positioning
* Lockable at 13 locations, at 15° increments
* A removable locking pin can be used to lock the 13 locations
* A hex locking screw is used
* This adjustable angle plate contains an array of M6 mounting holes and M6 slots on the top and bottom plates

Specifications:
* Model number: APT-S

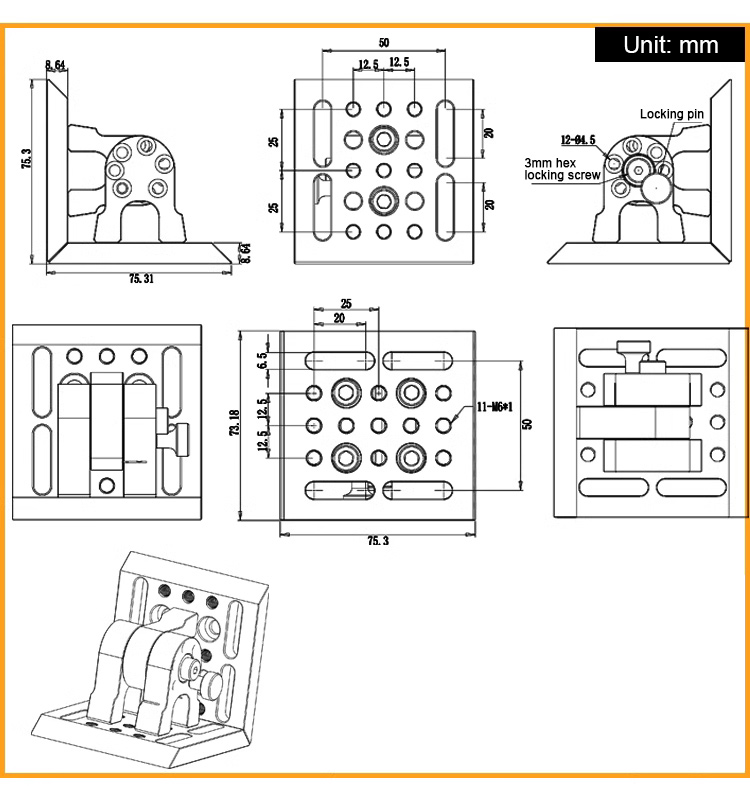

* Specifications: 75.3mm x 75.3mm x 73.2mm/2.96" x 2.96" x 2.88"
* Adjustment angle: 0~180°, angle switching in 15° increments
* Screw hole types: Top plate: M6*9 places, M6*4 places (countersunk), 06.1*20mm*4 places (through slots); Bottom plate: M6*11 places and 06.1*20mm*4 places (through slots)
* Weight: 298.3g/0.66lb
* Material: 7075 aluminum alloy

Package Included:
* 1 x Angle Mounting Plate

Packaging Details:
* Weight: 0.4kg

Note:
* Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
