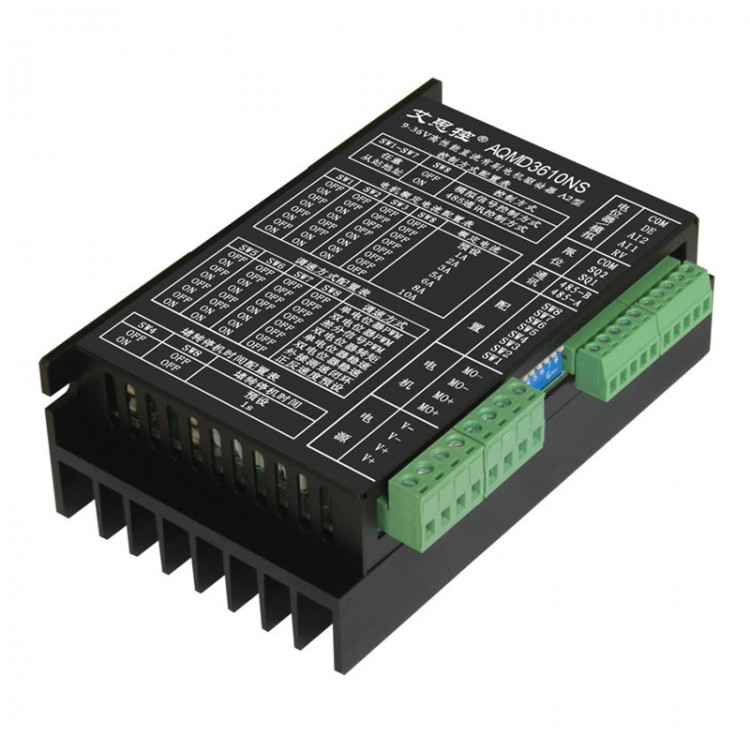

AQMD3610NS DC Motor Driver DC Motor Speed Control w/ USB-485 Current PID Control For 12/24/36V 10A

AQMD3610NS DC Motor Driver DC Motor Speed Control w/ USB-485 Current PID Control For 12/24/36V 10A

Features:
- Maximum output power: 36V 360W; 24V 240W; 12V 120W
- Dimensions: 13.6 x 8.2 x 4.5cm/5.4 x 3.2 x 1.8" (aluminum alloy shell)
- Start, brake, and reverse smoothly and quickly
- Various applications of speed stabilization, position limit and torque limit
- Automatic flow reduction and stall protection for overload and stall
- Reversing automatic soft brake and speed regulation without noise
- Potentiometer, analog quantity and 485 control
- Used to control DC brushed motors

Principle:
This driver uses the leading accurate detection technology of motor loop current, self-detection technology of brushed DC motor speed, regenerative current constant current braking (or brake) technology and powerful PID adjustment technology, which can perfectly control the motor start and brake ( Brake), reversing process and blocking protection. The response time of motors is short, and the recoil is small; the output current is monitored in real time to prevent overcurrent, which effectively protects the motor and the driver. The rated current of motors can be configured through the DIP switch or the serial port, so that the motor starting, braking, and stall current can be limited to the rated current range of the motor, which is efficient and safe.

Parameters:
- Control signal type: potentiometer, 0-10V analog quantity, logic level, switch quantity and RS485
- Motor control mode: duty cycle (open loop) speed regulation, torque limit control, self-test speed closed-loop speed regulation, external tachogenerator closed-loop speed regulation
- Power supply voltage range: 9-36V
- Rated current: 8A
- Maximum output current: 10A
- Multiple stream output: not supported
- Overload current limit: support
- Blocked rotor shutdown: support
- Abnormal high current shutdown: not supported
- Internal temperature measurement/overheat current limit/shutdown: not supported
- Power supply voltage measurement/overvoltage/undervoltage shutdown: not supported
- 485 protection: ESD
- Materials: The main ICs are imported with high-quality original packaging, and the other components are made in China

Functional Characteristics:
- Voltage range 9~36V, maximum load current 10A, and rated current 8A
- Single/double potentiometer, 0~10V analog signal and 5V or 24V logic level, switch, -5V to +5V differential analog signal or RS485 multiple input signals
- PWM speed regulation (voltage regulation), torque control (steady current), self-test speed / external tachogenerator closed-loop speed regulation (steady speed) multiple speed regulation methods
- Motor current PID adjustment. Maximum load/brake current can be configured, motor start/brake/short commutation time, and small impact force
- Forward and reverse two-way speed regulation. The forward/reverse speed can be preset and stored, and the start, stop and direction can be controlled by the switch/button
- Two limit switches can be connected to the positive and negative limit positions
- Motor overload and locked-rotor current limiting, to prevent over-current damage to motors, support locked-rotor limit stop
- The standard model has 485 common mode voltage protection. Support RS485 multi-site communication, support for MODBUS-RTU protocol, facilitate the control of multiple controllers (such as MCU, PC or PLC), and support communication interruption stop protection
-18KHz PWM frequency, motor speed regulation without PWM hum
- Very small PWM dead zone, only 0.5us. The effective range of PWM is 0.1%~99.9%
- ESD protection for all interfaces, which can adapt to complex on-site environment
- Thickened aluminum alloy shell with large heat sink has good heat dissipation effect
- Provide PC sample programs, which can be used to configure parameters, debug motors or secondary development
- For high-power motors (usually no-load current above 0.5A), no speed measuring device is needed. This drive can directly measure the commutation frequency of motor commutator. Based on the self-test speed function, the driver can realize locked-rotor judgment and speed stabilization function (that is, the load change causes the speed to change, and the driver will automatically adjust the speed to the previous speed)

Compatible Motors:
- A motor with a rated voltage of 36V. Suitable for motors with rated power of 200W and below or rated current below 8A to work at full capacity for a long time
- A motor with a rated voltage of 24V. Suitable for motors with rated power of 130W and below or rated current below 8A to work at full capacity for a long time
- A motor with a rated voltage of 12V. Suitable for motors with rated power of 47W and below or rated current below 8A to work at full capacity for a long time

Attention:
The driver can output a rated current of 8A for a long time. However, the rated power marked on the motor generally refers to the output power. Taking into account the workmanship loss of the motor, the motor efficiency should be considered when calculating the rated current. Rated current = rated power/rated voltage/efficiency.

Package Included:
- 1 x Set of DC Motor Driver
