| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $2,317.85 | $2,270.54 | $2,199.59 | $2,104.98 | Contact US |
5DOF Low Cost Robot Arm ROS Open Source Robotic Arm (Slave Arm) with XL430-W250-T Servo Motors
$551.16
5DOF Low Cost Robot Arm ROS Open Source Robotic Arm (Master Arm) with XL330-077-T Servo Motors
$457.01
Low Cost Robot Arm ROS Open Source Robotic Arm (5DOF Master Arm + 5DOF Slave Arm) with Servo Motors
$1,005.56

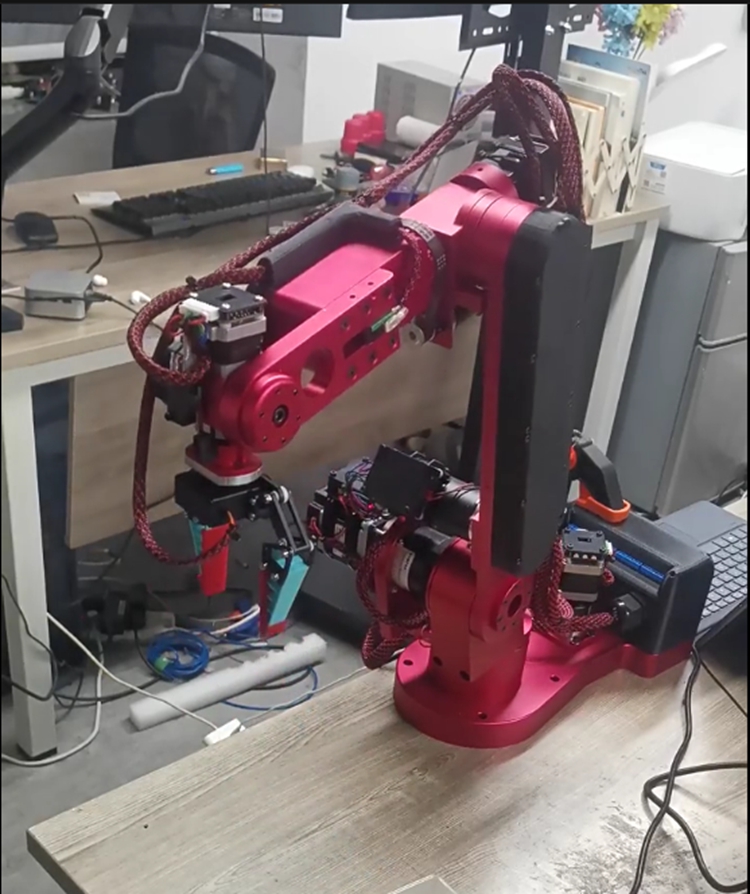

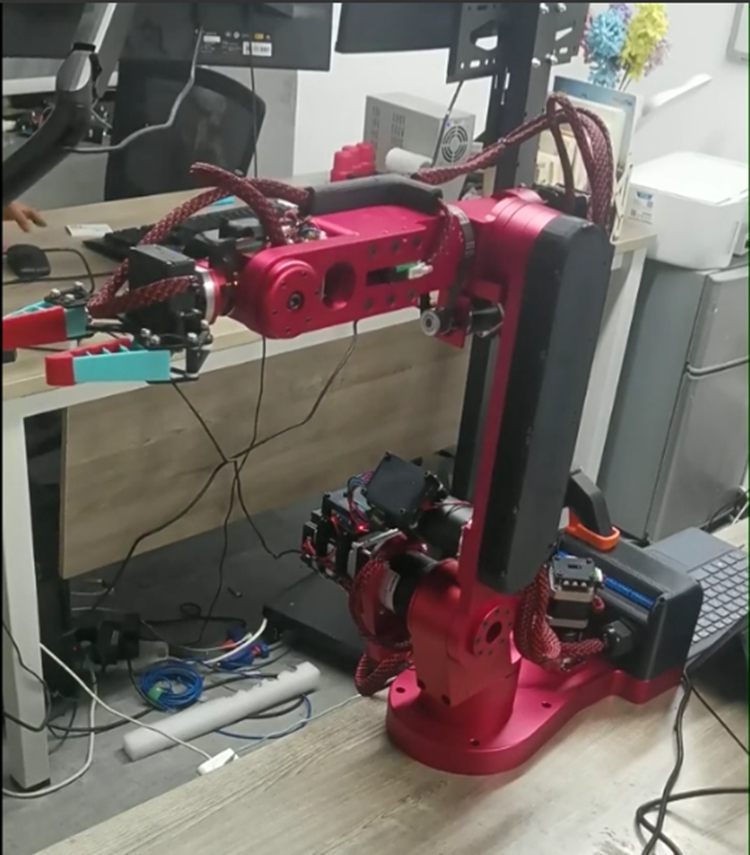

AR4 6-Axis Mechanical Arm Set + Electric Fixture Opensource Robotic Arm for ROS1/2 Moveit
Specification:
- Main controller: for Teensy 4.1 ARM Cortex-M7
- Microprocessor: for NXP i.MX RT1062 600MHz 1024K RAM
- The operating system supports for Windows + AR4 robotic arm control software/Ubuntu ROS1 moveit/ Ubuntu ROS2 moveit
- Programming language supports for Arduino/Python/C++
- Arm material: Hard aluminum alloy + PLA shell
- Power supply mode: 24V DC power supply
- Mechanical arm mass: ≤ 14KG
- Maximum power consumption: ≤ 150W
- Repetitive positioning accuracy: ≤ 1mm
- Maximum load at the end: ≤ 2kg
- Maximum forward extension distance: ≥ 62.9cm
Package Included:
- 1 x Assembled Mechanical Arm with Fixture
