AR4 6DOF Robot Arm Assembled Mechanical Arm with Motors for Programming Teaching & Industrial Uses
Features:
- AR4 6DOF robotic arm has been assembled
- 6061 aluminum alloy structure, upgraded with six closed-loop stepper motors
- The body contains mechanical structures, 6 closed-loop stepper motors (including 5 geared motors and 1 screw motor) with encoders, and 6 zero point limit switches
- The robot arm can be used for recreational, educational purposes, and small production operations
Specifications:

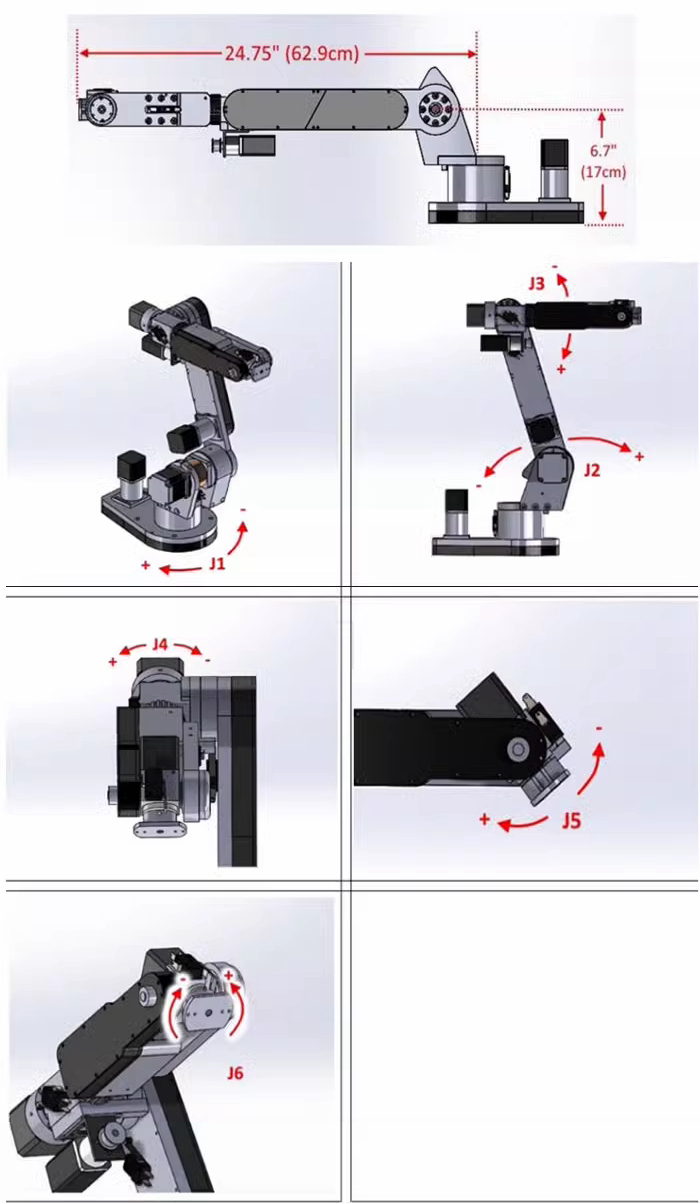

- Arm span: 24.75" (62.9 cm)
- Load: 4.15 lbs (1.9 kg)
- Accuracy: 01mm
- Repeatability: 15mm
- Robot weight (aluminum): 27lbs (12.25kg)
- Case weight: 12.5 lbs (5.6 kg)
- Maximum power consumption: 8.25A (198W)
- G.W.: 38.6 lbs (17.5kg)
Package Included:
- 1 x Robot Arm with Motors
Note:
- There is no control box, and there are many open source control systems, which can be built by customers.
- Accessories such as motor drivers, control boards, power supplies, etc. are not included.
