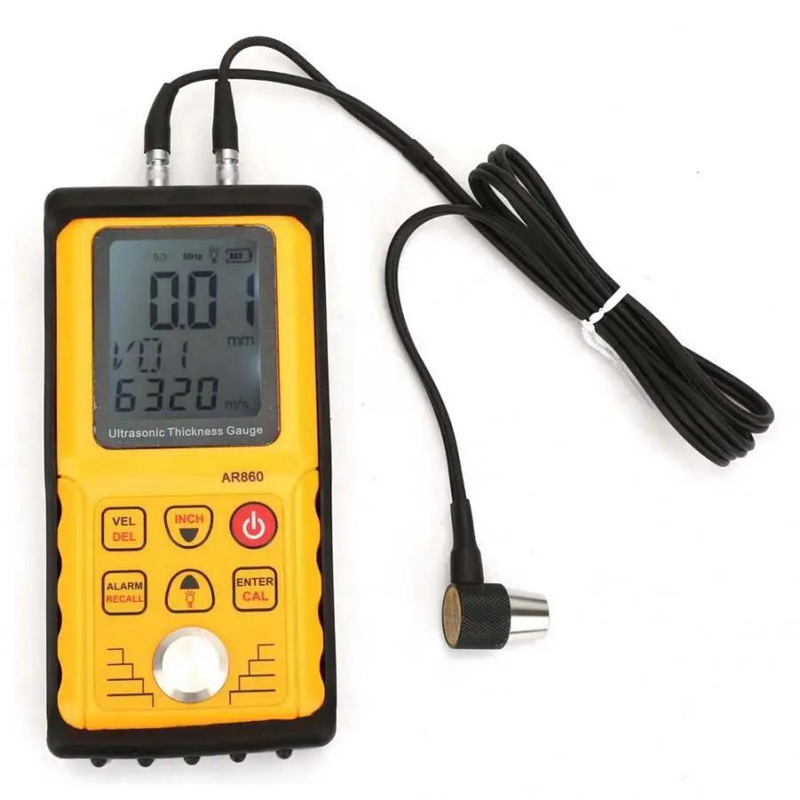

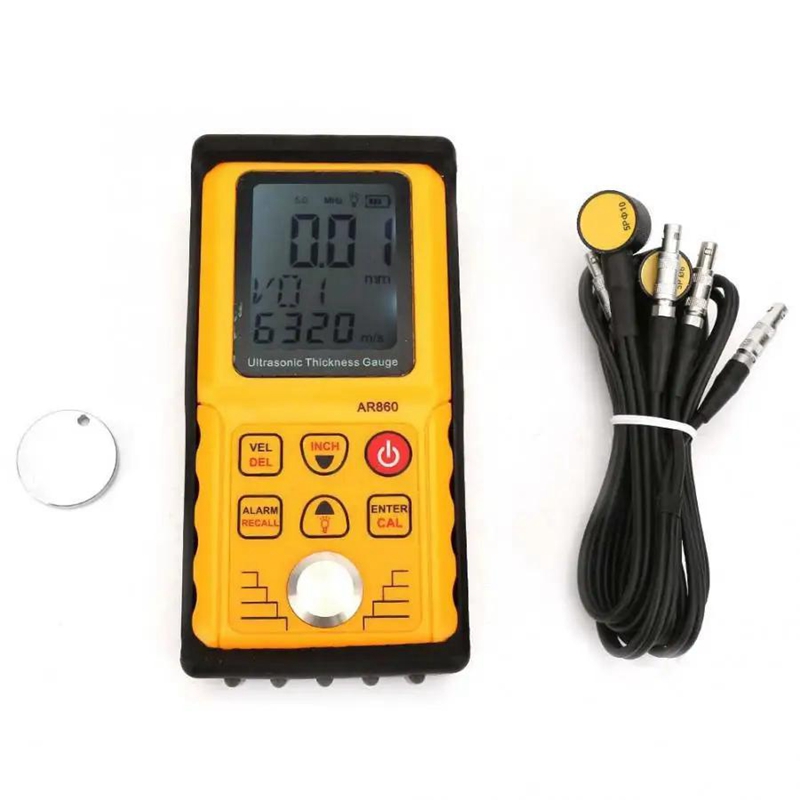

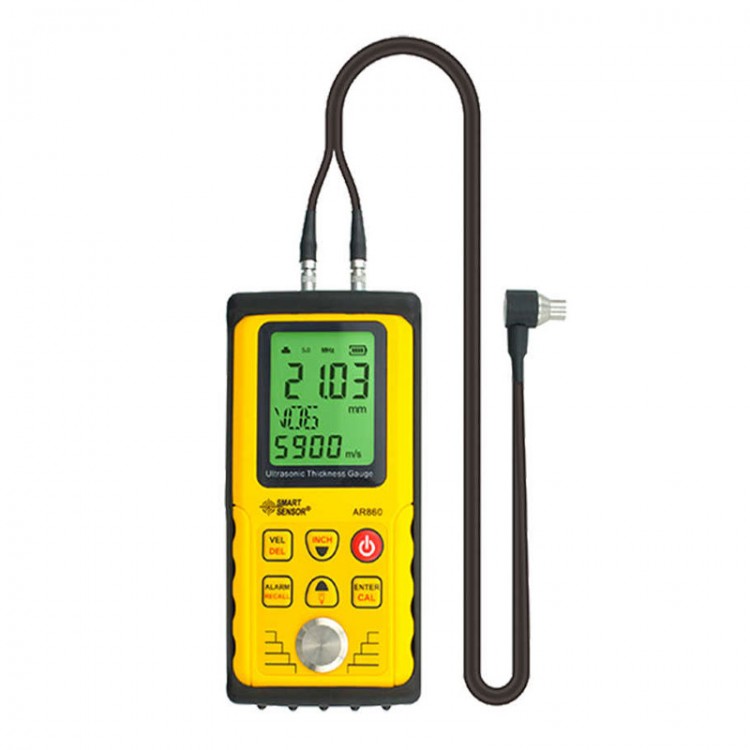

AR860 1-300mm High Precision Handheld Digital Display Ultrasonic Thickness Gauge Meter for Glass/Steel

AR860 1-300mm High Precision Handheld Digital Display Ultrasonic Thickness Gauge Meter for Glass/Steel

Description:
- The usage of an ultrasonic thickness gauge for non-destructive testing to check material properties such as thickness measurement, is now regularly utilized in all areas of industrial measurements. The ability to gauge thickness measurement without requiring access to both sides of the test piece, offers this technology a multitude of possible applications.
- Ultrasonic thickness gauge is based on the principle of ultrasonic pulse reflection for thickness measurement. When the ultrasonic pulse emitted by the probe reaches the material interface through the measured object, the pulse is reflected back to the probe, and the thickness of the measured material is determined by accurately measuring the time of ultrasonic propagation in the material. Any material that can propagate ultrasonic waves at a constant speed inside can be measured using this principle.
- Suitable for measuring the thickness of good conductors of metals (such as steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, fiberglass, and any other ultrasonic waves, capable of testing any single high-density material!

Features:

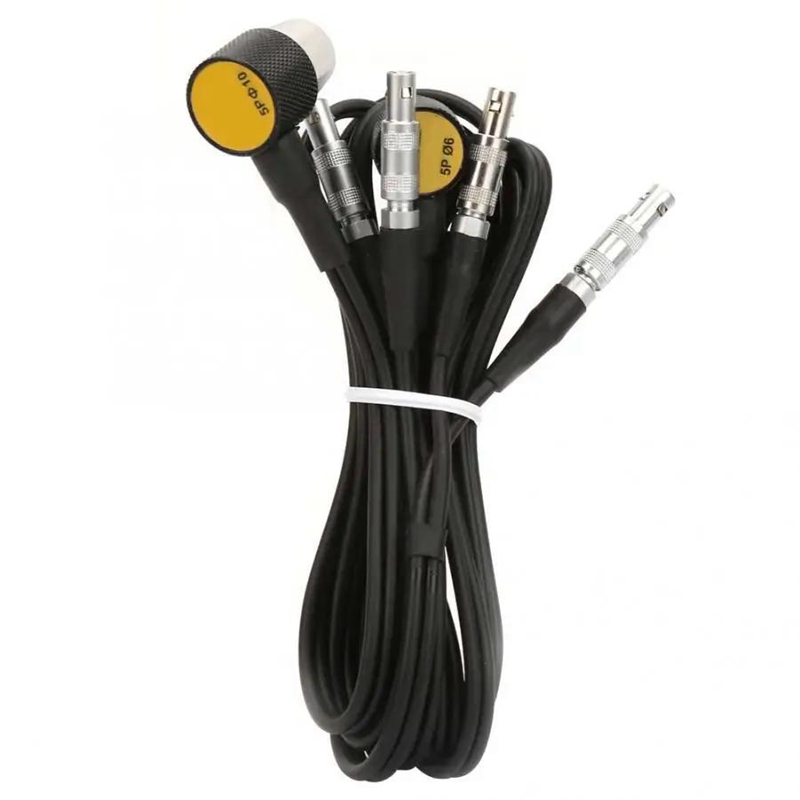

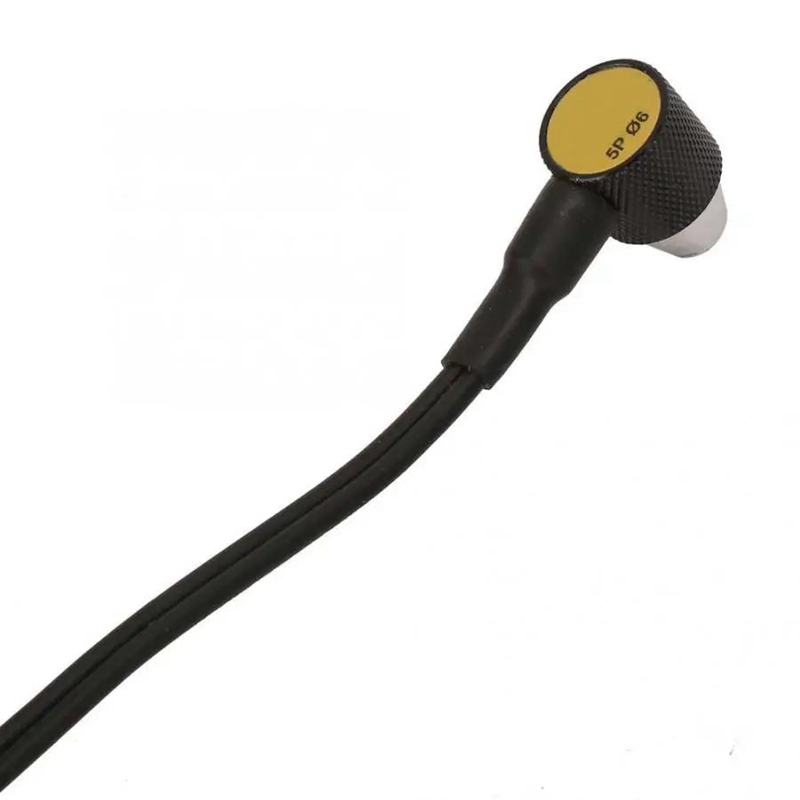

- Imported process ultrasonic probe, more sturdy and durable, ultrasonic acquisition technology, faster and more accurate measurement speed.
- When the thickness of a certain material is known, its sound velocity can be measured back to obtain accurate sound velocity. The thickness value of the known thickness test block must be precise.

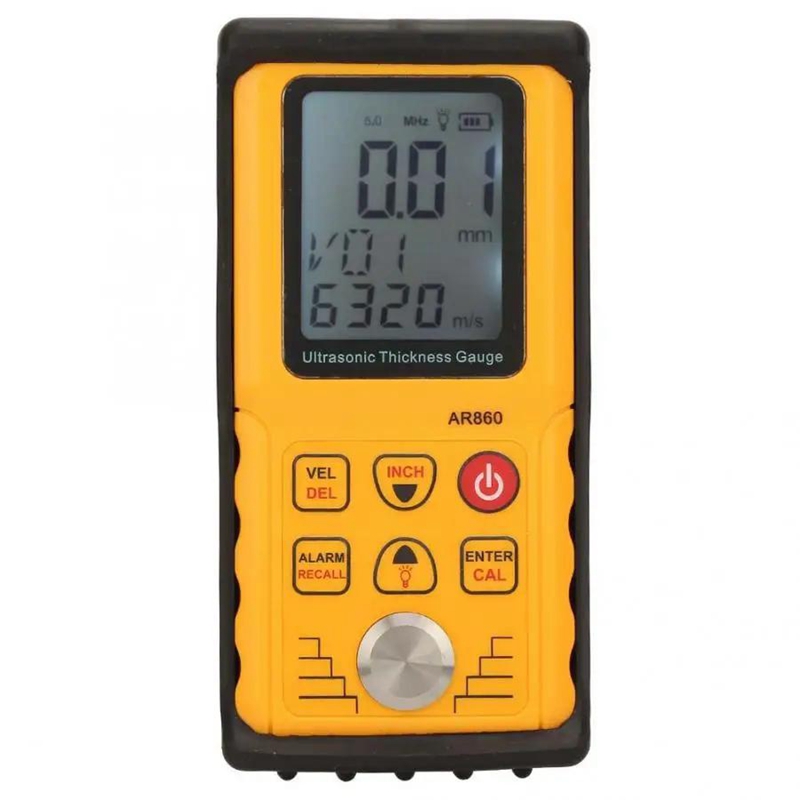

- LED backlit large screen, LCD large screen displays green high brightness backlight, clear reading, easy to cope with various dark environments.

Specification:
- Measuring range: 1.0 - 300mm
- Measuring error: ±(1%H±0.1)mm
- Resolution: (<100mm) 0.1mm
- Sound speed regulation range: 1000 - 9999m/s
- Working frequency: 5MHz/2.5MHz
- Working temperature range: 0 - 40℃
- Probe working temperature: high temperature type: 0 - 250℃ (need to be used with high temperature coupling agent, which is not included.)
- Pipe measuring lower limit: (diameter) 10mm; probe: (diameter) 20 x 3mm (steel)
- Data storage function: yes
- Reverse measurement function of sound speed: yes
- LCD backlight: yes
- Low battery indication: yes
- Automatic shutdown function: yes

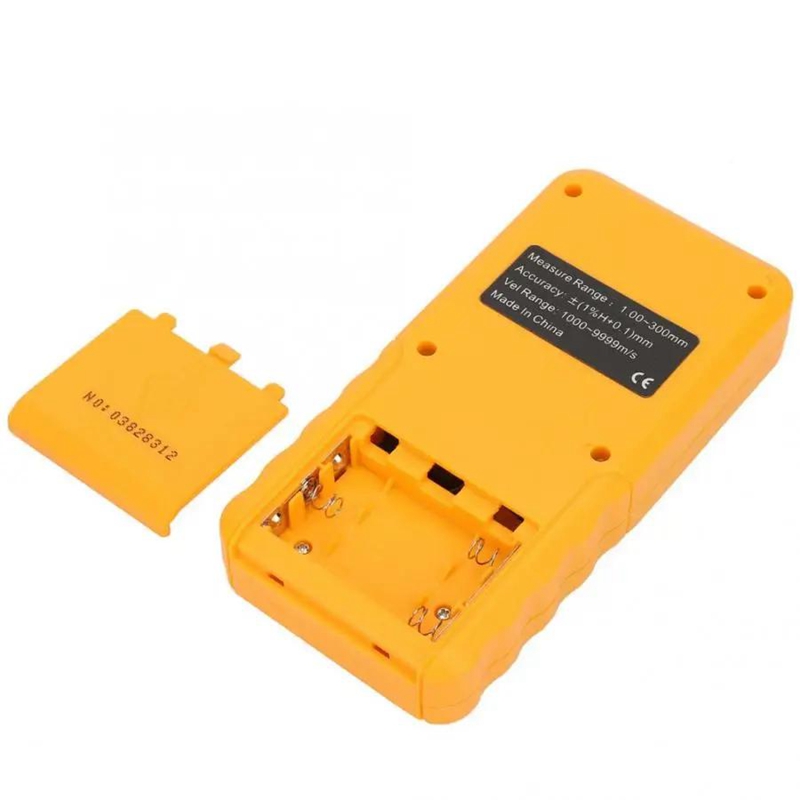

- Power supply: 3 x 1.5AAA battery (not included)
- Net weight: 275g

Package Included:

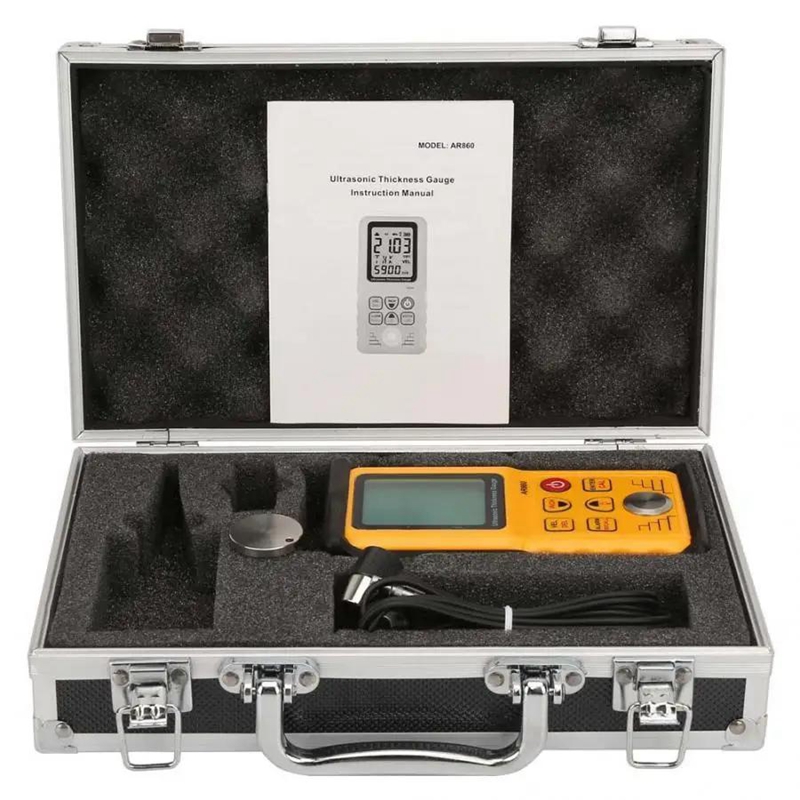

- 1 x Set of Thickness Gauge Meter

Note:
- Battery is not included.
