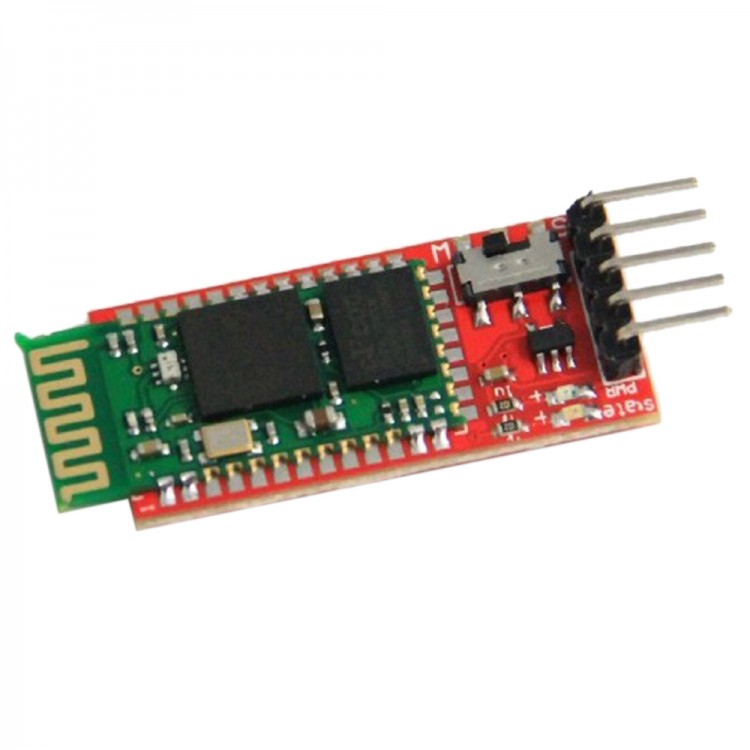

Arduino Bluetooth Seriel Port Wireless Module 2.4GHz ISM with Baseplate for DIY
Description:
The Bluetooth module can be a simple realization of serial wireless data transmission, universal 2.4GHz ISM (industrial, scientific and medical) band. It uses is Bluetooth 2.1 + EDR standard, Bluetooth 2.1, the device between the mutual recognition of signal transmission time interval is about 0.5 seconds. In this way, we can allow Bluetooth chip load is reduced drastically , also can let Bluetooth can have more time to complete dormancy, using the adaptive frequency hopping technology, the module is serial interface.
Parameter:
- Bluetooth protocol : Bluetooth 2.1+EDR standard
- USB protocol: USB v1.1/2.0
- Working frequency: 2.4GHz ISM band
- Frequency: Gauss, modulation shift keying
- Transmission power: less than 4dBm second
- Sensitivity: at 0.1% error rate is less than -84dBm
- Transmission rate: 2.1Mbps (Max) /160 Kbps (Asynchronous); 1Mbps/1Mbps (Synchronous)
- Security features: encryption and authentication
- Support configuration: Bluetooth serial port (master and slave)
- Power supply voltage: +3.3 VDC 50mA
- Working temperature: -20 to 55 degrees Celsius
Features:
- Support Bluetooth 2.1+EDR standard
- Support the establishment of software / hardware of Bluetooth master-slave mode
- Through the command can shend control parameters and commands to module
- Working status indication
- Suitable for embedded wireless transmission
- Efficient vehicle antenna
- Support 7 sub equipment
Package included:
- 1 x Arduino Bluetooth module
