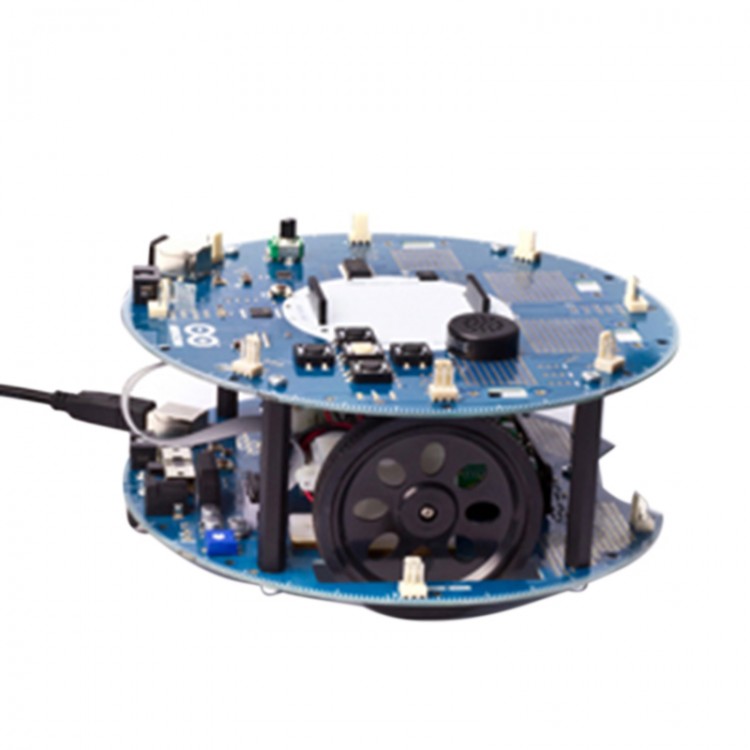

Arduino Car Kit 16MHz 32KB Arduino IDE ATMEGA32U4 Robot On Wheels Robotic Kit
Description:
- The Arduino Robot is the first official Arduino on wheels. The robot has two processors, one on each of its two boards. The Motor Board controls the motors, and the Control Board reads sensors and decides how to operate. Each of the boards is a full Arduino board programmable using the Arduino IDE.
- Both Motor and Control boards are microcontroller boards based on the ATmega32u4 (datasheet). The Robot has many of its pins mapped to on-board sensors and actuators.
- Programming the robot is similar to the process with the Arduino Leonardo. Both processors have built-in USB communication, eliminating the need for a secondary processor. This allows the Robot to appear to a connected computer as a virtual (CDC) serial / COM port.
- As always with Arduino, every element of the platform – hardware, software and documentation – is freely available and open-source. This means you can learn exactly how it's made and use its design as the starting point for your own robots. The Arduino Robot is the result of the collective effort from an international team looking at how science can be made fun to learn.
Parameters of Micro controller:
- Micro controller: ATMEGA32U4
- Working voltage: 5V
- Input voltage: 5V
- Digital O / I port: 5
- PWM channel: 6
- Analog input channel: 4
- Analog input channel (complex): 8
- DC current per I / O: 40mA
- Flash: 32 KB
- SRAM: 2.5 KB
- EEPROM (internal): 1 KB
- EEPROM (external): 512bit
- Frequency: 16MHz
- Keyboard: 5 key
- Full color LCD
- Through SPI communication
- SD card reader: AT16 format
- Speaker: 8 Ohm
Parameters of Motor drive plate:
- Micro controller: ATMEGA32U4
- Working voltage: 5V
- Input voltage: 9V battery charger
- AA battery cell: alkaline or nickel metal hydride rechargeable batteries 4pcs
Digital O / I port: 4
- PWM channel: 1
- Analog input channel: 4
- DC current per I / O port: 40mA
- DC-DC converter: 5V power supply
- Flash: 32 KB
- SRAM: 2.5 KB (ATMEGA32U4)
- EEPROM: 1 KB (ATMEGA32U4)
- Frequency: 16MHz
Package included:
- 1 x Robot Arduino Car Kit
