Arduino Compatible 4 Freedom Degree Manipulator Robot Linkage Control UNOR3 Servo Drive Plate + Mainboard

Arduino Compatible 4 Freedom Degree Manipulator Robot Linkage Control UNOR3 Servo Drive Plate + Mainboard

Built-in Function:
- Two way DC motor output control
- 8 way servo actuator PWM output control
- Two way DC motor speed regulation (10 gear)
- Line patrol (switching command: FF130200FF)
- Infrared obstacle avoidance  (switching command: FF130300FF)
- Following objects / obstacles (switching command: FF130100FF)
- Ultrasonic obstacle avoidance(switching command: FF130400FF)

Introduction for Product function and characteristics:
- With a 2 power supply voltage regulator system, current up to 3A, stable supply of the entire board and external equipment required power.
- The board of the two DC motor output interface, can drive 5-12V DC motor.
- The board of the 8 high precision servo drive interface, the driver can drive the steering gear.
- The main chip all IO ports are open, with our interface diagram and source code can be easily extended function.
- Support for wide voltage input, power supply can use 7V-15V lithium battery pack.
- With 5V voltage output port, you can easily access other external electronic equipment.
- With USB power supply and TTL serial communication, the program burn three in one interface, with only one USB data cable can be perfectly suited to the WIFI module.
- The product comes with optocoupler isolation system, compared to other corners of the drive plate products, stability is not a level!
- Standard TTL level serial communication, not only can match our WIFI module, Bluetooth module, but also support other TTL serial communication.
- Compatible with all common robot sensors and peripherals, such as infrared, ultrasound, light, sound, dot matrix, 12864 monitors, such as the display of the 1602.

Package List:

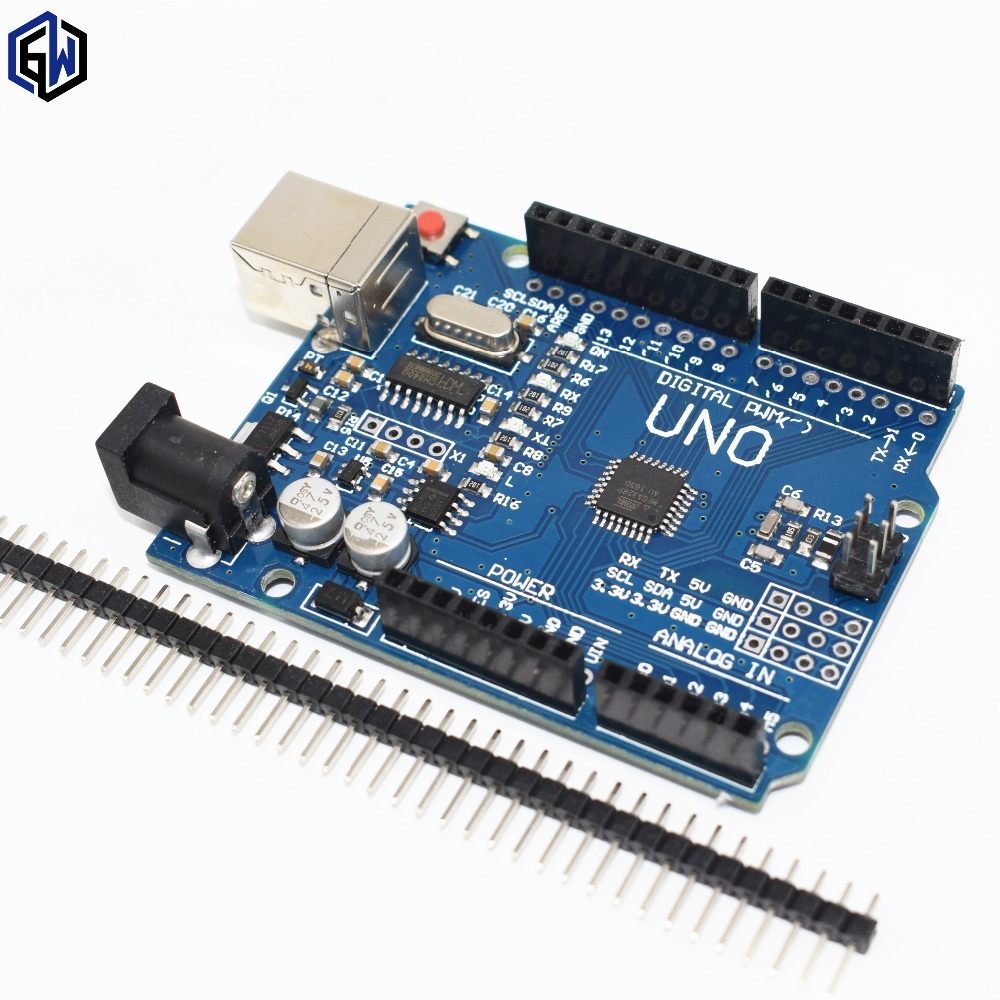

- Arduino Compatible R3  Compatible Mainboard

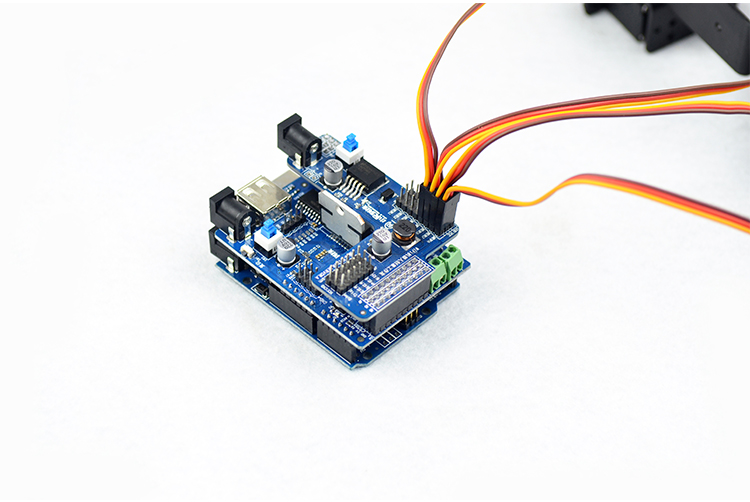

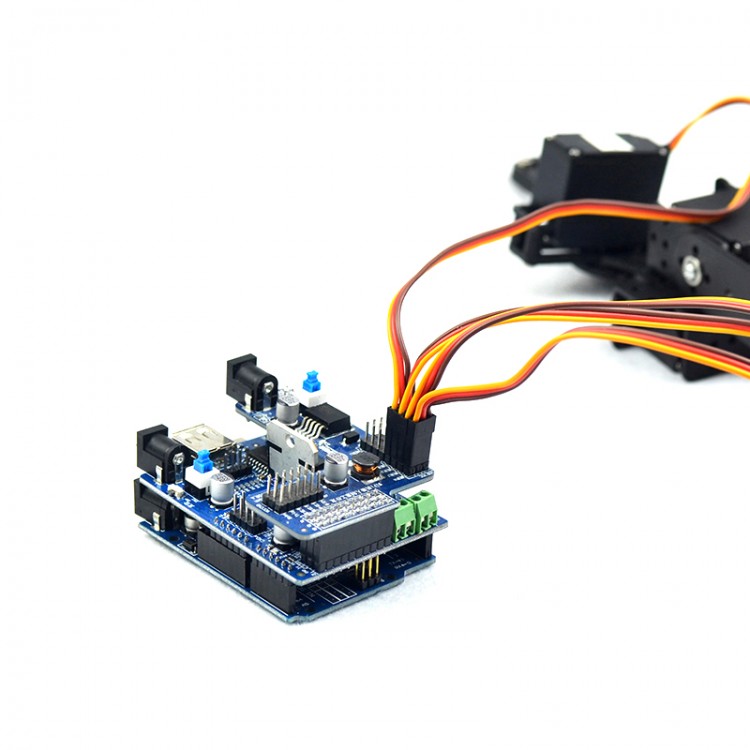

- Large Current Servo drive plate

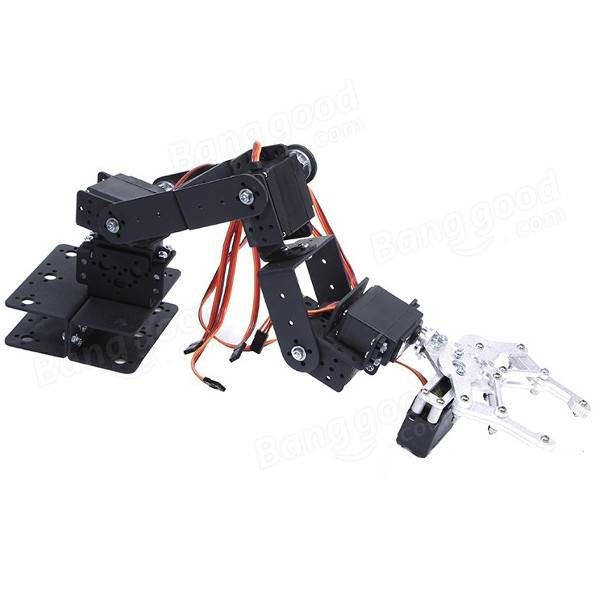

- 4 Freedom Degree  Manipulator
