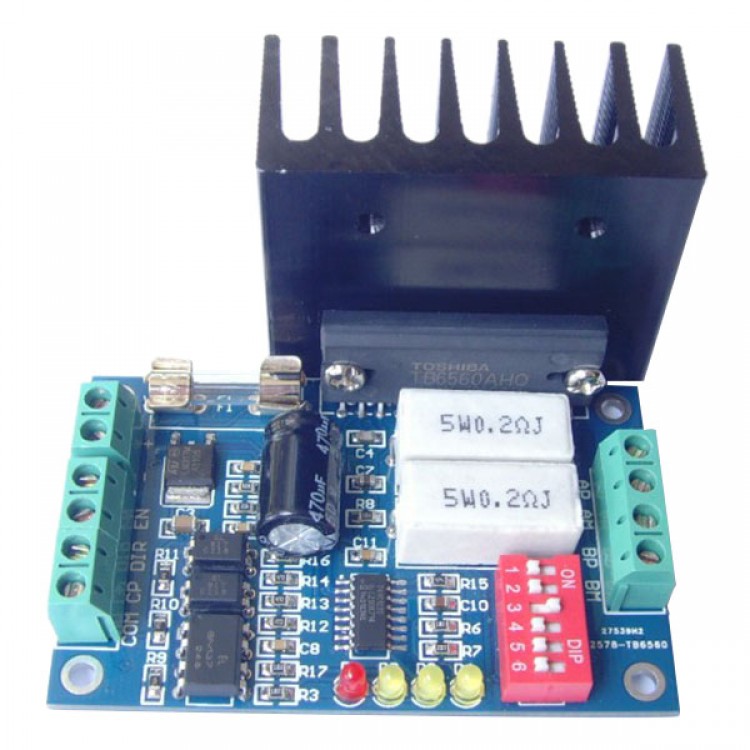

(Arduino-Compatible) TB6560 Stepper Motor Drive / High-power / 16 Segments / 3.5A Current Cooling Fin

(Arduino-Compatible) TB6560 Stepper Motor Drive / High-power / 16 Segments / 3.5A Current  Cooling Fin

Item specifics:
- is_customized: Yes
- Brand Name: far east
- Model Number: TB6560 stepper motor drive / high-power / 16 segments / 3.5A current

Description:
- Dimensions: length 100mm, width 60mm, high 30mm.
- The two main chips: TB6560, LM2576.
- Third, the operating voltage: Control signal DC 4.5 ~ 5.5V; highest withstand voltage 40 V, high current 3.5A (peak)
- Four, the maximum operating current: 3A
- Five segments set: 1,1 / 2,1 \ 8,1 \ 16.
- Onboard TB6560AHQ low power consumption, high-integrated two mixed stepper motor driver chip
- Onboard 74HC123 chip, support stepper motor automatic half  stream function
- Onboard changeable fuse holder, default installing 3A fuse
- Onboard two 0.2 Ohm high power cement resistance
- Onboard 6 dial the code switch, can realize the set of current capacity, segmentation and attenuation
- Onboard LM317 stablize chip, satisfy the demand of power supply of circuit part
- Onboard 3. coupler of radio, insolate effectively the interference, improve the stablization of system
- Onboard 10 dial binding post, convenient to wire linking for power supply, input and output
- Onboard 4 LED lights, indicationg the board states
- PCB board size: 75(mm)x48(mm)

Packaging Details:
- Unit Type: piece
- Package Weight: 0.300kg (0.66lb.)
- Package Size: 10cm x 10cm x 3cm (3.94in x 3.94in x 1.18in)
