Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $10.58 | $10.37 | $10.04 | $9.61 | Contact US |

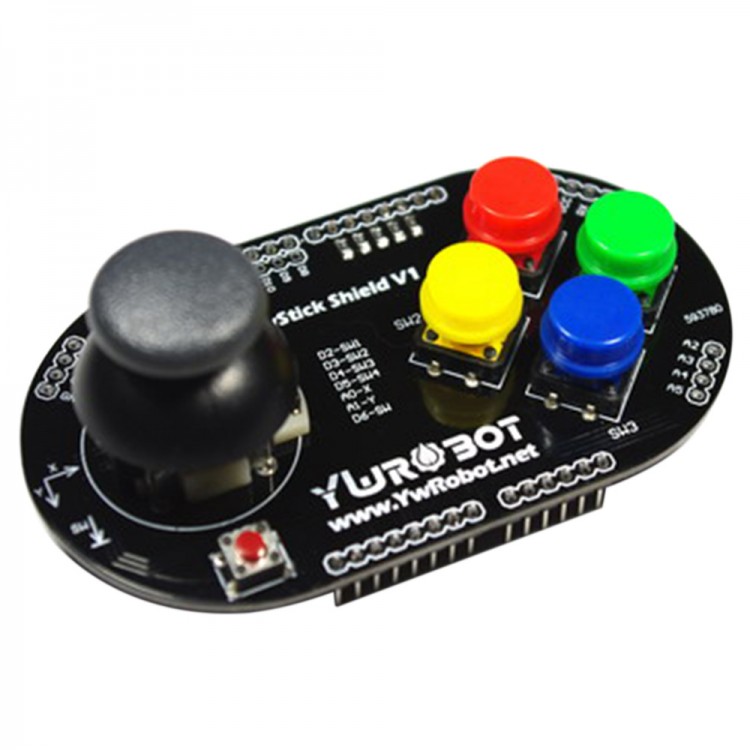

Arduino JoyStick Shield V1 Game Key Expansion Board Remote Controller for DIY
Specification:
- Model: Shield V1 JoyStick
- Size: 94*52mm
- Platform: Arduino
- PS2 game joystick (X axis A0, Y axis A1, Z axis button D6)
- Four independent keys (D2, D3, D4, D5)
- 1* I2C interfaces
- 1* TTL serial port
- Analog interface (A2-A5)
- Digital quantity interface (D8-D13)
- Arduino reset button
Note: The reserved extension interface needs to be welded pins yourself.
Features:
- Fully compatible with UNO R3 Arduino interface
- Rocker X\Y axis output for the two potentiometer, you can read through the AD conversion
- Press down the joystick, can trigger a touch switch, digital output
- Four independent keys, digital output, easy to use
- The board is marked with the port configuration of each module, easy to debug
- Reserved other ports
- Through the expansion board can make a remote control handle, combined with XBee module can realize wireless control
- Combined with Leonardo Arduino can also simulate the computer mouse, etc.
Package included:
- 1 x JoyStick Shield
