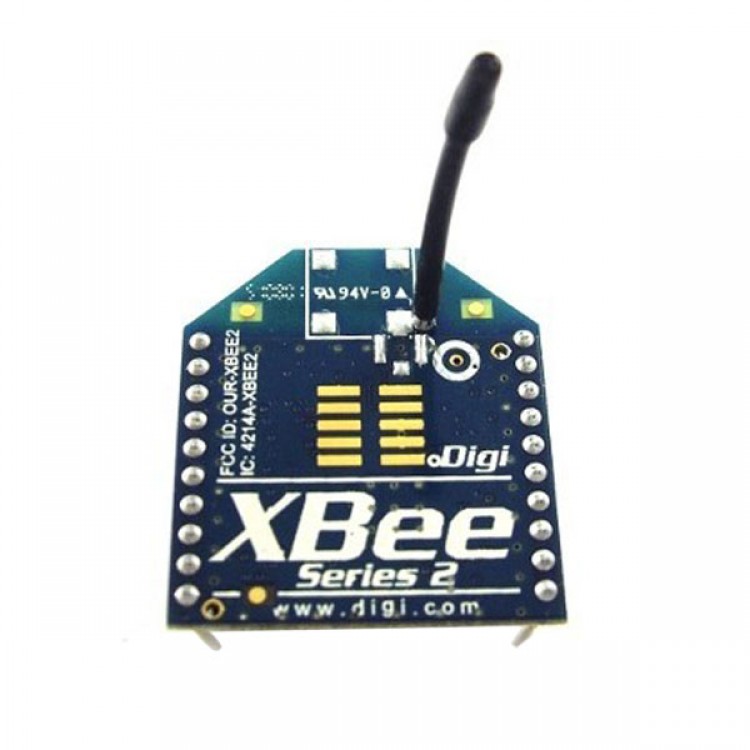

Arduino XBee 2mW Series-2.5 Zigbee Antenna Wire Chip 120m Range
This is the new 2.4GHz XBee XB24-BWIT-004 module from Digi (formally Maxstream).XBee Series-2.5 802.15.4 2mW radios. This is the wire whip antenna version with improved range over the chip antenna version. Note that this is a Series 2.5 model. The Series 2.5 has improved range and lower current draw and double the transmit power of the Series 1 model.Series 2 improves on the power output and data protocol. These modules take the 802.15.4 stack (the basis for Zigbee) and wrap it into a simple to use serial command set. These modules allow a very reliable and simple communication between microcontrollers, computers, systems, really anything with a serial port! Point to point and multi-point networks are supported.
Features:
- 3.3V @ 40mA
- 250kbps Max data rate
- 2mW output (+3dBm)
- 400ft (120m) range
- Built-in antenna
- Fully FCC certified
- 6 10-bit ADC input pins
- 8 digital IO pins
- 128-bit encryption
- Local or over-air configuration
- AT or API command set
NOTE: Series 1 and Series 2 XBee modules have the same pin-out. However, Series 1 modules cannot communicate with new Series 2 modules.
