Argon One M.2 256G SSD with Raspberry pi 4 Case Raspberry Pi 4 Aluminum Case M.2 Expansion Slot And SATA SSD Chip
Features
- Sleek aluminum alloy enclosure
- M.2 SATA SSD compatible with Key-B or Key-B&M
- UASP supported for high-speed data transfers with Raspberry Pi 4
- Two full-sized HDMI ports with 4K output
- Two power management modes with automatic booting or “Always ON Mode”
- Built-in power button for safe shutdowns reboots and forced shutdowns
- Efficient passive cooling with the whole top part of the case being a heatsink
- Built-in 30mm fan with software-controllable fan speed
- Programmable IR support to the Raspberry Pi with streamlined options
- All the connectors are located at the back for neat cable management
- Plastic base for excellent Wi-Fi signal strength
- Easy installation with magnetic removable top
- Easily accessible GPIO with color-coded pinouts
Description
Do you own an Argon ONE case but wanted m.2 SSD support and full-sized dual HDMI connectors?
Well…. Argon ONE M.2 case is here!
Argon
ONE M.2 is a Raspberry Pi 4 compatible case that is made with aluminum
alloy and polished with a modern Space Grey finish for stunning
aesthetics and functionality. It offers one of the best cooling
solutions for Raspberry Pi 4. The case has an extension that connects to
the processor with a thermal cooling pad so that heat from the
processor is transferred to the case. This means that the case becomes a
heatsink passively cooling the motherboard so that the computer can
work without building up much heat. Also, the case comes with a built-in
PCB board with a 30mm fan attached to actively cool the Raspberry Pi
further. These two cooling systems combined guarantee long-lasting use
without overheating. The fan speed can be configured easily at any time
via the terminal. Also, it has front and rear vents for better airflow.
Connect an SSD to your Raspberry Pi 4
Now
you can connect M.2 SATA SSD drives with Key-B or Key-B&M of any
size to your Raspberry Pi using this case. It has an M.2 connector
inside the case and you can connect the provided USB 3.0 adapter to one
of the USB ports on the Raspberry Pi and the USB port on the case for
the m.2 to function. The connection is also UASP supported, which means,
it allows for high-speed data transfers. This enables the SSD drive to
be used as a boot drive for your Raspberry Pi, which can dramatically
increase boot times.
Two full-sized HDMI connectors
Raspberry
Pi 4 generally has 2 micro-HDMI connectors and it will not be very
convenient sometimes to find a micro-HDMI to full-size HDMI cable when
you want to connect your Raspberry Pi 4 to an external display. However,
this Argon ONE M.2 Case solves this issue by including two full-sized
HDMI connectors for your convenience.
Power Button for your Raspberry Pi
Normally
a Raspberry Pi gets powered as soon as you connect it to the power
supply and does not have a power button onboard. Well…Argon ONE can
change the way you interact with your Raspberry pi 4. With the power
button installed on the case, you can easily turn on your Raspberry Pi
and perform safe shutdowns, reboots, and forced shutdowns.
Easy Assemble with all ports to the back for better cable management
Assembling
the case with the Raspberry Pi is very easy. Install the Argon ONE
Script that unlocks the full functionality of the Argon ONE case. All
the ports are accessed at the back, making it more manageable with
minimal cable clutter and easy cleaning. This also makes it easy to tidy
and pack up when on the move without compromising any ports of the
motherboard.
Color-coded GPIO Pins
The case was
designed with one main purpose, protecting the Raspberry Pi without
compromising the full functionality of the motherboard. The built-in PCB
board extends the GPIO pins of the Raspberry Pi with the pins being
color-coded to easily identify the pin functions. Also, the pins are
clearly labeled for convenient use. When the pins are not in use,
they’re covered and protected by a magnetic removable top. This makes
the Pins accessible at all times, allowing the Raspberry PI to be used
in various electronics projects.
The case comes with a top and
bottom, 4 screws, a built-in PCB Board, a silicon cooling pad, and a PCB
Board that extends the audio and micro HDMI ports. Assembling the
raspberry pi with the case though is as easy as 1, 2, 3 or A, B, C.
Combining the parts together is simple and intuitive. All that’s needed
is a four-way screwdriver, and that’s just to tighten the screws to the
bottom of the case. No special tools needed at all. After placing the
Raspberry Pi and installing the OS on the SD Card, a one-line script
needs to be typed into the terminal so that the power button and fan can
be used.
Power Management Modes and IR support
This
case enables two power management modes with automatic booting or
“Always ON Mode” and has programmable IR support to the Raspberry Pi
with streamlined options

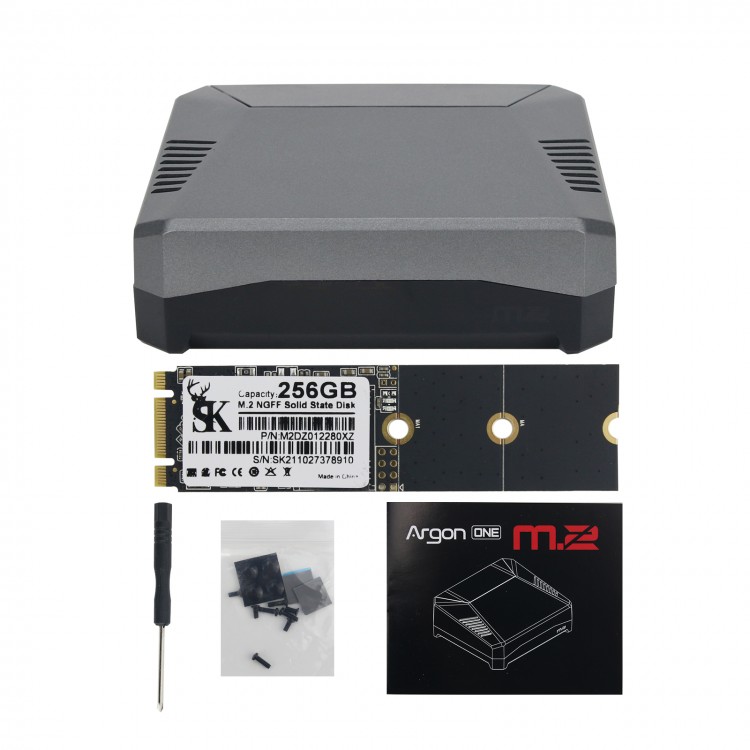

Packing List
1 x Argon ONE M.2 Pi 4 Case
1 x 256GB M.2 SATA SSD
