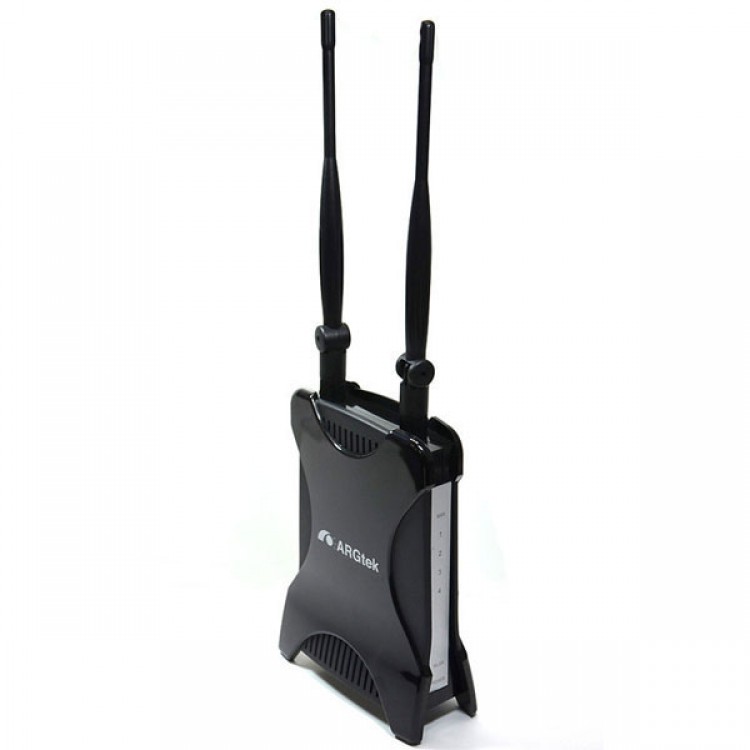

ARGtek 300Mbps 1000mW 2T2Rb/g/n High Power Wireless Router-ARG1210 Made in Taiwan
Descriptions:
ARG1210 WLAN 11n High Power AP/Router built-in 4 LAN ports, which fully supports the features and functional compliance of IEEE 802.11b/g/n standard to provide high-speed data transmission up to 300Mbps and can increase the coverage range efficiently.
Features
- Operates on 2.4 GHz frequency band including 11n mode 2T2R MIMO technology for enhanced throughput up to 300Mbps.
- Backward compatible with legacy IEEE 802.11g, 802.11b (2.4GHz) standards
- High power and high sensitivity for extended coverage.
- Configuration and management operated via Web browser with password protected access.
- Firmware upgrade via HTTP.
- Supports Gateway, Bridge, and WISP mode for wireless networks.
- Supports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x), WPA2 (AES with IEEE 802.1x)
- Support NAT, SPI (Stateful Packet Inspection) for advanced firewall features
- Compliant with IEEE 802.3 and IEEE 802.3u 10/100 Mbps
- Supports WMM function to meet the multimedia data bandwidth requirement
- Power supply by 12V, 1.5A.
- Supports multiple ESSIDs with individual security settings.
| MODEL | ARG-1210 |
| Standards | • IEEE 802.1d (Spanning Tree Protocol) • IEEE 802.11b (11 Mbps Wireless LAN) • IEEE 802.11g (54 Mbps Wireless LAN) • IEEE 802.11n Draft 2.0 (300 Mbps Wireless LAN) • IEEE 802.1x (Network Access Control) • IEEE 802.3 (10Base-T Ethernet) • IEEE 802.3u (100Base-TX Fast Ethernet) |
| General | • Ethernet port: 5 RJ45 10/100 Mbps data port; one WAN and 4 LAN interface • Flash: 2 MB • Memory: 16 MB SDRAM |
| Frequency range | • 2.400 - 2.483 GHz |
| Modulation technologies | • 802.11b: Direct sequence Spread Spectrum (DSSS): DBPSK, DQPSK, CCK • 802.11g: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM • 802.11n: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM |
| Data rates | • IEEE 802.11b (11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps) • IEEE 802.11g (54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps) • IEEE 802.11n (MCS0-15: up to 300 Mbps) |
| Output power | • 802.11n: 23 dBm +/- 1.5 dBm @300 Mbps • 802.11g: 23 dBm +/- 1.5 dBm @54 Mbps • 802.11b: 28 dBm +/- 1.5 dBm @11 Mbps |
| Receiver sensitivity | 11n (300 Mbps) MCS0-15: -73 dBm; 11g (54 Mbps) OFDM: -73 dBm 11b (11 Mbps) CCK: -91 dBm |
| Operation modes | • Gateway mode • Bridge mode • WISP mode |
| Wireless security | WEP encryption (64/128 bit) WPA TKIP WPA2 AES WPA2 mixed 802.1x Authentication Client access control through media access control (MAC) filter |
| Antenna | Two 5dBi dipole antenna |
| LEDs | • Power • LAN Link/Act |
| Environmental | • Operating temperature: 0°C - 50°C • Operating humidity: 10 - 95% RH, non-condensing • Power Adaptor: 12V 1.5A |
