ARINST SSA Lite R2 RF Spectrum Analyzer 35-6200MHz Portable Design w/ 3.2" Color Touch Screen

ARINST SSA Lite R2 RF Spectrum Analyzer 35-6200MHz Portable Design w/ 3.2" Color Touch Screen

Product Description:
This equipment differs from the PRO version without additional adaptors and the external attenuator at 30 dB.

Portable spectrum analyzer for Arinst SSA Lite R2 is designed to display spectra signals in the frequency range from 35 to 6200 MHz. The device allows to determine the amplitude and frequency of spectral components included in the signal.

The spectrum analyzer displays the spectra of signals of all common technologies: wifi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc.

Purpose:
Spectrum analyzer is designed primarily for practical work, it has a very small weight and dimensions and has a low power consumption. With it, service centers and repair crews can conduct an RF analysis to commissioning or repair work. In addition, the spectrum analyzer is ideal for repair shops and hobbyists.

How does it work?

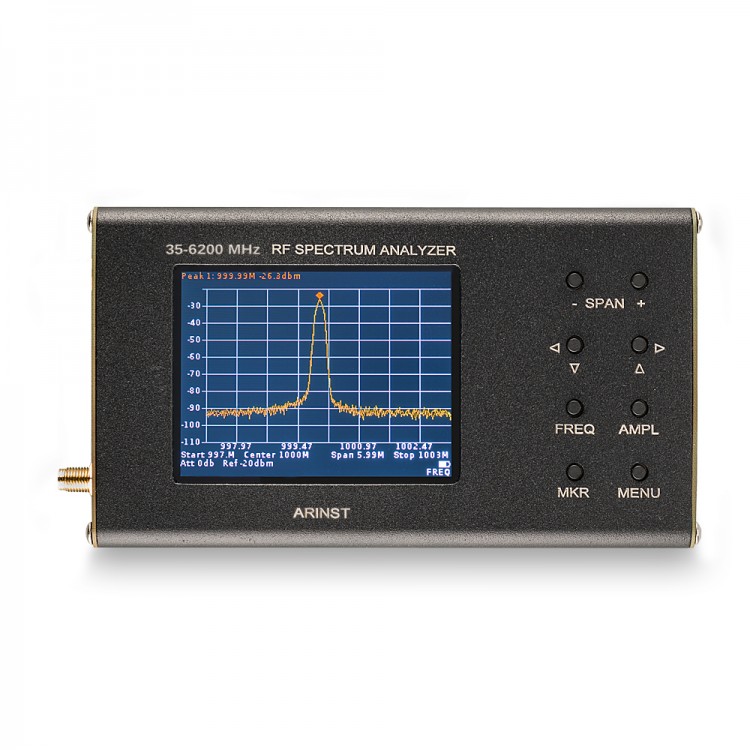

Spectrum analyzer made in the form of a mobile device with autonomous power supply, which is connected in the measuring circuit. The device has a 3.2" color resistive touch screen to display the signal spectrum and to control the device. In addition, the device is controlled by a smartphone or tablet running Android version 4.1-8.1.

Attention: Data between the device and the smartphone are transmitted both through the built-in Bluetooth module, and USB cable. Bluetooth operating range up to 10 meters (the Password to access via Bluetooth: 1234).

All measured data in real time are displayed on the device screen or smartphone/tablet.

To control the spectrum analyzer with the smartphone/tablet for Google Play need to install software or download latest version from site and install it manually.

For normal operation of the application requires for Windows 7 or higher and the latest version of the Java Virtual Machine.

The application requires for full (100%) OpenGL version support 2.1 and above.

The Advantages of Spectrum Analyzer:
- the color resistive display with a diagonal of 3.2 inches
- wide frequency range: 35 to 6200 MHZ
- a quick scan of the range of frequencies of about 150 µs per point
- high measurement accuracy: 2 dB within the dynamic range of 70-75 dB
- small weight and sizes: weight only 400g, the size of 155х81х27mm
- self-powered for up to 4 hours of continuous operation
- wireless data transfer to smartphone/tablet
- work with most devices running system for Android
- the ability to use one device with multiple smartphones/tablets
- the ability to power the device from a tablet or smartphone
- free software and free updates to the management appliance

Specifications:
- The displayed frequency range: 35-6200 MHz
- The measured frequency range: 35-4500 MHz
- Dynamic range for band 35-3000 MHz: 75 dB
- Dynamic range for band 3000-4500 MHz: 70 dB
- Maximum band review: 6165 MHz
- The bandwidth of the drive (fixed): 200 kHz
- Scanning speed in a swath of more than 100 MHz: 700 MHz/sec
- The review time in the band 100 MHz: < 0.25 seconds
- Shelf noise in the band up to 3000 MHz: < -100 dBm
- Shelf noise in the band of 3000 - 4500 MHz: < -95 dBm
- Shelf noise in the band 4500 - 6200 MHz: < -90 dBm
- Impedance: 50 Ohm
- VSWR in operating frequency range: < 1.5
- Internal attenuator: 0-30 dB
- Error attenuation up to 10 dB: 2 dB
- Error attenuation 10 to 20 dB: 5 dB
- Error attenuation 20 to 30 dB: 8 dB
- The accuracy of the signal within the dynamic range: 2 dB
- Maximum input power at attenuator 0 dB: 10 dBm
- Maximum input power when the attenuation more than 20 dB: +20 dBm
- Maximum input measured signal: +10 dBm
- Maximum DC voltage on input: 25 In
- Maximum current consumption when running on battery: 350 mA
- Maximum ptrebley current when running on USB (with included battery): 500 mA
- Battery: 2000 mAh
- Time battery life: 4 hours
- The battery time of: ~ 5 hours

Main Functions of the Application to Control the Device:

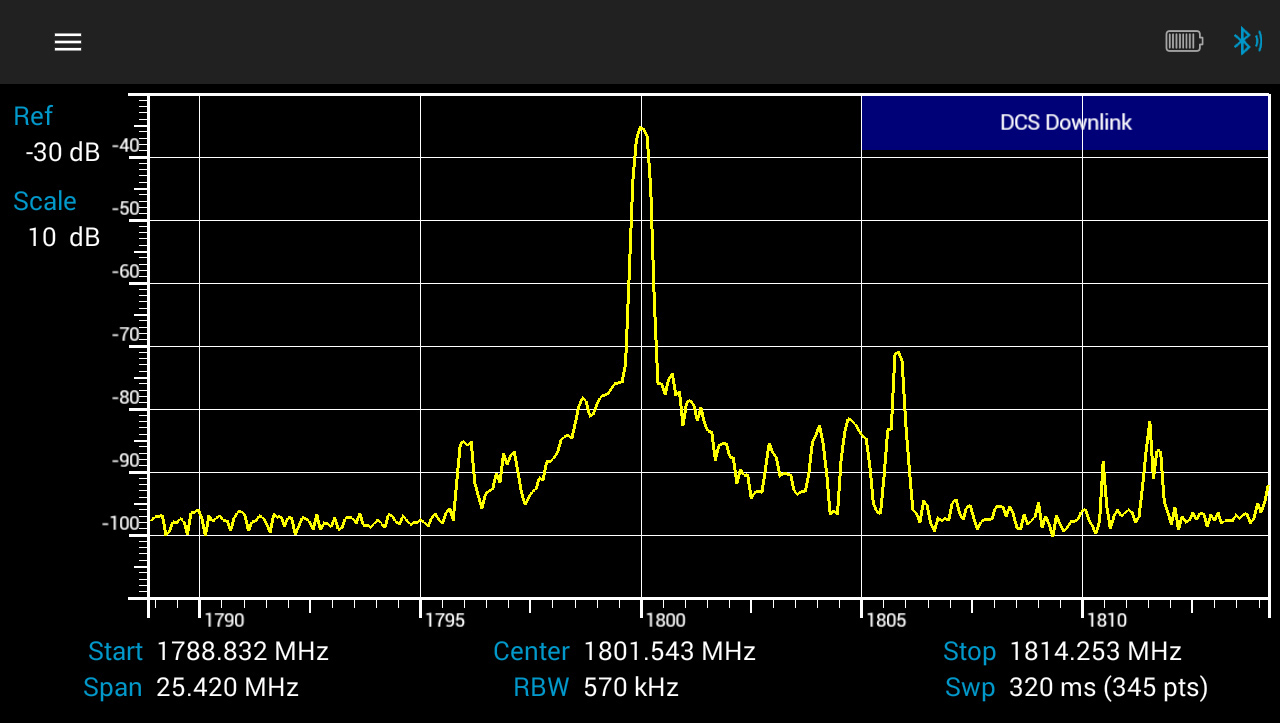

·View spectrum signals in the form of graphs, with the installation of the frequency range and reference level


·Installation and management of absolute and relative (Delta) markers

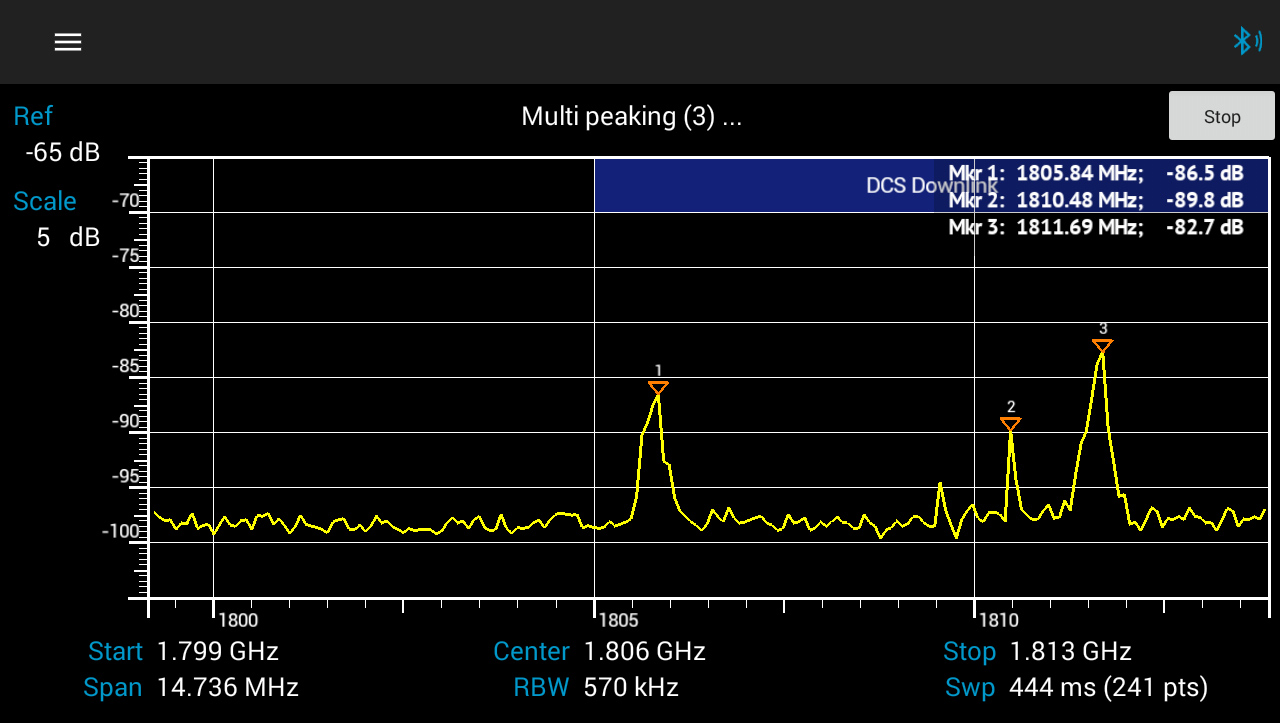

·A search of one or several (up to ten) the maximum values of the signal in the snapshot or tracking modes

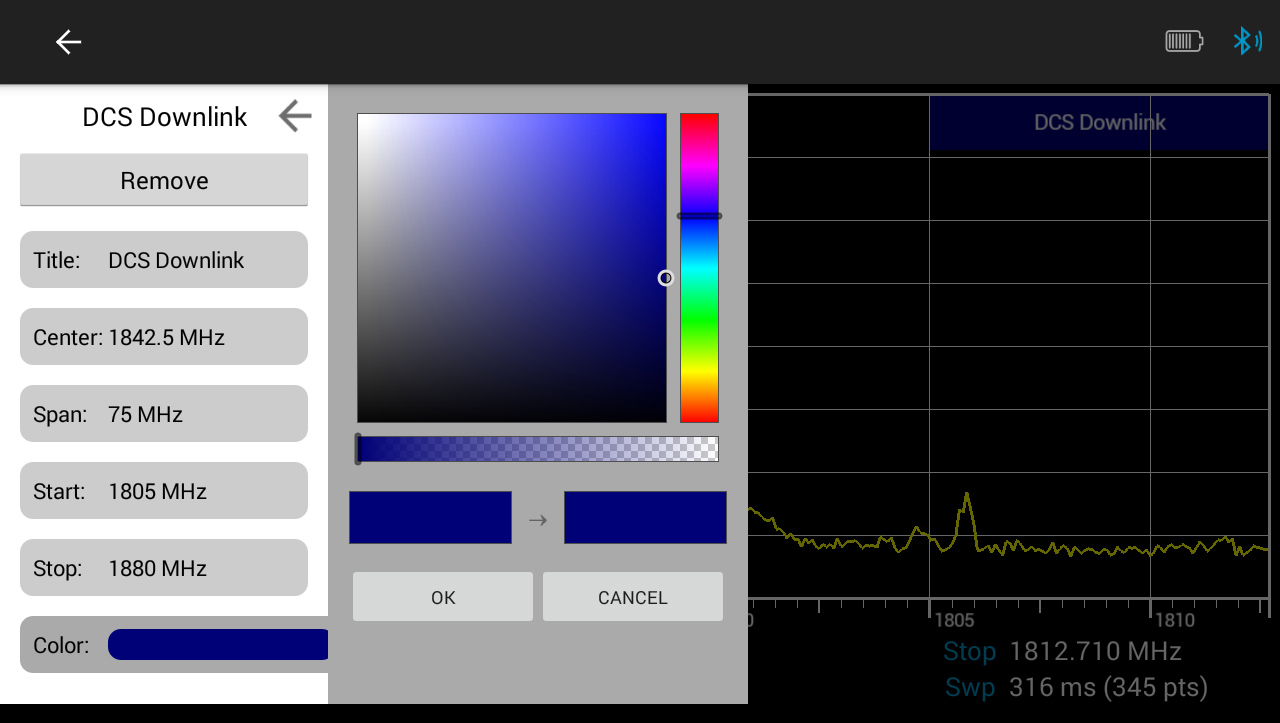

·The purpose and preservation of the unique identifiers for the ranges of frequencies – the "regions". For example, you can assign a "region" called "DCS UpLink" band 1710-1785 MHz. And also you can assign working frequencies for each operator. This option greatly facilitates the RF-analysis and identification of signals with standard technologies.

·The presence of predefined "regions", as well as the ability to save the "regions" file and share them with other devices to control the spectrum analyzer for Arinst SSA R2.


· The trace mode, which is based is averaged over multiple measurements of the spectrum of the signal. In addition to the average possible display modes are the extreme values, moving average. The number of measurements for the trace selected by the user.


·Save settings scan the spectrum (the boundaries of the frequency range, the value of the attenuator, etc.) for quick and easy switch to the desired mode of measurement.


· The preservation of the signal spectrum together with the markers for further analysis. With this saved chart can be opened on any device for Android with installed application for "Arinst SSA R2" (it is not necessary to have the spectrum analyzer), or convert into the desired form using any table editor.


Limitations:
Spectrum analyzer is not a measuring device, since it has type-approved measuring instruments. Type approval of a measuring instrument would result in affecting the availability and price of the device. Therefore, the spectrum analyzer from the official point of view is the field indicator. However, despite this, the device meets all stated specifications. Each instrument is calibrated in power and frequency.

Analyzer is a complete classical spectrum analyzer, because it does not use the classical scheme of frequency conversion to 100% suppression of the mirror channel. We use a mathematical image rejection that in some rare cases may lead to the appearance of the displayed signals the "phantom" signals.

Additional Information:
- The device does not work for iPhones and other Apple products;
- Frequency bands are displayed only when working for Android devices or for Windows devices. Frequency bands are not displayed on the screen of the device itself;
- For the correct operation of the software for Windows need to have the OpenGl support of your equipment (version 2.1 and higher).

Package Included:
- 1 x Portable spectrum analyzer
- 1 x Power cable mini-USB to USB 2.0 data transfer, 100cm
- 1 x Adapter SMA (male)-SMA (female)
