ARINST VNA-PR1 1-6200 MHz VNA 2-Port Vector Network Analyzer RF Reflectometer w/ 4" Touch Screen

ARINST VNA-PR1 1-6200 MHz VNA 2-Port Vector Network Analyzer RF Reflectometer w/ 4" Touch Screen

Description:
https://www.youtube.com/watch?v=zaoWuA1aDFc

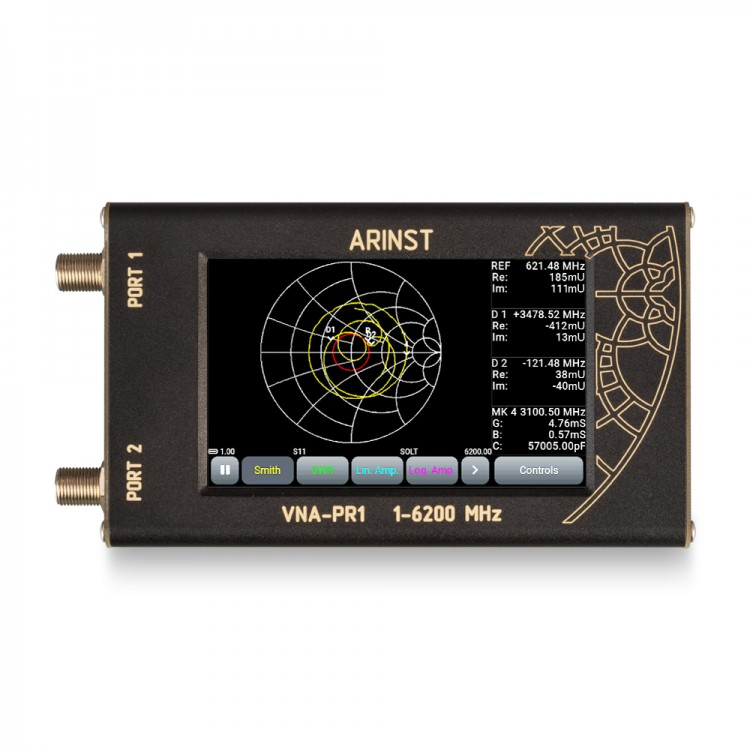

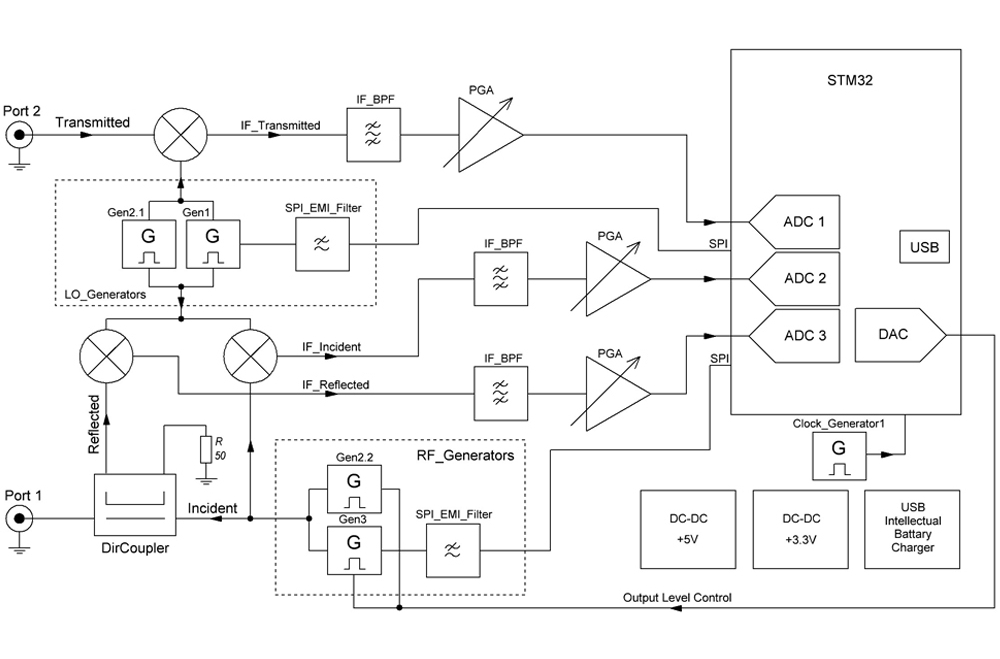

For ARINST VNA-PR1 portable two-port vector network analyzer is designed to measure the matching characteristics of passive and active radio devices (antennas, cables, filters, attenuators, amplifiers), check the integrity of high-frequency cables, measure their parameters and other amateur radio measurements.

The device measures parameters S11 and S21, voltage standing wave ratio (VSWR), impedance, admittance, phase, group delay time (GD), losses and distance to cable fault.

You can download the instructions here: Link for www.arinst.net/files/2114-ARINST-VNA-PR1/User-manual-ARINST-VNA-PR1-1-6200_ENG.pdf

For whom?
The VNA-PR1 analyzer is made in a robust aluminum case in the form of a mobile device with autonomous power supply and is intended primarily for work directly on the site, since it is characterized by low power consumption with its low weight and compact size. The analyzer will be especially useful for telecommunications companies that install and maintain antennas, amplify cellular communications, etc. It can be used by service centers and repair teams to perform RF analysis of cables and antennas on-site during commissioning or repair work. In addition, the device is ideal for workshops, radio amateurs, educational institutions and laboratories.

The device has a 4-color resistive screen for displaying measurement results and controlling the device.

For example, using the device, you can perform the following work:
·Perform impedance matching using the Smith diagram
·Measure the standing wave coefficient
·Measure the frequency response of active devices
·Measure attenuation in the cable
·Measure the distance to damage in the cable or its length

Attention! All devices are calibrated by the manufacturer. Removable SMA adapters screwed onto the device connectors are taken as the reference plane. When using cable assemblies or additional adapters, the device must be recalibrated according to the instructions. To calibrate the instrument, we recommend using ready-made calibration kits with N-type and SMA-type connectors.

To avoid premature wear of the instrument connectors, we recommend taking measurements with the screw-on adapters supplied.

Advantages:
- a 4-inch color touch screen allows you to quickly configure scanning parameters and display measurement results
- simple and intuitive on-screen interface of the device
- wide range of operating frequencies: from 1 to 6200 MHz
- high scanning speed - 1000 points / s
- low error of reflection coefficient measurement: 0.25 dB and 0.7° over the entire frequency range
- adjusting the output power of the probe signal generator
- the ability to display up to four independent markers on all graphs, allowing an accurate assessment of the measured parameter
- displaying almost all possible interpretations of the reflection coefficient
- saving 32 user presets and 32 measurement results – traces
- setting the SWR threshold line for Smith, Polar, SWR, and Log charts. Amp (in S11 measurement mode)
- ability to measure the distance to damage and loss in the cable
- ability to compensate for the electrical length of the cable
- shift of the amplitude scale when measuring the frequency response of active devices and attenuators
- low weight and dimensions: 400 grams with "pocket" dimensions 150 x 81 x 27 mm
- intelligent system for determining the maximum charging current depending on the power source
- built-in 5000mAh battery provides up to 2.5 hours of battery life

Specifications:
- Operating frequency range: 1-6200 MHz
- Input connectors: SMA (female)
- Frequency resolution for frequencies 1-100 MHz: 100 Hz
- Frequency resolution for frequencies 100-6200 MHz: 10 kHz
- Maximum number of scan points: 1000
- Scan speed: 1000 points / s
- Dynamic range S21 (BW=250 Hz) for frequencies 1-1,5 MHz: > 60 dB type.70
- Dynamic range S21 (BW=250 Hz) for frequencies 1,5-4500 MHz: > 80 dB type.90
- Dynamic range S21 (BW=250 Hz) for frequencies 4500-6200 MHz: > 70 dB type.75
- The directivity of the bridge is unadjusted over the entire range: > 12 dB
- Directivity effective {1} (after full one-port calibration): > 55 dB
- Input standing wave ratio : < 2
- Phase measurement error {1}: < 0.7°
- Magnitude measurement error {1}: < 0.25 dB
- Resolution for determining the distance to fault {2}: (C x VF) / 2S m
- Maximum length of the measured cable {3}, when VF=1: 3000 m
- Compensation electrical length of the cable, when VF=1: ±3 m
- Maximum DC Input Voltage: 25 V
- Maximum input power supplied to the ports: + 10 dBm
- Maximum power of the probing signal {4}: < -5 dBm

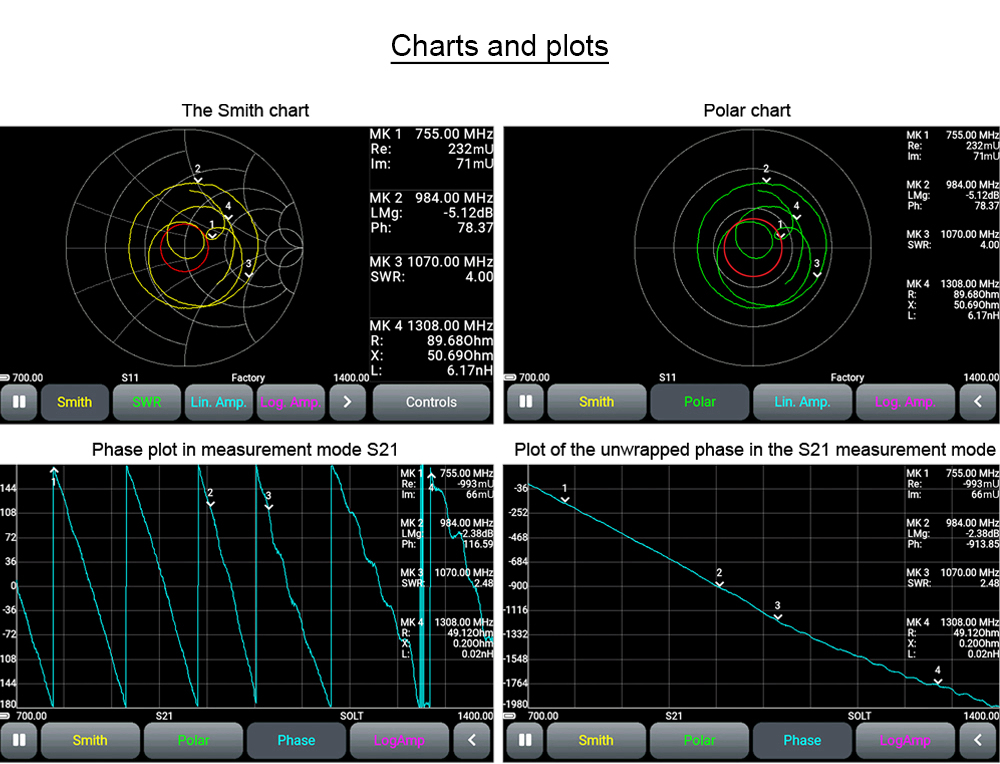

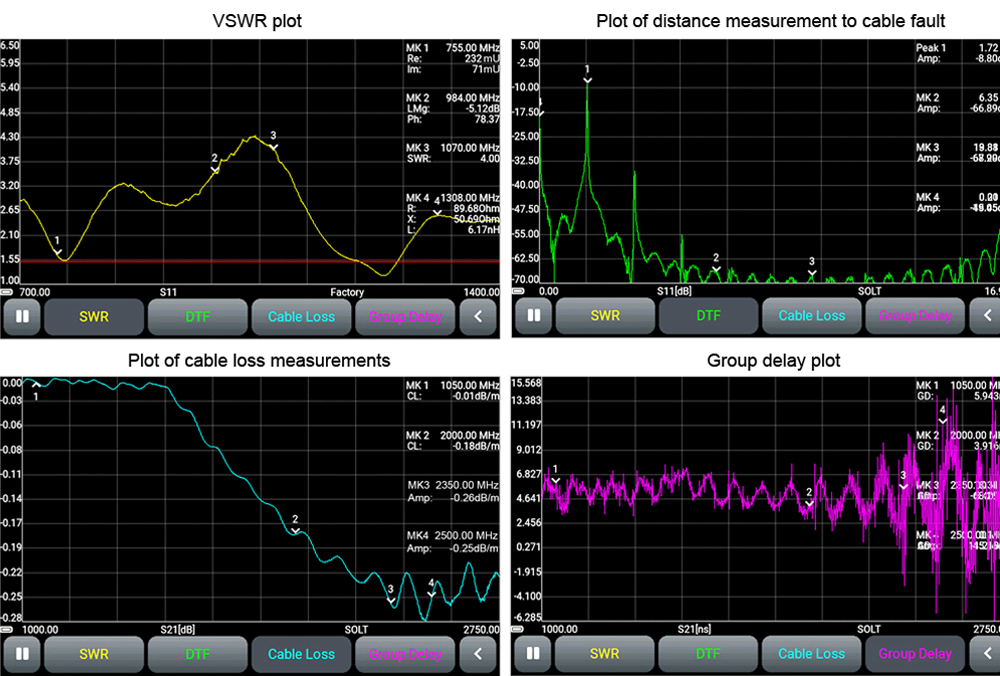

- Displayed charts: Smith chart; polar chart; phase of the reflection coefficient S11 and transmission coefficient S21 ; magnitude of S11 and S21; logarithmic magnitude of S11 and S21; SWR; distance to fault; cable loss, group delay
- The number of user settings to remember: 32
- The number of traces to remember: 32
- Working temperature range: 0 to +40°С
- Screen diagonal: 4"
- Screen type: touch, resistive
- Screen resolution: 800 х 480
- Maximum current consumption, when charging the battery: ≤ 2 A5
- Maximum current consumption, when running on battery: ~ 1 A
- Maximum current consumption, when using USB with battery charging {6}: ≤ 2 A5
- Battery capacity: 5000 mAh
- Time of continuous battery life {7}: 2.5 h
- Battery charge time {5}: ~ 3.5 h
- Overall dimensions (L x W x H): 150x81x27 mm
- Net weight: 0.4 kg

{1} The measurement is performed after warming up the instrument for at least five minutes with a full calibration. The change in ambient temperature from the moment of calibration to measurements should not exceed ± 3 ° С.

{2} Where C is the speed of light m/s; VF – velocity factor (the ratio of the speed of propagation of electromagnetic waves in the cable to the speed of propagation of electromagnetic waves in a vacuum), takes a value from 0.1 to 1 (depending on cable); S - scanning frequency range (Hz).

{3} Depends on the amount of attenuation in the cable and is the indication limit on the display.

{4} With the possibility of reducing.

{5} When connecting the device to a charger with an output current of at least 3A.

{6} If your PC has a limit on the maximum current supplied to the USB port, the device will automatically limit the maximum charging current according to the current USB specification.

{7} At an ambient temperature of 20±5°C after the battery is fully charged.

Package Included:
- 1 x VNA analyzer
- 1 x USB connection cable
- 2 x Adapters SMA(female)-SMA(female) to protect connectors from deterioration

Additional Information:
- The device is not a professional measuring instrument and is intended for amateur radio applications.
- If necessary, we can disassemble the device so that it passes customs more easily. Only a screwdriver is needed for assembly.

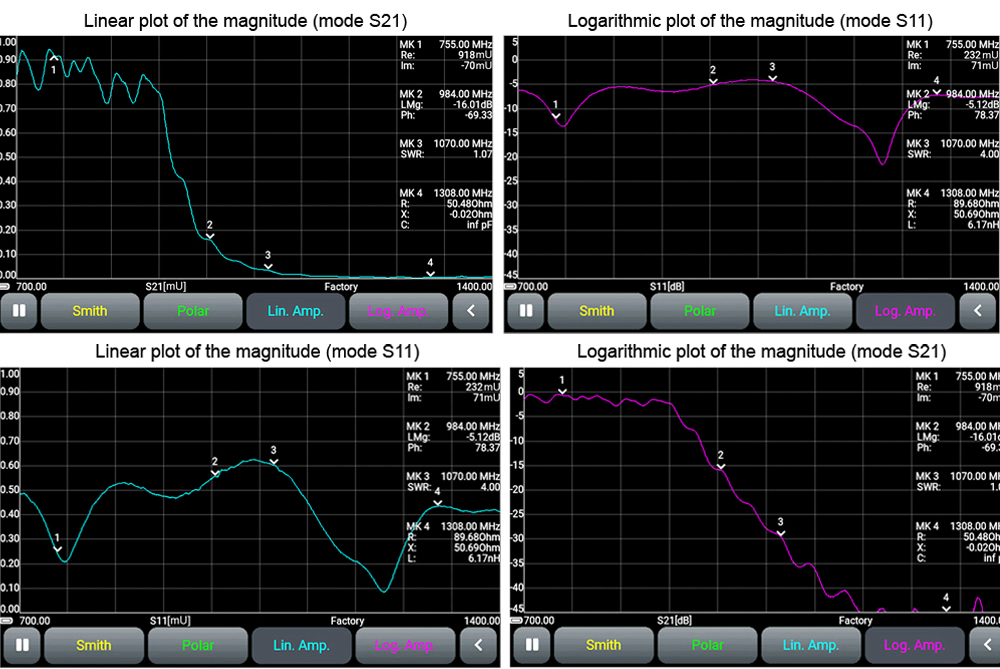

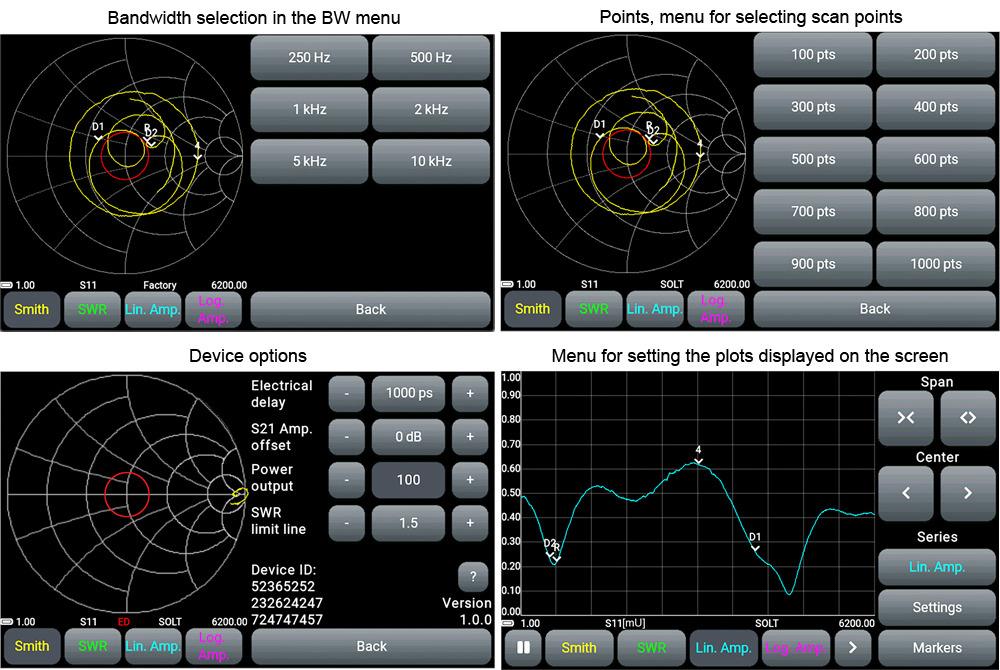

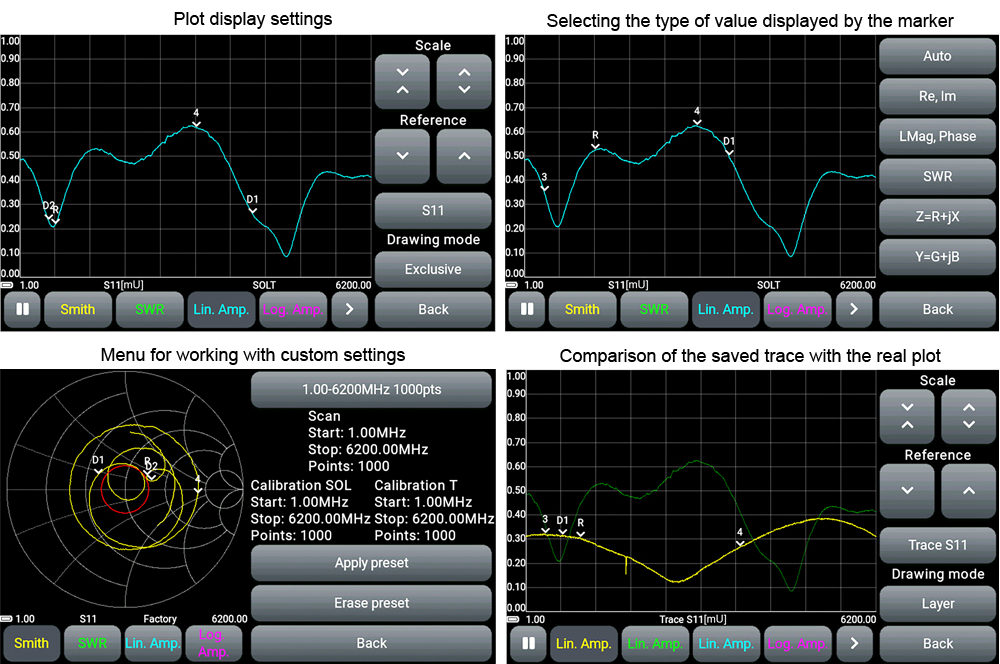

Screen Interfaces:
