Arkbird-Nano RC Autopilot for Small FPV XT60 Plug+Full Kit (Flight Control+GPS+Mini Current Sensor)

Arkbird-Nano RC Autopilot for Small FPV XT60 Plug+Full Kit (Flight Control+GPS+Mini Current Sensor)

Description:
Ultra small size! It is designed with single CPU, integrated pixel-level OSD, AAT airborne module and mini ammeter. The autopilot weights only 15.2g. It is perfect for racing drones and small FPV aircrafts.

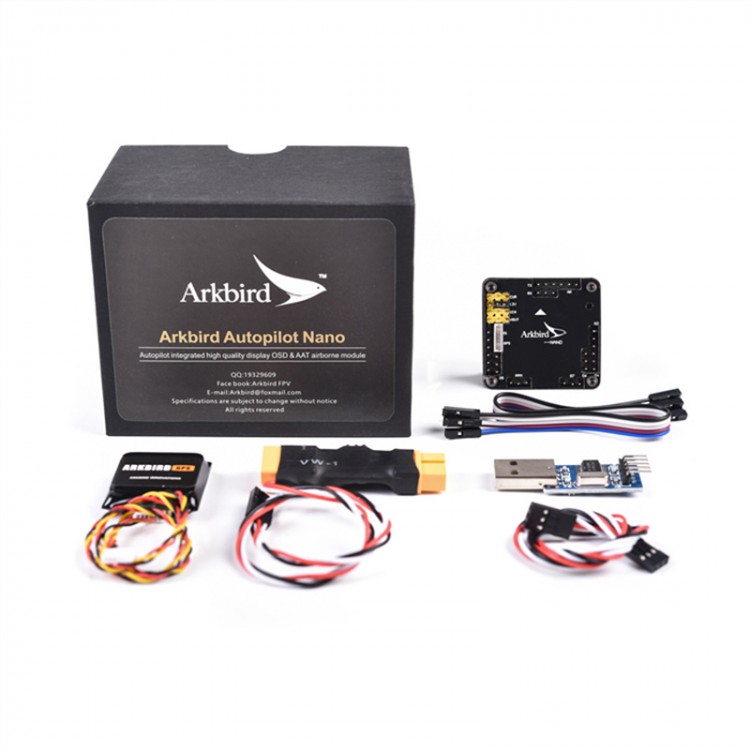

Package Included:
- 1 x Arkbird Nano Autopilot
- 1 x Arkbird Nano Current Sensor
- 1 x Arkbird Nano GPS
- 1 x Full Set of Cables

Note: Please note that the default plug is XT60.



Wiring:


OSD Interface:


Features:
- With high-precision digital airspeed meter interface. With airspeed / ground speed protection control.
- HD pixel-level OSD menu with data graph display and 8 kinds of 3D animation plane models.
- Integrated AAT airborne module for direct use with Arkbird AAT ground end.
- Support Sbus or PPM input, 7-channel output, with stable PTZ output.
- Intelligent flap control and release. You can set the speed to control flaps and 1-7 channels (aileron-flap) mixing control.
- More mixed control methods include delta wing, V-tail wing, and bi-motor plane, bi-motor flying wing(differential steering) and butterfly brake (mixed control of 1247channel).
- Support Arkbird433 10 channels + RSSI single line transmission.

8 Basic Functions:
- Industrial reliability design, on-board buck chip. "ESC + buck" dual power supply.
- Inertial measurement unit & air pressure to fix high.
- Can be placed flat or sideways for models with small spaces.
- Ultra-simple debugging, adaptive control algorithm, eliminating the need for complex tuning processes to suit a variety of models.
- OSD display data + remote joystick to adjust parameters.
- Various custom displays such as radar coordinates, real-time compass, flight time, horizon, and power consumption.
- One button to balance, smart lock tilt system. The rocker is fully loaded with the corresponding locking angle of 45 degrees. When the rocker is released, your aircraft automatically flies.
- Autonomous return.

12 Expanded Functions:
- Auxiliary Takeoff: Push the throttle and it will not output the throttle. Wait to run. You run with an airplane in hand at speeds greater than 5kmph, the throttle opens and automatically controls takeoff.
- Fence Mode: Set a rectangular area and the minimum height. Your aircraft will automatically return once it is out of the area. Suitable for beginners to practice flying.
- Waypoint Mode: Cycle through the set points.
- Crane Mode: Take the vertical direction of the nose as the balance point, your aircraft can fly vertically and hover.
- Route (fixed height orientation): When the joystick is back, it locks the altitude and heading, your airplane will fly in a straight line.
- Intelligent Flap Control: When the airspeed/ground speed is lower than the safe speed, flaps are lowered proportionally to increase the lift.
- Flying Wing Butterfly Control: The rudder surface works like a damper plate to achieve smooth rudder steering of the flying wing.
- Data Recording: Record flight time, range, power consumption and maximum records (height, distance, speed, current).
- 3D Gyro Mode: The amount of rudder in the opposite direction is provided when aircraft body is moving. There is no rudder when there is no action to ensure the 3D attitude.
- Stabilizing PTZ: Connect the 5 and 6 output channels to the servo PTZ. When tilting the aircraft, it will give a compensation amount in the opposite direction to keep the camera level.
- Semi-balance Mode: It is in balance mode when the rocker rudder amount is less than 50%. When it is over 50%, it is in gyro mode, which can realize large-angle turning and even vertical climbing and rolling. After the action maneuver is completed, the joystick can be returned to the middle.
- Vertical Take-off and Landing: Support dual-shot vertical take-off and landing models. You can adjust the parameters.
