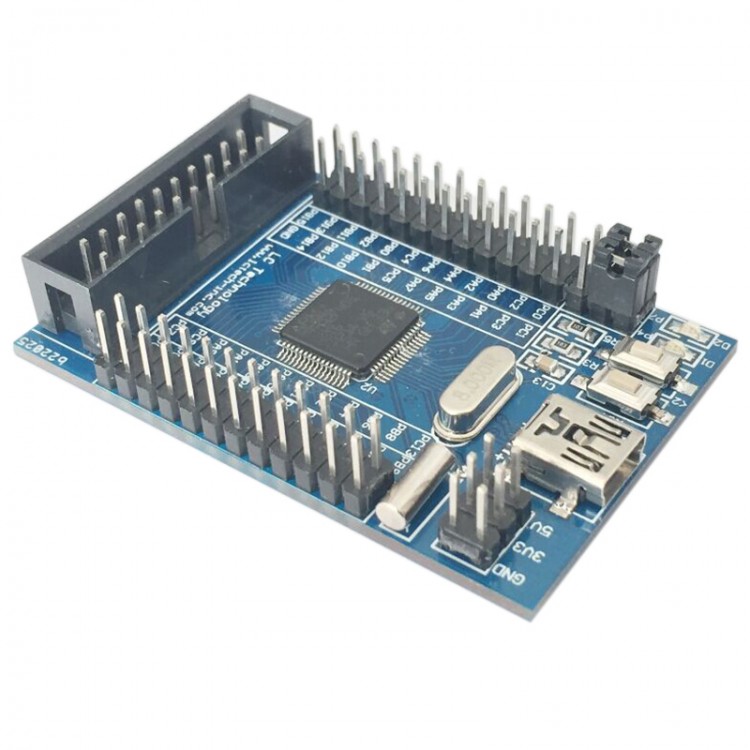

ARM Cortex-M4 STM32F405R Development Board Minimum System Version

ARM Cortex-M4 STM32F405R Development Board Minimum System Version

Description:
STM62F405RG main board equipped with a a STM62F405RG6 chip. The basic circuit-board MCU,including the oscillator circuit, USB interfacem debugging interface. Leads to all I/O port redources. Pin spacing of 2.54mm, samll siaze, suitable access to the user's system.

Feature:
- Kernel: Cortex-M4 32-bit RISC
- Operating frequency: 168MHZ, 210DMIPS/1.25DMIPS/MHZ
- Supply voltage: 3.3V or 5V
- Storage resources: 1MB Flash, 192+4kb SRAM
- I/O resources:3xSPI,4xUSART,2xUART,2xI2S,3xI2C, 1xSDIO,2xCAN,3xAD(12bit,1us,sharing 16), 2xDA(12bit)
- Debugging download: support JTAG interface debugging download, support IAP
Iterface:
- JTAG interface, support for downloading and debugging
- USB interface can communicate with the PC
- MCU pin interface, leads out VCC, GND and all I/O, easy to connect with a variety of modules
- Can set the status of the BOOT
- Reset button
- An independent press
- Power indicator and an external indicator
- Onboard8MHZ and 32.758MHZ crystal


Direction for using:
- The board is equipped STM32F405RGT6 chip
- Chip for all pin leads out, convenient for the user to expand other modules
- A seperate button and reaet button
- On-board two crystals(8 MHZ and 32MHZ)
- With a JTAG interface convenient for the user to download and simulation

Package included:
1xARM Cortex-M4 STM32F405R Development Board
