ARM + CPLD USB Asynchronous Digital Interface High Performance Digital Interface for AUDIOBYTE Interface Program
Description:
- Product support system: for WIN system, for DAPHILE system, for MAC system, for Android system
- Note: for WIN10 below need to install the driver
Driver download address: link: https://pan.baidu.com/s/1Cf5p2NSPYSfaCAl8T6hgVg
Extraction code:q324
Product features:
- This digital interface using Romania's famous interface program for AUDIOBYTE reference to simplify the design, mainly in view of the cost of the direct reproduction is too high, so we simplified a lot of circuitry, retained the common several output functions, and it is still suitable for daily use. This architecture also uses the ARM + CPLD asynchronous architecture.
Parameters:
- Product Model: AUDIOBYTE-UH
- Version: V1.1
- Product Size: 83 x 55 x 18mm (without coaxial projection)
- Product weight: 90g
- Input mode: Type-C USB interface

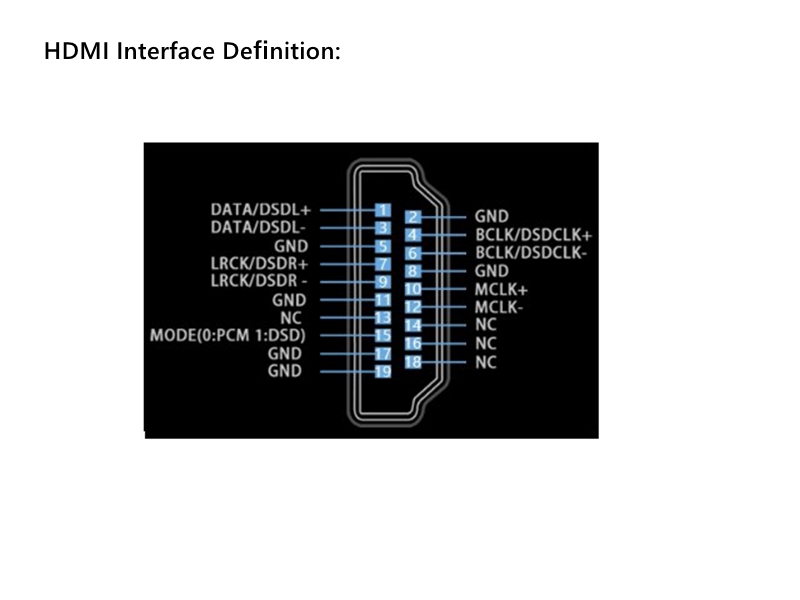

- Output mode: HDMI (differential IIS), SPDIF, OPTICAL
- Output format description:
HDMI support DSD64~DSD512, PCM16-32BITS 44.1KHZ~384KHZ
SPDIF support PCM16-24 bit 44.1khz~192khz
OPTICAL support PCM16-24bit 44.1khz~192khz
Package Included:
- 1 x Digital Interface
