AS1000 2P5 128x32 Dot Professional Full Color RGB Music Spectrum Display with Aluminum Alloy Shell HiFi KTV Rhythm Light

AS1000 2P5 128x32 Dot Professional Full Color RGB Music Spectrum Display with Aluminum Alloy Shell HiFi KTV Rhythm Light

Description:
- The spectrum is the same as the audio, good sound reproduction, small distortion; Good spectrum has high sensitivity, good accuracy, can accurately display all details of music, and the changes in music details that our ears can hear can be seen with our eyes; The simple way to detect the spectrum is to use some light music (such as: violin, piano, flute) to easily see the advantages and disadvantages of the music spectrum, often the poor spectrum can only see the rhythm up and down, but the details are rough, a good spectrum can accurately show the strength of each syllable change, can accurately see the main theme in the music. A good music spectrum display is inseparable from hardware design and software's unique algorithm, which has been doing music spectrum for 10 years and has spectrum patent core technology.

- If you're a music lover and already have a good set of speakers, you always feel something missing when listening to music? By the way, you still have a professional music spectrum monitor: the AS1000 is a professional monitor-grade music spectrum monitor, and when you have it, you know that the music can be watched and enjoyed! You are equivalent to having a professional all-round dancer, as soon as your music sounds, she can dance gracefully according to different music.

- This product is suitable for music enthusiasts who pursue listening quality and visual experience of listening and require high accuracy of the music spectrum! It's also possible

- It is used for radio music, instrument performance, monitoring aids and car music spectrum, live broadcast background, etc.

Features:
- AS1000 is the flagship spectrum product, using a higher level of 32-bit ARM processor, this spectrum control card can drive 1-4 conventional P4 P5, P6 full-color screen, can also drive a single P2, P2.5 high-density screen; With rainbow gradient color display, the spectrum display is precise, accurate, beautiful, and frequency point test can be done.
- Full infrared remote control control, also retain button control, set menu interface with Chinese and English subtitle display.
- 16 colors, 22 modes, up to 352 color mode combinations, with 10 levels of brightness adjustment, frequency range can be adjusted, set with power-down memory.
- Electret microphone MIC and line input two signal acquisition methods, using electronic spectrum core technology, microphone acquisition effect and line input effect are very good.
- With professional-grade AGC (automatic gain control) Wide audio adaptation range, which not only ensures the accuracy and effect of the spectrum, but also does not appear when the volume is too small and does not display, and the volume is wide and the screen is displayed
- With automatic mode conversion function, it can be turned on or off by remote control, and the color and mode will be switched automatically after opening.
- AS1000 comes with a professional isolation chip inside, which will not cause any interference to sound quality, so audiophiles can use it with confidence.
- Users can customize and save 9 commonly used color modes, which can be quickly accessed using the 1-9 numeric keys on the remote control.

Specification:
- 4P5 Screen: 131 x 19 x 3.8cm, 256 x 32 dots
- 3P5 Screen: 99 x 19 x 3.8cm, 192 x 32 dots
- 2P5 Screen: 67 x 19 x 3.8cm, 128 x 32 dots
- 2P4 Screen: 54.2 x 15.8 x 3.8cm, 128 x 32 dots
- 2P3 Screen: 41.4 x 12.6 x 3.8cm, 128 x 32 dots
- P4 Screen: 28.6 x 15.8 x 3.8cm, 32 x 64 dots
- P5 Screen: 35 x 19 x 3.8cm, 32 x 64 dots
- P2.5 Screen: 35 x 19 x 3.8cm, 128 x 64 dots

Using Instruction:
- Before using the casing, please plug in the remote control cable, audio cable, and power cable in order, then plug the power into a 110V or 220V AC socket, and turn on the power switch; Possible abnormal operation may occur. Please place the remote control cable receiver in an unobstructed position for easy reception of remote control signals.
- Please insert the remote control cable into AS1000 before turning on the power. Turning on the power without inserting the remote control cable may cause abnormal operation. Please place the remote control cable receiver in an unobstructed position for easy reception of remote control signals.
- AS1000 spectrum can collect audio signals through two methods: voice sensing or line input. Voice control can be turned on or off through remote control.
- When the voice control is turned on, the line input is still valid. If only the voice control is used, the 3.5mm audio cable can be left unplugged; The default gain of the spectrum is H, which is usually used for line input. To improve the sensitivity of voice control, the gain can be set to H or the spectrum can be placed close to the speaker.
- The input of the spectrum line can only be connected to low-level front-end signals, such as the output ports of computers, mobile phones, CD players, decoders, digital broadcasting or power amplifiers. It cannot be connected to the speaker line port of the power amplifier. If it is necessary to connect to the power amplifier output of the power amplifier, please use a high to low attenuator to attenuate the strong signal before connecting.
- The spectrum delivery includes a 3.5mm headphone jack audio cable. If your device has a Lotus interface, please purchase an adapter cable (not included).
- If one end of the 3.5mm audio cable has been inserted into the AS1000 audio input port and the other end is suspended, a slight fluctuation in the frequency spectrum is a normal phenomenon. At this time, the suspended audio cable is equivalent to an antenna, which can sense surrounding electromagnetic signals. The solution is to connect the suspended end of the audio cable to the audio device. If the audio cable is not fully inserted or has poor contact, jumping may also occur. Please check and eliminate it.

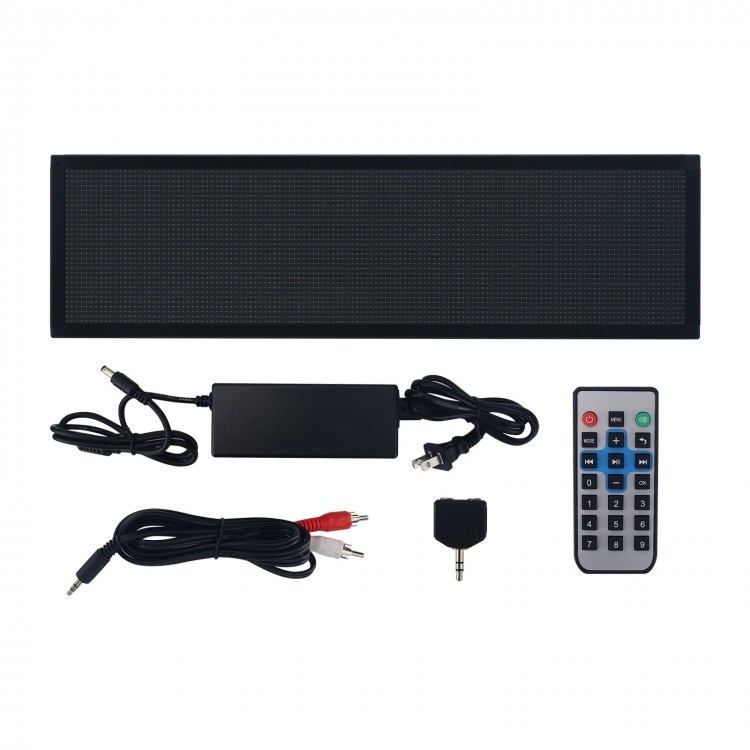

Package Included:
- 1 x Spectrum Display
- 1 x 3.5mm Audio Cable
- 1 x Power Adapter
- 1 x Remote Controller
