Tags: ASA2000
Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $1,465.01 | $1,435.11 | $1,390.27 | $1,330.47 | Contact US |
Features: The max drive current 170mApk/120mArms,the max excitation voltage 120Vp-p/42Vrms,for pcl board repairing.
https://v.qq.com/x/page/q0184t6kf9m.html
https://v.qq.com/x/page/e0184ee5l1y.html

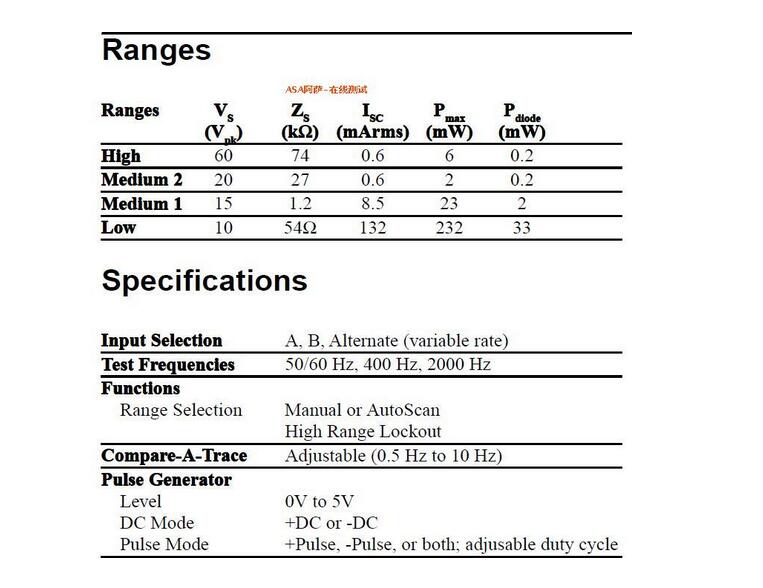

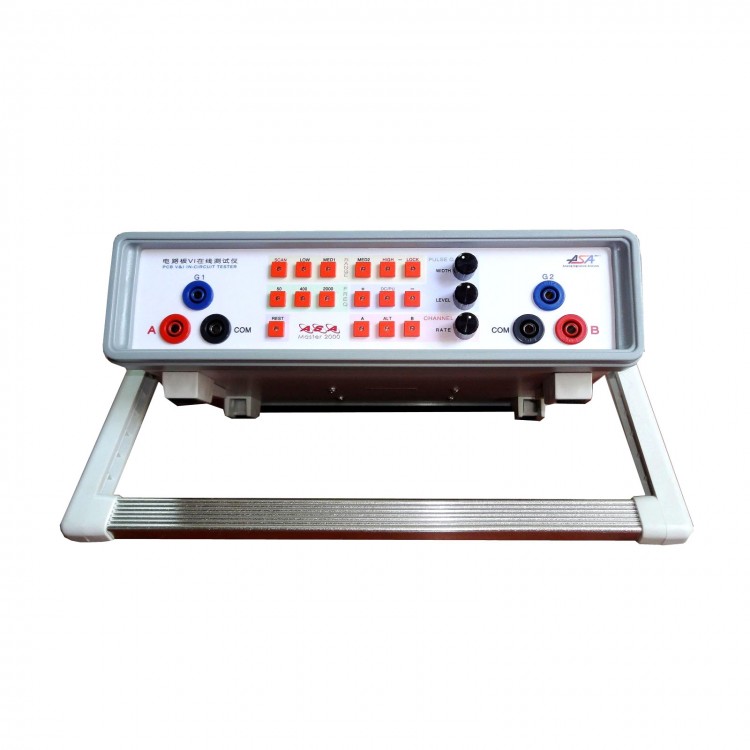

Specification:
- Function control:20MHZ micro-controller MCU,button sound prompt,LED indicator.
- Signal testing:Precise sine wave PLL phase locked,temperature drift:<20ppm/°C,waveform distortion:<2%.
- Testing channel:2 channel:A B ALT conversion rate:ALT 0.5-10HZ,adjustable.
- Testing frequency:3 level:50,400,2000(HZ)

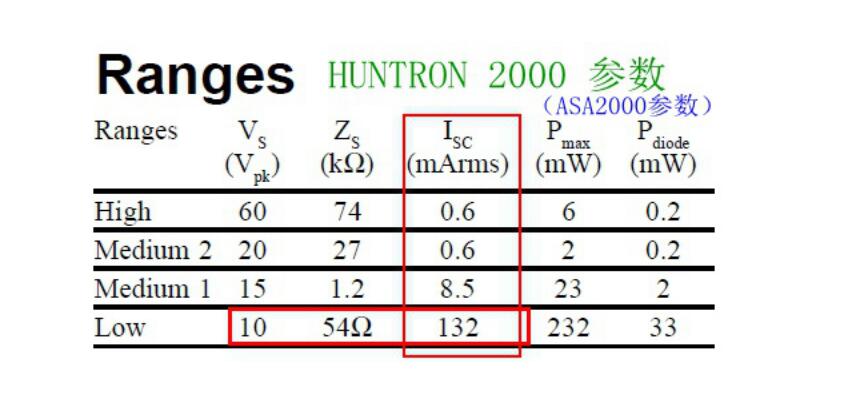

- Testing range:level:Vs[Vrms/Vp];Imax[mA]]
LOW:7.07 /10,110
MED1: 10.6/15,9
MED2:14.1/20,0.6
HIGH:42.4/60 ,0.6
SCAN:auto range conversion,rate:1s,lasting 2 minutes.
LOCK:HIGH level lock.
Pulse generator:
- Pulse frequency:synchronizing with testing signals
- Pulse range:0-7V,adjustable.
- Pulse width:20% - 50% duty cycle continuous adjustable
- Pulse mode:positive,negative,bipolar pulse
DC trigger level 0~+7V (positive),0~-8V(negative)
DC trigger current 0~70mA,vary with trigger level(internal resistance 100ohm)
DC max trigger current 70mA(single channel)/140mA(double channel parallel)
PU pulse max range:>=16 Vp-p
For IGBT drive module threshold voltage Vt & switching off voltage -Vp.Large power controlled module trigger current Igt & trigger voltage Vgt.Most MOS pipe

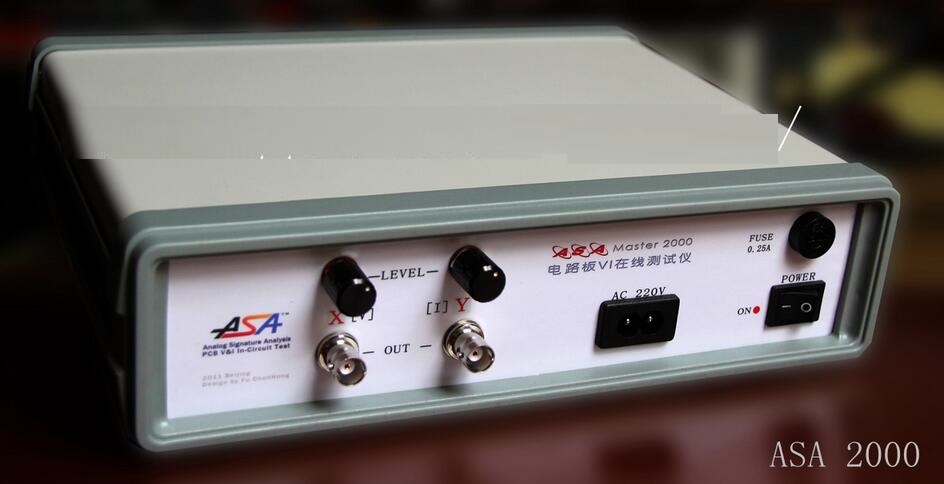

Size: 252x180x64mm(WxDxH)
Net weight: 2.5kg(metal box)

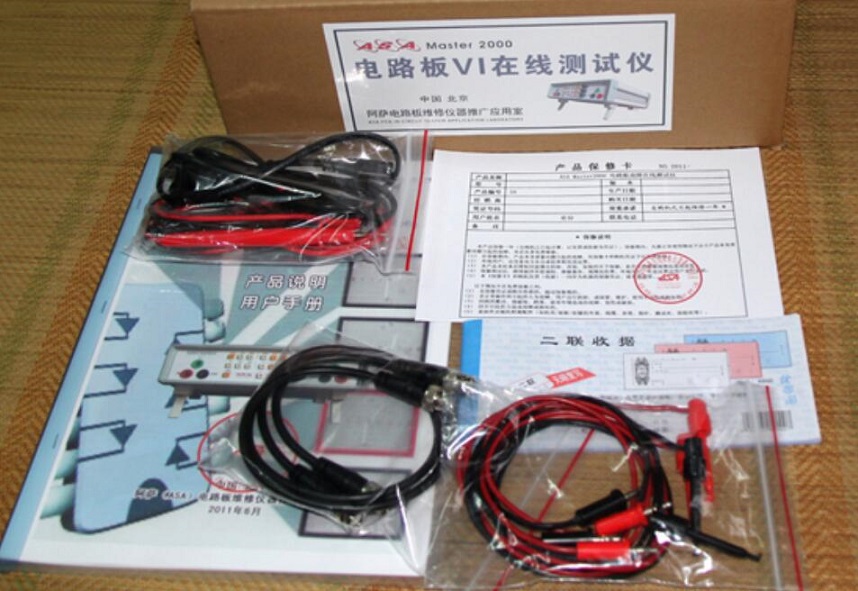

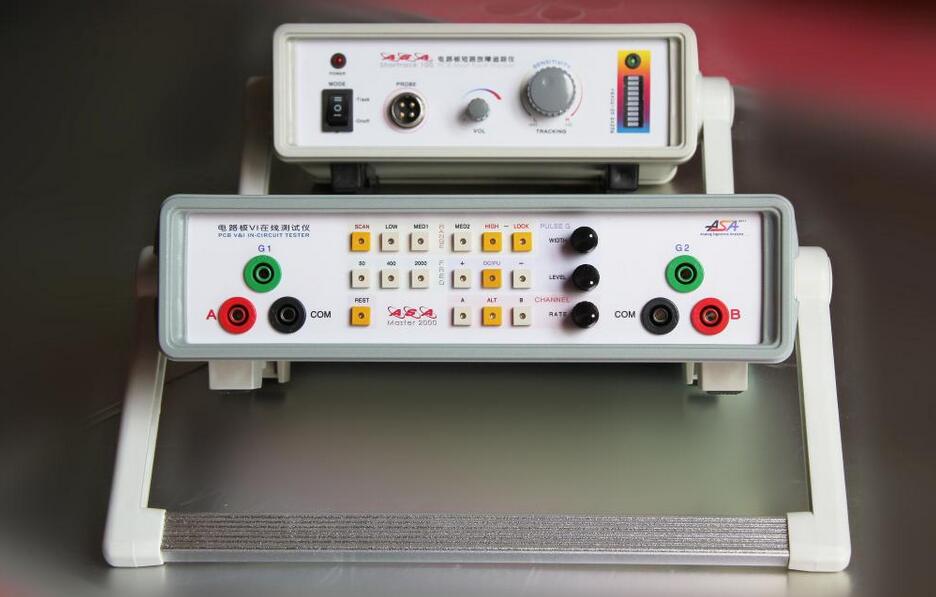

Package List:

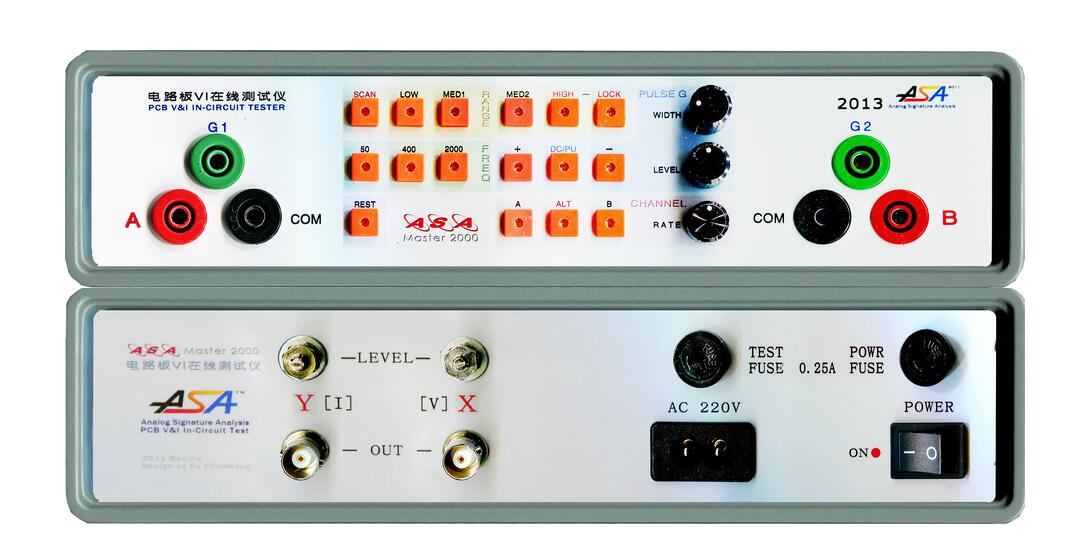

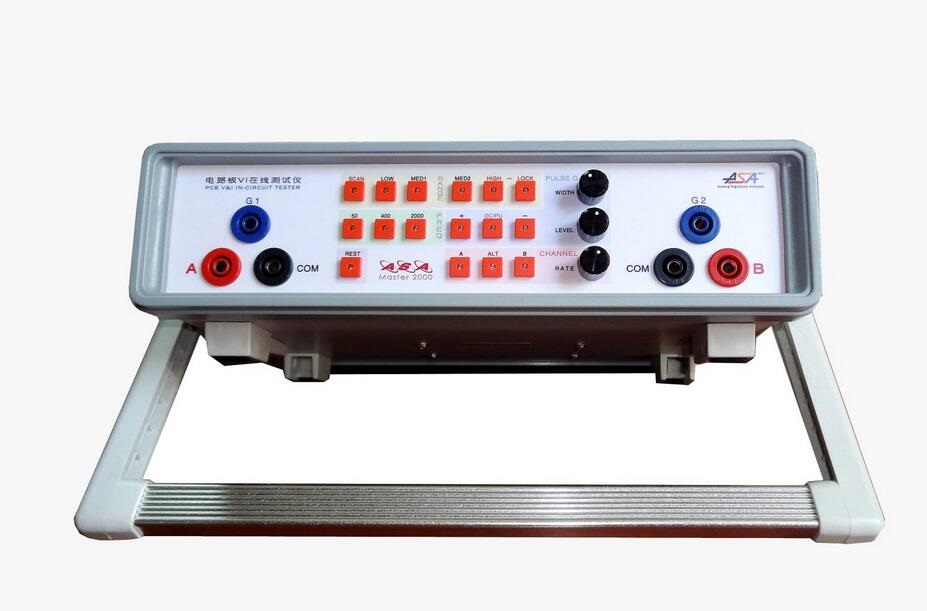

- 1 x ASA2000 PCB VI In-circuit Tester
