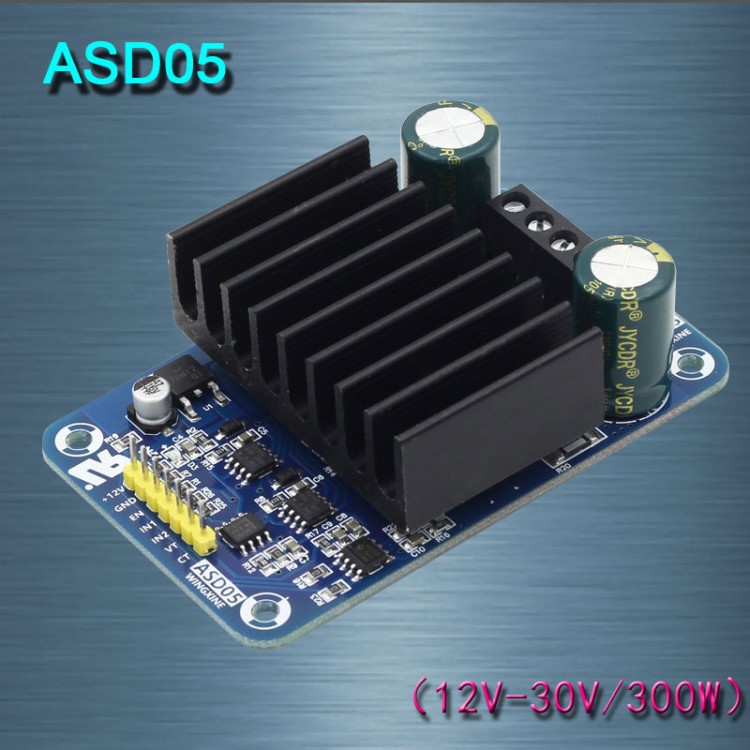

ASD05 Motor Driver Module for Arduino Smart Car 300W 24V CW CCW

ASD05 Motor Driver Module for Arduino Smart Car 300W 24V CW CCW

Description:
This high power driver is suitable for driving:
- Hollow cup motor
- Ordinary DC motor
- Semiconductor refrigeration module
- Electromagnetic valve
- Electromagnetic coil

Features:
- This drive has the brake function can quickly stop the motor, brake quickly, brake significantly, to achieve this effect is simple and easy to operate. The use of many Amoy Friends of the evaluation is better than MC33886 drive chip and discrete drive the brake effect.
- The drive uses a complete MOS driver chip + very low resistance of the MOSFET composition. The complete full-bridge driver chip reliably drives the MOSFET's switching losses to a minimum. Improve power utilization. MOSFET driver chip comes with hardware brakes, temperature protection, current limiting function.
- This driver is superior to the power chip scheme with low power margin and other half-bridge combination schemes in terms of timing complex problems and complementary driving problems.
- MOSFET with current-resistant impact type, can quickly make the MOSFET channel to open, improve the motor speed of acceleration, but also quickly for the motor brake. This can make the car can quickly start also quickly kill the car.
- The driver can operate at 0% to 98% of the PWM modulation duty cycle.
- Above 98% of the use may cause damage to the drive, which is NMOS characteristics, high power drives are so.
- The logic level is compatible with PWM level 3.3V-5V. Suitable for all types of single-chip. Control type is active low.

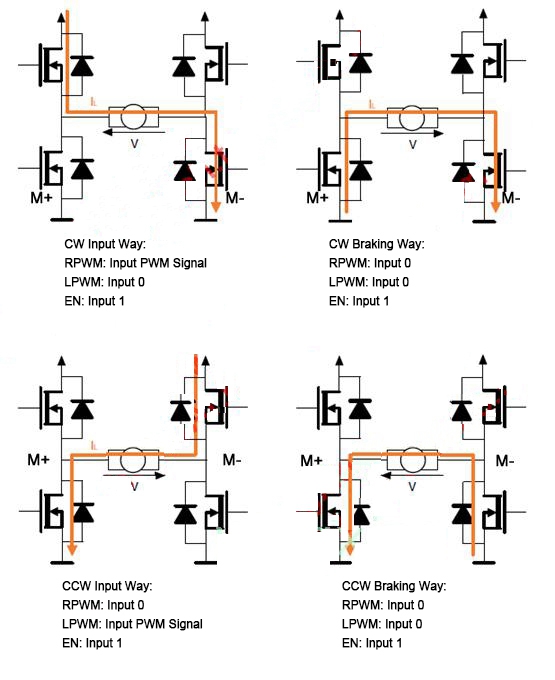

Control Method:


Specifications:
- Drive Model: ASD05
- Rated voltage: 12V-24V
- Limit voltage range: 11V-30V
- Rated current: 50A (peak current: 110A)
- Control power: 300W
- Dimensions: length 80mmm * width 50mmm * high 25mm

Package Included:
- 1 x Motor Drive Module
- 1 x Electronic User Manual
