Mechanical Zeroing Version ST20 Portable Harmonic Equatorial Mount with Double Dovetail Slot High Quality Astronomical Accessory
$1,672.84
Normal Version ST20 Portable Harmonic Equatorial Mount with Double Dovetail Slot High Quality Astronomical Accessory
$1,478.51
ST17 Portable Harmonic Equatorial Mount Ultra-low Backlash Harmonics with Handheld Storage Box
$1,160.29

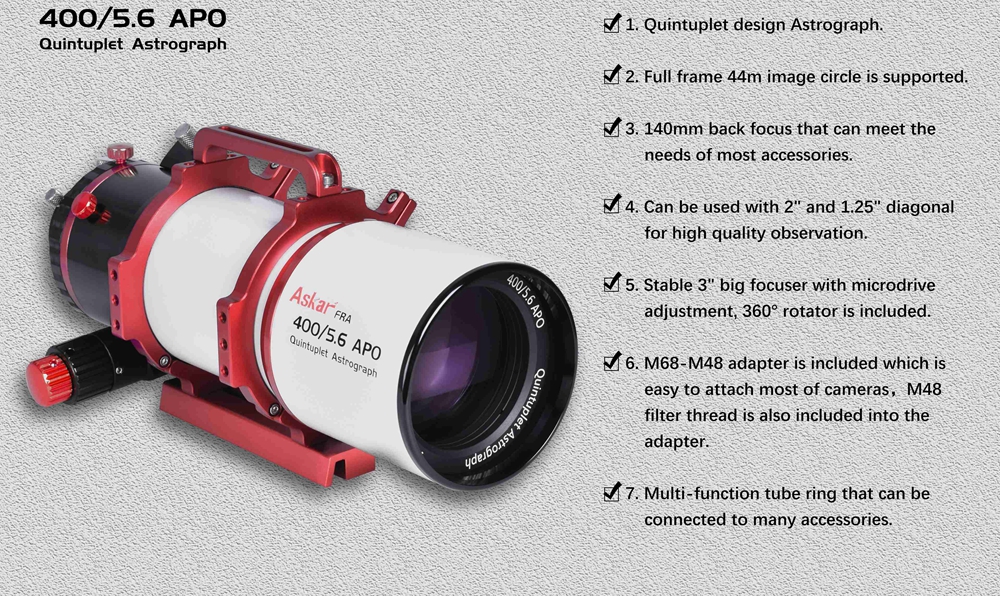

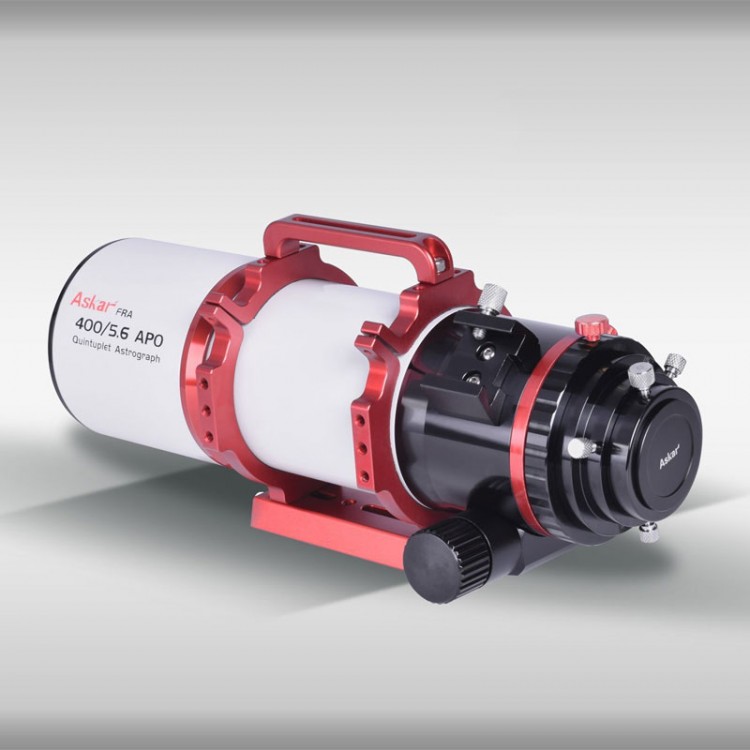

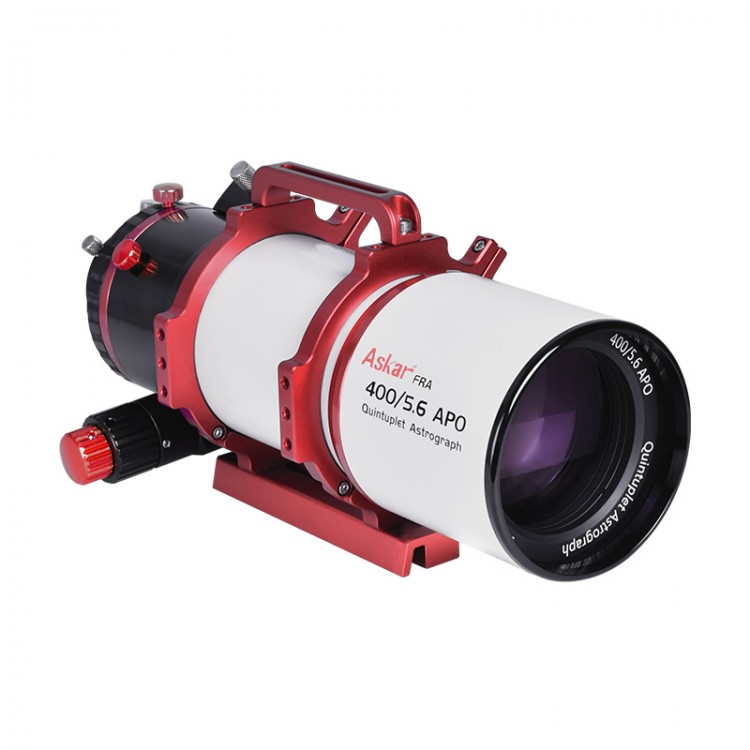

Askar FRA 400/5.6 Astroscope Quintuplet Dual ED Air-spaced APO Astrographic Camera for Flat-field Refractor Astrograph
Description:
- Welcome to our brand new Askar FRA series! The FRA, Flat-field Refractive Astrograph, is a refractive equipment with built-in flat field correction. FRA can also be applied in visual observation. So the FRA series is among the few versatile and quality astrophotographic devices in the current astronomy market.

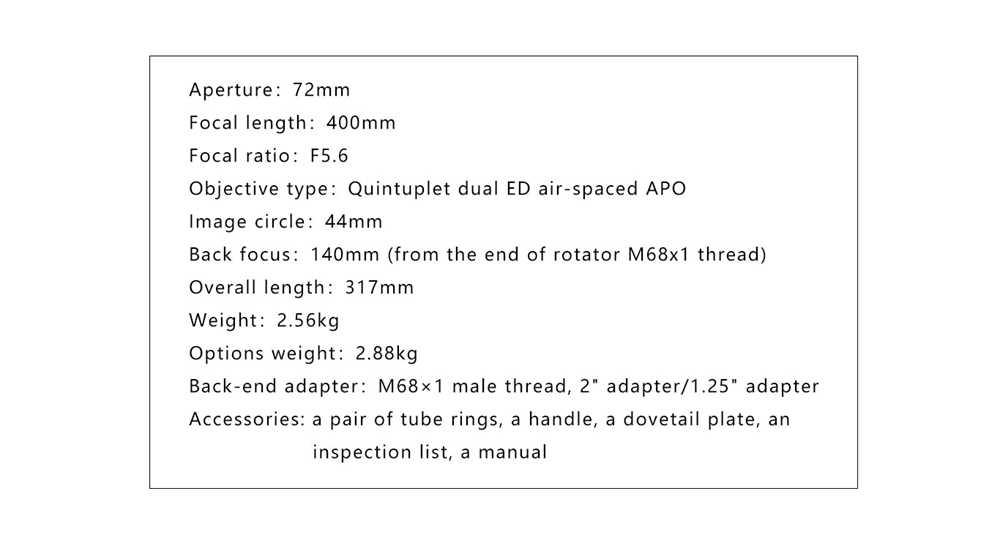

- For easy parameter conversion between different lenses, the first-come of the FRA family features a Petzval-like quintuplet design (two pieces of which are special ED glass) with an aperture of 72mm, a focal length of 400mm and a focal ratio of f/5.6, providing a 44mm image circle.
- The FRA400 quintuplet astrograph has adopted modern optical design with a retractable dew shield, a 3" rack-and-gear-based high-precision reducer containing a 360-degree rotator, M68×1 thread, a 2" adapter ring and a 1.25" visual adapter. The reducer is equipped with fine focal adjustment function for more precise calibration in practical observation or sky imaging.
- Its excellent in controlling and possibly avoiding chromatic aberrations. The image quality is also optimized to satisfy various observing or imaging purposes.

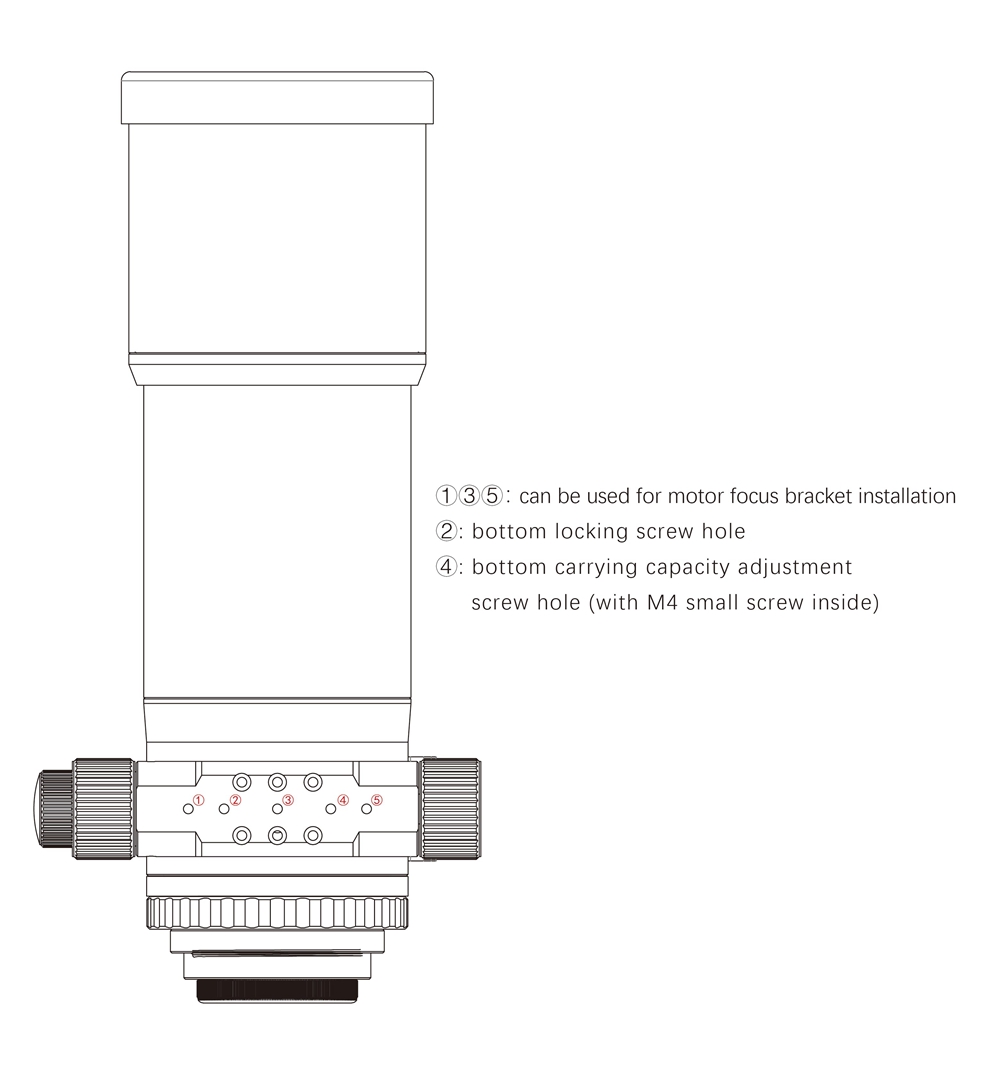

- It’s worth mentioning that FRA 400/5.6 has a pair of fashionable-looking and multifunctional patented tube rings. Various practical attachments are available on three sides of the tube rings which is really a convenience for practical observation or imaging activities.
- The FRA400 quintuplet astrograph has adopted modern optical design with a retractable dew shield, a 3" rack-and-gear-based high-precision reducer containing a 360-degree rotator, M68x1 thread, a 2" adapter ring and a 1.25" visual adapter. The reducer is equipped with fine focal adjustment function for more precise calibration in practical observation or sky imaging.
- Its excellent in controlling and possibly avoiding chromatic aberrations. The image quality is also optimized to satisfy various observing or imaging purposes.
- It’s worth mentioning that FRA 400/5.6 has a pair of fashionable-looking and multifunctional patented tube rings. Various practical attachments are available on three sides of the tube rings which is really a convenience for practical observation or imaging activities.
- F/5.6 is a relatively fast focal ratio for astrophotographic use, but we further provide an ultra focal reducer to satisfy the special needs of experienced imagers, greatly reducing the practical focal ratio to f/3.9. This inventive combination supports full-frame imaging and can dramatically shorten the exposure time, which is a pioneering design in the astrophotography field.
- The inborn mission of Askar FRA400 is to simplify and enhance our customers observing and imaging practice, bringing them infinite surprises when exploring the boundless universe.
Package Included:
- 1 x Astroscope
- 1 x Pair of Tube Rings
- 1 x Handle
- 1 x Dovetail Plate
- 1 x User Manual
