| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $63.90 | $62.59 | $60.64 | $58.03 | Contact US |
ASME-MD/ND High Torque Aluminum Alloy Bus Steering Servo for Robotics and Automation (CAN Communication)
$66.75
80BL 48V 500W High Power DC Brushless Motor 3000RPM High Speed BLDC Motor + ZM-6618 DC Brushless Driver
$133.77
80BL 48V 500W High Power DC Brushless Motor 3000RPM High Speed BLDC Motor Support PWM Square Wave Drive Control
$103.48

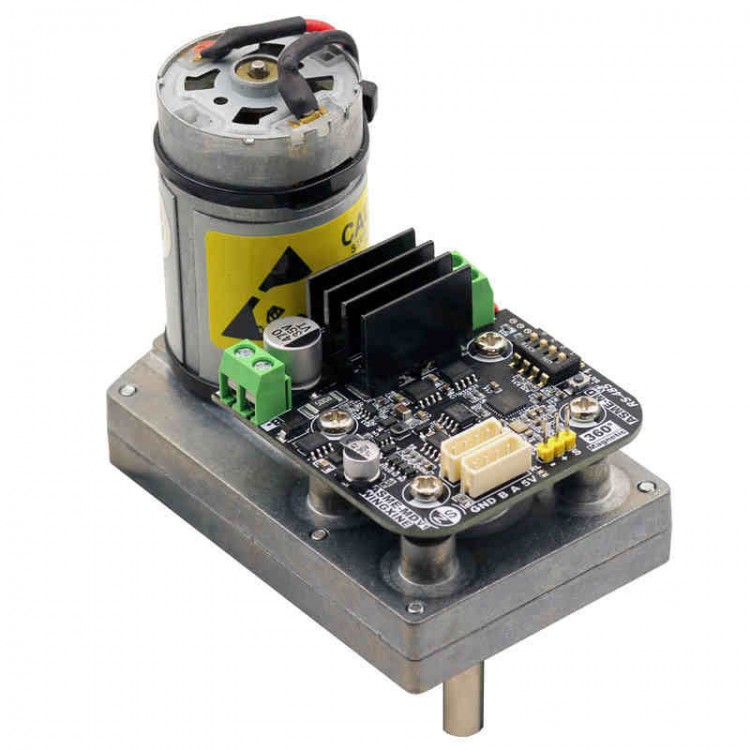

ASME-MD/ND High Torque Aluminum Alloy Bus Steering Servo for Robotics and Automation (RS485 Communication)
Features:
- Suitable for servo controllers, model aircraft wireless remote controllers, and analog voltage control.
- Alloy gear high-power motor with high torque output.
- Aluminum alloy gearbox, ultra lightweight.
- Easy to install, sturdy and durable.
Application:
- Heavy load motion control of arm joints and leg joints in large robots.
- Industrial automation production line manipulator control.
- Accurate control of valve angle.
- Large scale camera gimbal remote control.
- Various occasions that require high torque angle control.
Specification:
- Rated voltage: 8V - 24VDC
- No-load current: < 500mA (current limit value: 5A, it is recommended to use switch power supply or battery over 10A)
- Extreme angle: ±180°or 0°~360° (max), the steering servo has electronic limit adjustment.
- Controlling resolution: 15bit for 360°, ARM32bit MCU, real digital port reads magnetic encoded data.
- Material: alloy steel for gear and axis; cast aluminum for gear housing
- Mechanical life: >1,000,000 times/full load

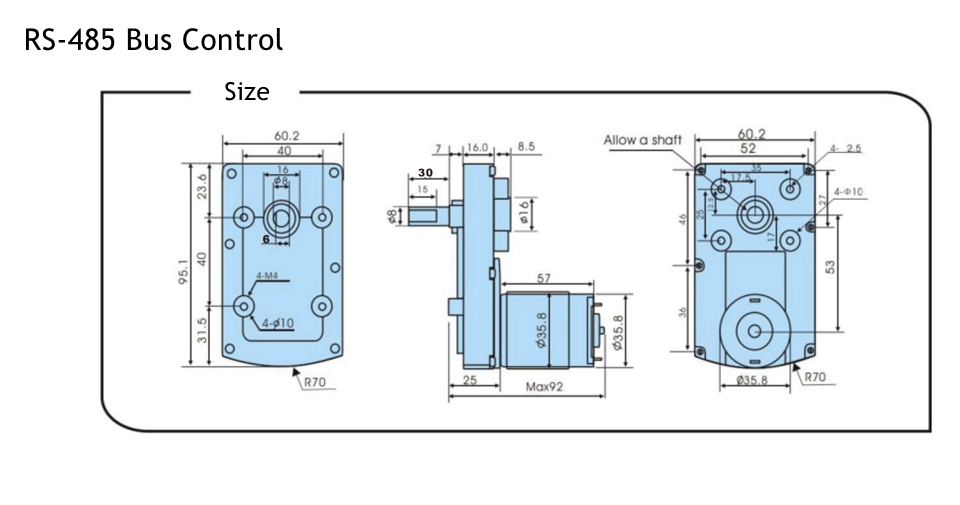

- Product size: 95 x 60 x 110mm
- Net weight: 550g
Package Included:
- 1 x Steering Servo
- 2 x 4Pin Bus Connection Cable
