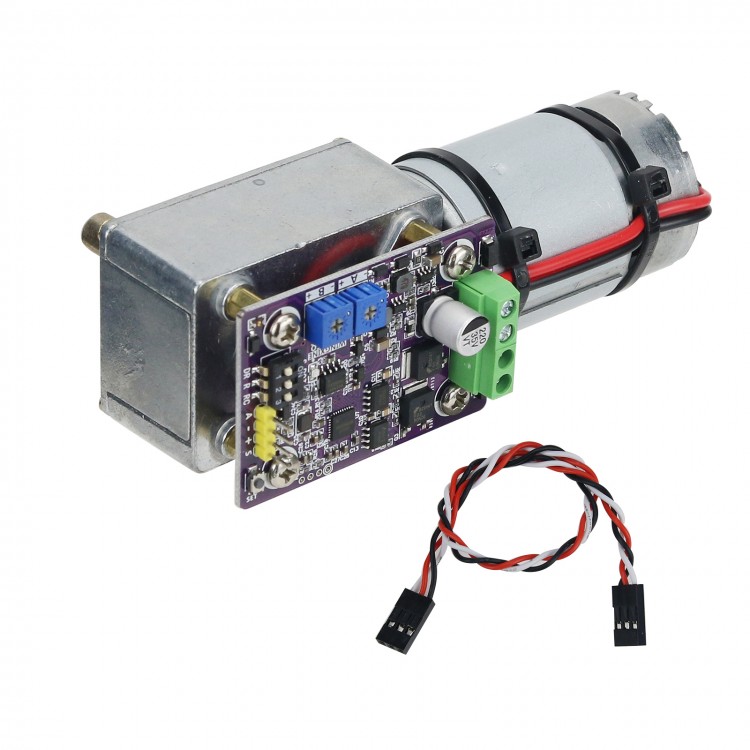

ASME-SQB Servo Worm Shaft Power Failure Self-Locking Magnetic Encoder Servo Robot Arm Valve Control
Features:
- Suitable for servo controller, model airplane wireless remote control and analog voltage control
- Alloy gear high-power motor high-torque output
- Ultra-lightweight gearbox body made of aluminum alloy
- Easy to install and durable
Application:
- Heavy-duty motion control of arm joints and leg joints of large robots
- Industrial automation production line manipulator control
- Precise control of valve angle
- Large camera pan/tilt remote control
- Various occasions requiring large torque angle control
Rated Parameters:
- Rated voltage: 7V~24V/DC (7V/MIN~30V/MAX, limit voltage)
- No-load current: <500mA (current limit: 1A, it is recommended to use a switching power supply or battery greater than 5A)
- Limit angle: ±180° or 0°~360° (MAX). The servo has electronic limit adjustment
- Control mode: 1. RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz (frequency), suitable for wireless remote control mode; 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz (frequency) ), suitable for multi-channel servo controller mode control. 2. Analog voltage mode: 0V-5V input voltage (0V corresponds to 0°, 5V corresponds to 360°)
- Control resolution: 360° corresponds to 12Bit resolution (4096), for ARM 32-bit MCU, real digital port to read magnetic encoding data
- Materials: gear and shaft: alloy steel; gear box body: cast aluminum
- Weight: 400g/0.9 lb

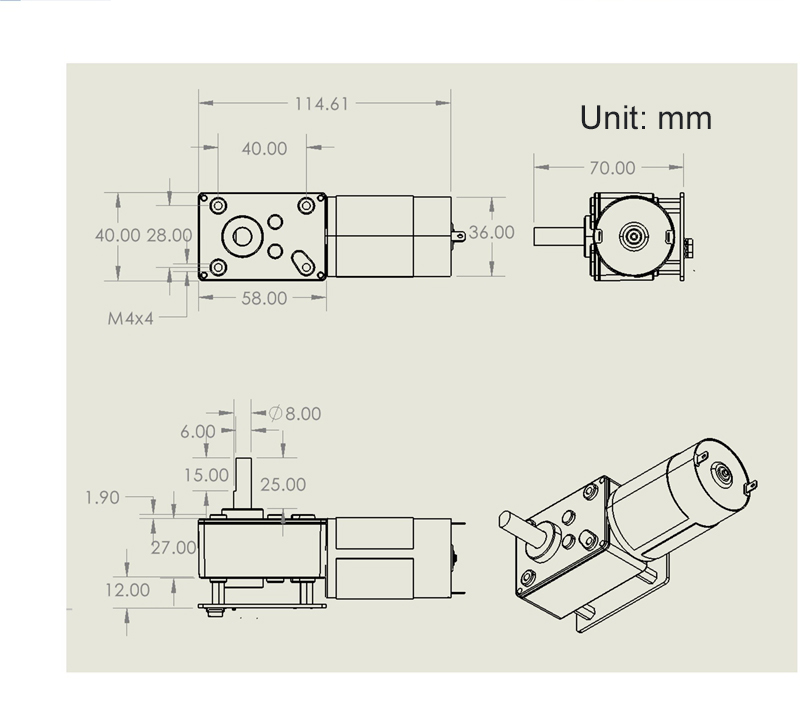

- Dimensions: 95 x 60 x 110mm/3.7 x 2.4 x 4.3"
- Mechanical life: >1,000, 0000 times/full load (conservative value)
Limit Parameters:
- Limit voltage: 7V~30V/DC (MAX)
- Current limit: 1A±0.2A (MAX)
- Working angle: ±180° or 0°~360° (MAX)
- Control method: 1. RC mode: 1ms pulse mode: 1ms~2ms (pulse width)/50Hz~333Hz (frequency); 2ms pulse mode: 0.5ms~2.5ms (pulse width)/50Hz~333Hz (frequency). 2. Analog voltage mode: 0V-5V input voltage 0V corresponds to 0°, 5V corresponds to 360°
- Weight: 400g~450g/0.9-1 lb
Specifications:
- Model: ASME-SQB
- Starting torque: 180kg.cm max
- Holding torque: 120kg.cm max
- Rated speed (24V power supply): 0.5s/60°
Package Included:
- 1 x Servo
- 1 x Signal Cable
Note:
- Battery is not included.
