Assembled 15W 15000MW DIY Laser Engraving Machine Metal Engraver Metal Carving CNC Router Machine

Assembled 15W 15000MW DIY Laser Engraving Machine Metal Engraver Metal Carving CNC Router Machine

Metal a person's head carving video

Metal letters engraving video

Metal carving video

Specification:
- Construction: mobile gantry,body Aluminum + Acrylic
- Drive system: stepper motor,stepper precision: 0.00625mm
- Engraving area:20x14cm
- Engraving speed: 0.02 to 0.2 sec/pixel
- Laser power: pulse 10w/15w (100ns Duty 50%)
- Carving materials: stainless steel,iron,anodised aluminum,ceramics,stone,wood,bamboo,leather,plastics,etc.
- Height restrictions: no
- Interface: USB
- Features: Software 255 adjustable laser power,low-light positioning, positioning freedom,gray,shortest path algorithm
- Power supply: external adapter,DC 12V 4A,input AC 100V-240V,47Hz-66Hz
- Dimensions: 28x32x23cm
- Weight: 2.4kg
- Software: machine developed specifically for use ac master software,support Chinese,English,Russian,4 languages
- Support win7,win8,win10
- Super-reduced instruction,1 byte of instruction accounted for more than 40%
- Explain arduino + grbl faster than the speed more than 30 times,and instantly be able to complete the task of interpretation active instruction;shortest path algorithm can shorten the time.

Parameter:
- Interface: USB
- Power: 12v4A
- The laser power: 15W
- The appearance size: 28X32X23cm
- Engraving area: 140X200mm
- Weight: 3.6KG
- Package size: 37X34X21cm
- Can be carved material: stainless steel,iron,anodised aluminium,ceramics,stone,wood,bamboo,leather,plastic,etc.
- Features: nanosecond timing of serial data transmission substantially without delay,power adjustable,high power pulsed laser,lifts fast focusing,targeting low light gray print.

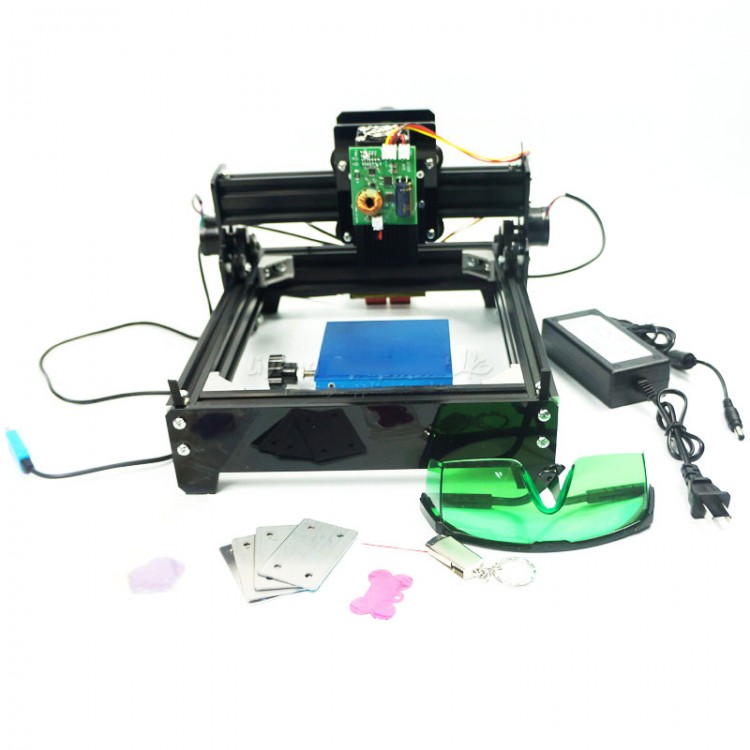

Packing List:
- 1 x Laser  15W
- 1 x Power cord
- 1 x Metal lift platform 10X10cm
- 1 x Glasses
- 1 x USB line (Software can download via our link)
