| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $2,397.33 | $2,348.40 | $2,275.01 | $2,177.16 | Contact US |
5DOF Low Cost Robot Arm ROS Open Source Robotic Arm (Slave Arm) with XL430-W250-T Servo Motors
$551.16
5DOF Low Cost Robot Arm ROS Open Source Robotic Arm (Master Arm) with XL330-077-T Servo Motors
$457.01
Low Cost Robot Arm ROS Open Source Robotic Arm (5DOF Master Arm + 5DOF Slave Arm) with Servo Motors
$1,005.56

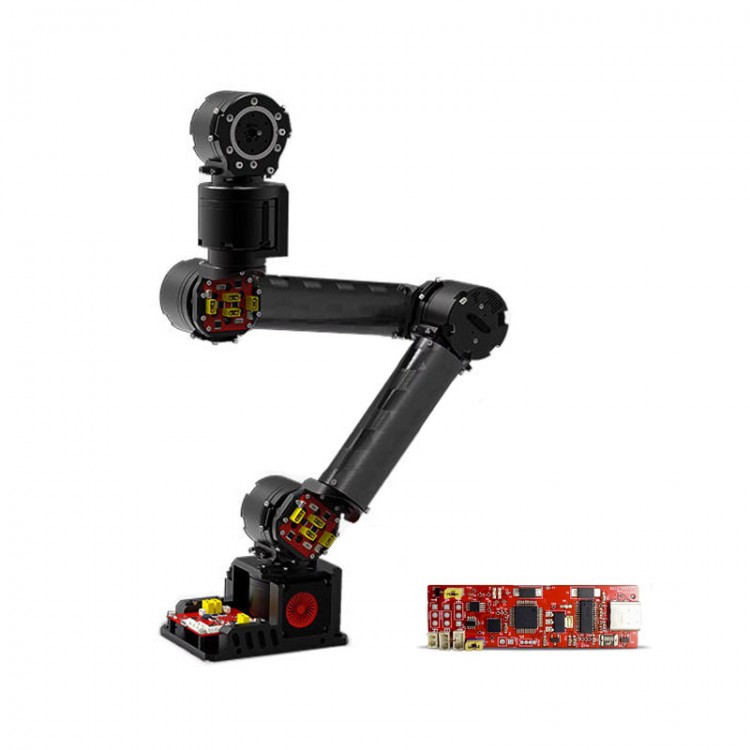

Assembled 6-Axis Mechanical Arm Kit 500g Load Capacity 100W Drag Teaching Opensource Robot Arm with CAN Debugger
Features:
- Arm span 500mm, end load 500g.
- The repeated positioning accuracy is plus or minus 1mm.
- There are three control methods: serial feedback, PWM, and drag teaching.
- There is a digital twin upper computer.
- Open source for upper computer facilitates secondary development, open source for main control hardware, and open source for robotic arm structure.
- Assembly video, open-source file available at www.acmemach.cn
Specification:
- Degree of freedom: 6
- Load: 500g
- Net weight: 2690g
- End maximum speed: 240°/S
- Repeat positioning precision: ±1mm
- Voltage range: 20 - 24VDC
- Maximum power: 100W
- Material: aluminum alloy/carbon fiber
- Using temperature: 5 - 60℃
- Using humidity: 20 - 75%
- Power interface: Type-C
- Control interface: TTL x 1, PWM1-6 x 6, IO x 6
- Control method: offline teaching demonstration, upper computer control, PWM input control, PWM input control (support remote control), serial port protocol control
Package Included:
- 1 x Mechanical Arm
- 1 x CAN Debugger
