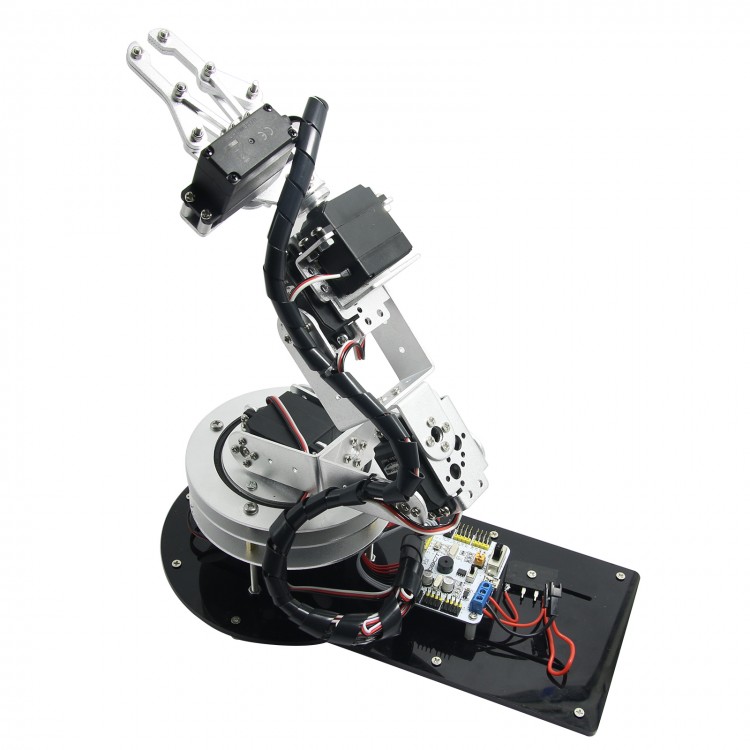

Assembled Aluminium 6 DOF Robotic Robot Arm Clamp Claw & LD-1501 Servos & 32CH Controller for Arduino-Silver
This is already assembled, ready to go. The battery is not included. You have to buy it.
Features:
- Rotation angle of 180 degrees
- Radius of gyration: 355mm
- Height: 428cm (holder closed)
- Clamp Max open is 55mm
- Holder of the widest distance: 98mm
- With 6 Pcs Alloy servo arm.
- With Swivel Stand ( 5mm thickness Acrylic materials chassis, laser cut from Acrylic plate )
- Color: Silver
LD-1501 Servo Description:
- Large torque, quick speed, low noise, very small block zone and diastema. Suitable for mid/ high end robot
- Only need one signal, the digital servo can be locked and the angles are fixed
- Digital servo is added micro controller
- Weight: 60g
- Size: 40*20*40.5mm
- Speed: :0.16sec/60°7.4V
- Block torque: 15kg/cm 6V ; 17kg/cm 7.4V
- Working voltage: 6-7.4V
- Unloaded current: 100mA
- Cable length: 30cm
Items included:
- 4 x Multi-functional servo bracket
- 3 x Long U-type servo bracket
- 1 x L-type servo bracket
- 3 x Miniature Ball Radial Bearing
- 1 x Aluminium Clamp Claw
- 1 x Screw and screw cap set
- 1 x Aluminum Swivel base
- 6 x Metal Serovo Arm plate
- 1 x Acrylic chassis
- 6 x LD-1501 servo
- PS2 remote controller x 1 (w/ receiver)
- 32CH servo control board x 1
- USB cable x 1
Test Vedio:
