Description:
- Has automatic, conventional and single trigger mode, convenient to capture the instantaneous waveform
- Digital displays waveform parameters, such as frequency, cycle, pulse width, duty cycle, maximum, minimum, average, peak value and effective value
- Can be triggered by a rise or drop edge
- The trigger level position is adjustable and with instructions
- Vertical displacement is adjustable and with instructions
- Waveforms before observable triggers
- Can freeze waveform display at any time
- Test signal source with 1KHz /3.3V square wave
- Save/tune out the waveform, the shutdown waveform does not disappear
- 100 brand new and high quality
Specifications:
- 2.4-inch color TFT LCD with 320 x 240 resolution
- Maximum Real Time Sampling Rate: 1Msps
- Precision: 12Bit
- Sampling Buffer Depth: 1024 bytes
- Number of Channel: 1
- Analog Band Width: 0~200KHz
- Vertical Sensitivity: 5mV/Div~20V/Div (progressive by 1-2-5)
- Trigger Position: 1/2 of buffer size fixed
- Sensitivity Error: < 5%
- Input Impedance: 1M Omega
- Power Supply: 9V DC
- Supply Current: 120mA
- Maximum Input Voltage: 50Vpp (1:1 probe), 400Vpp (10:1 probe)
- Horizontal Time Base Range: 10 s/Div~50s/Div (progressive by 1-2-5)
Package include:

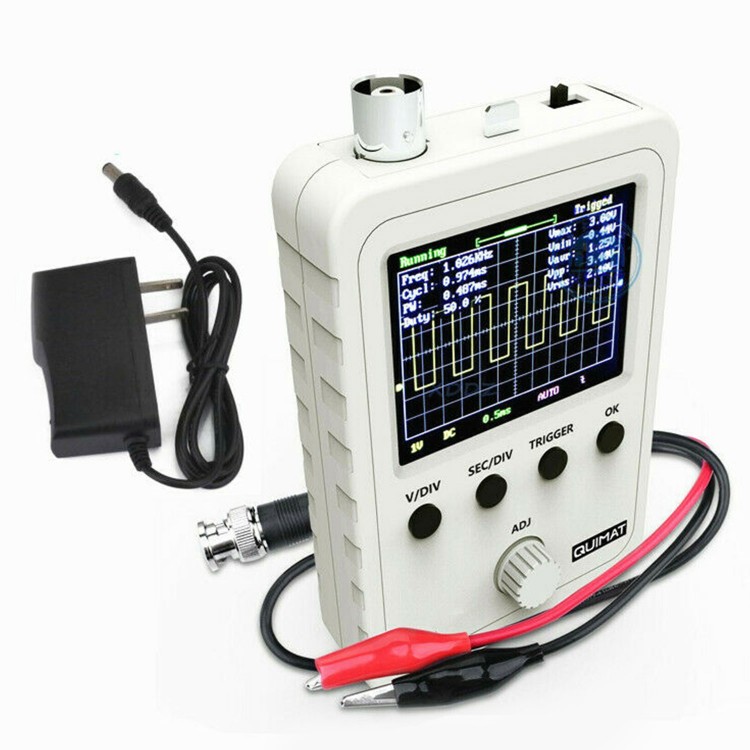

1 x New Assembled Digital Oscilloscope
1 x Probe
1 x 9V 1A power adapter
Note: this Oscilloscope without battery in it,must connect with the power adapter.
