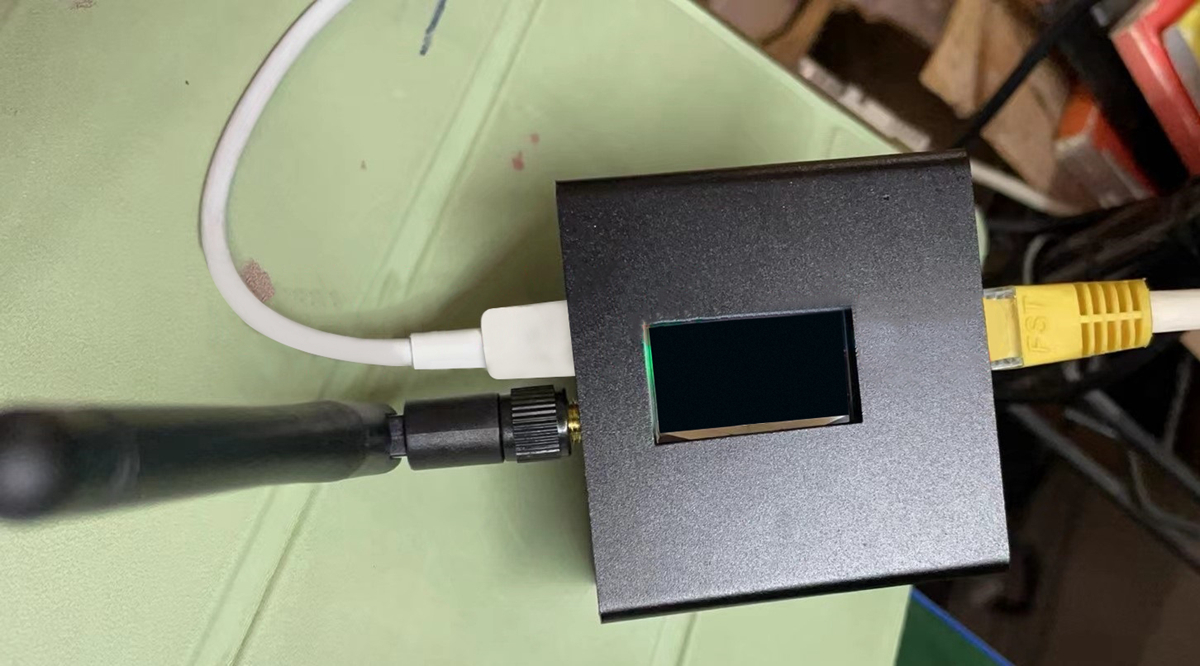

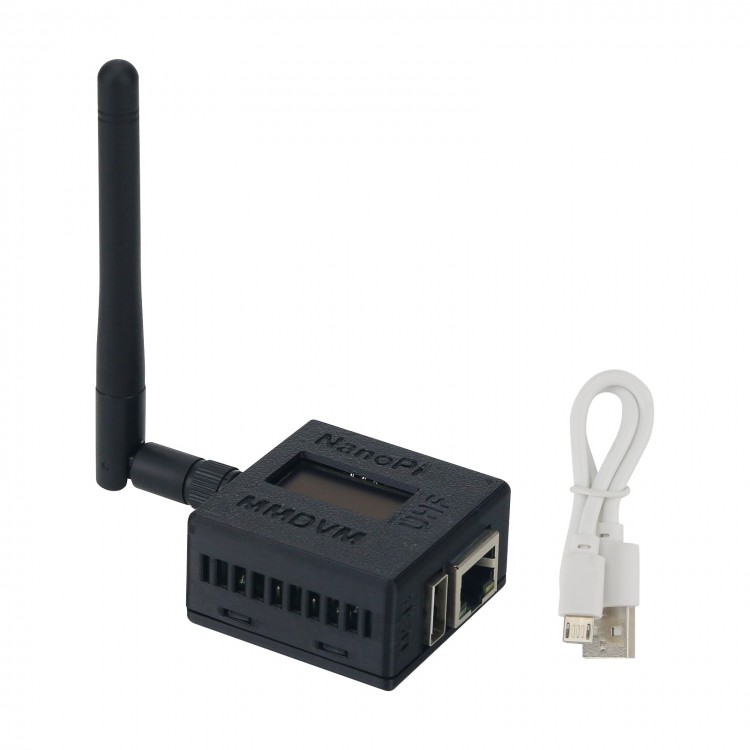

Assembled MMDVM Hotspot for NanoPi Replace for Raspberry Pi Supporting DMR/YSF/P25/NXDN/DSTAR/POCSAG
Description:
New MMDVM hotspot with board for NanoPi NEO is an ideal replacement for Raspberry Pi zero w. The board for NanoPi NEO is without wifi module. So the hotspot come with an extra usb wifi adapter to make it wireless.
Features:
- Mini and Portable, 5.6x6x4.1mm (LxWxH), two-way circulation and natural heat dissipation to avoid fan noise
- Support MMDVM mode: DMR/YSF/P25/NXDN/DSTAR/POCSAG
- Frequency range: 144-146Mhz, 420MHz-475MHz, 842MHz-950MHz
- 3xfast setting speed then raspberry zero w /2w, don't wait
- Replaceable folding antenna, center frequency 433MHz
- External USB port for USB wifi | rtlsdr stick |Usb to Serial connection for Nextion 2.x-3.x tft screen
Specifications:
- Power requirement: 5V2A
- MCU: F103C8T6
- Transceiver IC: ADF7021
- Programmable output power: -16dBm to +10dBm
- TCXO: 14.7456MHz, ±2.5 ppm
- PCB: 40mmx40mmx1.2mm
- Host: 256M RAM for NanoPi NEO, v1.4, A3 Architecture
- Options USB WiFi: RTL8188CUS
- OLED: I2C 128*64px, blue color
- SD Card: 8Gb
- Charging cable: Micro USB can transfer data, support 5V2A
Package Included:
- 1 x Assembled MMDVM Hotspot
- 1 x Antenna
- 1 x USB Cable
How to set?
