Parameter:
- The poower board 6 pcs filter capacitor updated to 10000UF50V heat capacitor.
Default quiescent current changes to 100MA,AB type.
- L10 circuit design,1.6 mm dual-sided panel TTA1943 & TTC5200;C5171 & A1930
- Amplifier board size:200x65x30mm (LxWxH)
- The max output power: 300W +300W 4-8ohm
Recommend input voltage:+-28V-45V DC input
Recommend transmitter:AC dual 24-32V AC output,power:>300W
Power panel parameter:
- 6PCS 10000UF heat fiter
- C1237 voltage protection
- + - 15 V DC (current 100MA)
- AC 24-32V input
- Size:139x113x56mm (LxWxH)
Tips:
- Static current of the finished amplifier board is DC+- 45v
- Please add radiator , Mica sheet and radiator for 5200 1943 tube should not be short circuit.

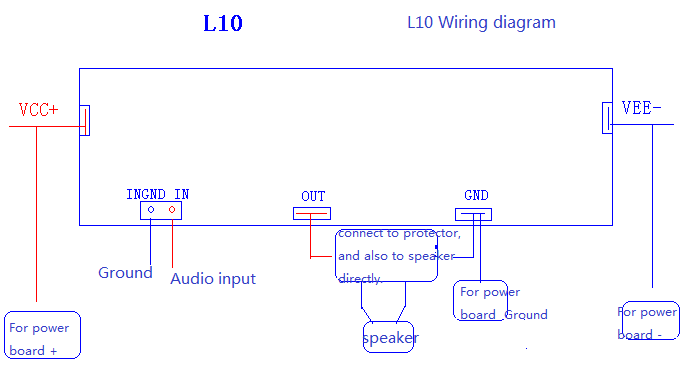

- Power on the board after checking the right wiring carefully. Wrong wiring will damage the board.
- When the potentiometer onboard is adjusted clockwise, static current become larger, otherwise will decrease. Generally, do not adjust the potentiometer, or the board will be damaged when the static current becomes larger while the radiator is not big enough.
Package included:
- 1 x L10 HiFi Audio Amplifier
- 2 x Power Panel
