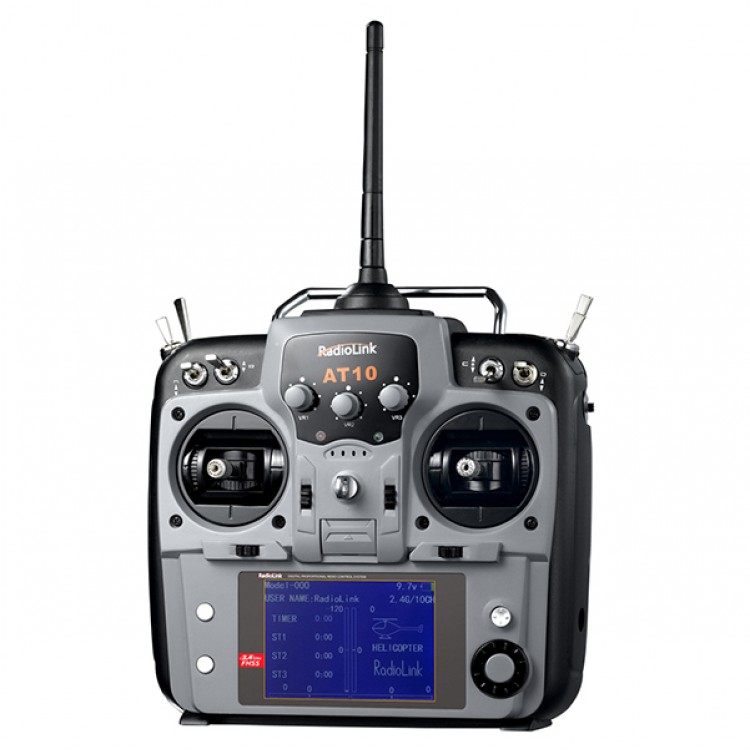

AT10 2.4G 10CH Transmitter Radio System TX&RX 2KM 10C for FPV Multi-rotor Aircraft

AT10 2.4G 10CH Transmitter Radio System TX&RX 2KM 10C for FPV Multi-rotor Aircraft

Features:
- Multiple function remote control system,including helicopter,airplane and slider three type flying machine and five models,cover almost every popular model,you can fly any model by this radio.
- 3.5 inch colorful screen 320×480 resolution,clear display menu and graphs.
- Great control distance: 1.1km on the ground,2km in the sky.
- Expansion feedback module,users can get plane details in real time.
- Make very setting clear and exactly output result.
- Fast response time only 3ms to the operation,faster then the other transmitter 20ms,even ten channels also let you feel it.
- High channel resolution reaches 4096,0.25us per resolution let all the servos keep tranquil.
- Strong anti-jumping,DSSS(Direct sequence spread spectrum) technology.
- Unbelievable price, high quality as supper bland, and more exactly, faster response, higher resolution,one and the only one anti-jumping DSSS technology.really worthy to have it.

Technical Parameter:
- Dimension:18×9.5×22cm;
- Weight:0.95kg;
- Frequency:2.4GHz ISM band(2400MHz~2485MHz);
- Modulation mode:QSPK;
- Channel bandwidth:5.0MHz;
- Spread spectrum:DSSS;
- Adjacent channel rejection:＞38dBM;
- Transmitter power:  ＜100mW(PCB testing),
                     ＜20dBm(3 meter air testing);
- Operating Voltage:8.6~15V;
- Operating Current:＜95mA;
- Control distance:800 meters ground;
- Channel:10 Channel,8~10 channel are customizable;
- Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model;
- Simulator model:under the simulator model the transmitter action turn off,change to power saving model;
- Screen:16 colorful screen,size 78×52mm,320*480 pixel.

Package list:
- 1x AT10 10CH transmitter
- 1x R10D 10ch DSSS receiver
