AT24C Electric Energy Meter AC50-300V Multimeter (without Bluetooth) w/ Open-Close Type Transformer

AT24C Electric Energy Meter AC50-300V Multimeter (without Bluetooth) w/ Open-Close Type Transformer

Download user manual, PC software installation instruction and PC software:
https://www.mediafire.com/folder/z805h41uhmyd2/AT24C

Features:
- Test range: voltage AC50-300V; current 0-100A; power 30KW
- 2.4" HD color screen; support Chinese and English interface
- Multifunctional AC meter. One screen displays 12 major test data. The test instrument can be used as a voltmeter, ammeter, power meter, frequency meter, power factor meter, electricity meter, carbon dioxide meter, thermometer, etc.

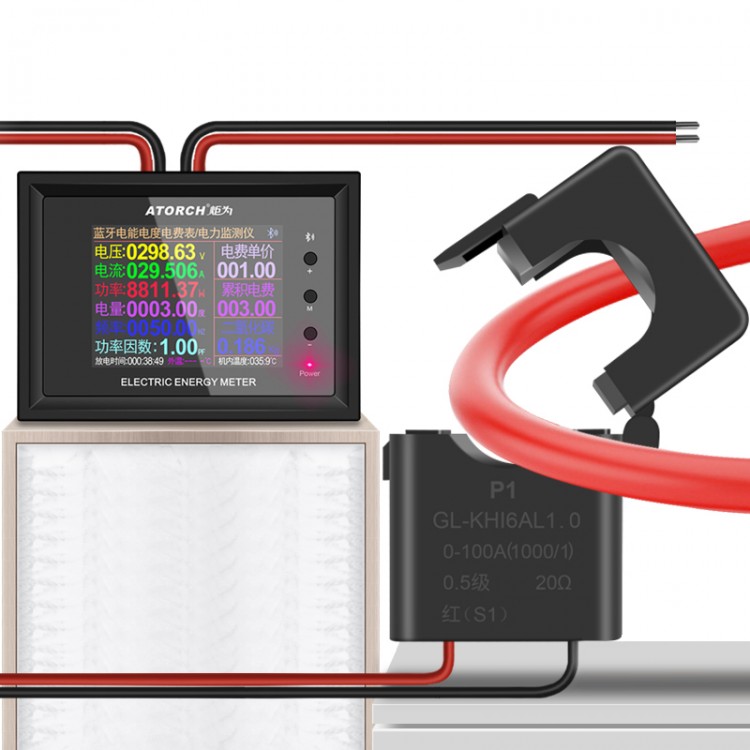

- External open-close type transformer enables easy measurement. Test wires directly
- Simple wiring: Just power the meter to accurately test the voltage, and then pass the load wire through the external shunt of the meter to accurately test the current, power, etc. The mutual inductance method allows the current to reach 100A and the power to reach 30KW for accurate measurement with no loss and no heat, bringing the industry technology to a new level
- 32bit CPU core processor for ARM Cortex: it adopts processor (for ARM). It has high performance, low power consumption, faster and simpler instruction execution. Convenient, fast and efficient to use
- Measure various parameters; can be used to measure AC power, electricity bills, and measure various household appliances
- With multiple certifications to ensure quality
- Can measure accumulated electricity and accumulated electricity charges; with timing function
- Display frequency and power factor (Hz and PF)
- Displays internal and external temperature; displays carbon dioxide
- Over-voltage, over-current, over-power, and low-voltage alarm prompts. This meter can set the values of over-voltage, over-current, over-power and low-voltage thresholds according to the actual needs of users. The system performs 24-hour automatic fine monitoring according to the value set by the user. Once it finds that the threshold is exceeded, it will respond immediately and display a reminder alarm page to warn the user to pay attention to the safety of electricity consumption and the protection of electrical appliances
- Application scenarios: Available for retrofit. Measure data such as power, current, voltage, electricity bill, electricity, frequency, power factor time, internal temperature, external temperature, carbon dioxide and other data of connected electrical appliances to clearly understand electricity consumption. It is used to refit various sockets, install distribution boxes, and assemble into AC meters to detect parameters such as voltage, current, and electricity of various electrical appliances

Specifications:
- Model: AT24C
- Bluetooth connection: not support
- Voltage: AC50~300V
- Current: 0~100A
- Power: 30000W
- Timing: 999.99.99H
- Electricity: 9999.99kwh
- Power factor: 0.00~1.00PF
- Panel size: 85.7 x 63mm/3.4 x 2.5"
- Installation size: 76 x 53mm/3 x 2.1"

Package Included:
- 1 x Electric Energy Meter with Transformer
