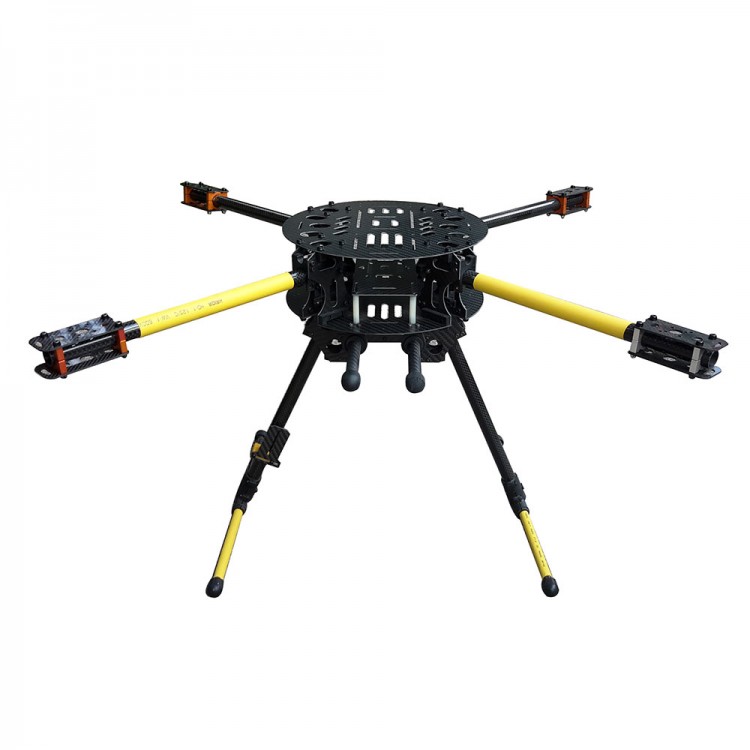

ATG Umbrella Folding Quadcopter Frame Kit TG-X4-16-790 Alien Quadcopter
Description:
- Height between center plate is 75mm, good for arranging wiring and installing other equipment
- Center plate adds flight control damper abosorb stage to recduce vibration caused by high frequency
- Adding motor protecting board, if the aicraft is out of control, the motor has a buffer
- Folding structure is portable
Testing result:
- Flight control: S4-V2
- Remote control: 9 Channel rc
- Aircraft: ATG folding TG-X4-16
- Material: Center board 1.5mm full carbon
- Full carbon tube material: 16X14X290MM( 650MM wheelbase)
16X14X325MM( 720MM wheelbase)
16X14X360MM( 790MM wheelbase)
- Wheelbase: 650MM / 720MM / 790MM
- Center plate height: 75mm
- Center plate dia width: 215mm
- Landing gear height: 280mm
- Flight control damper stage
- Flying weight: 1950G (battery not included)
- Motor: 4822 690KV 30A
- Prop: ATG+1238
- ATG battery: 14.8V/ 20C/ 5200mAh
