Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $647.64 | $634.43 | $614.60 | $588.17 | Contact US |

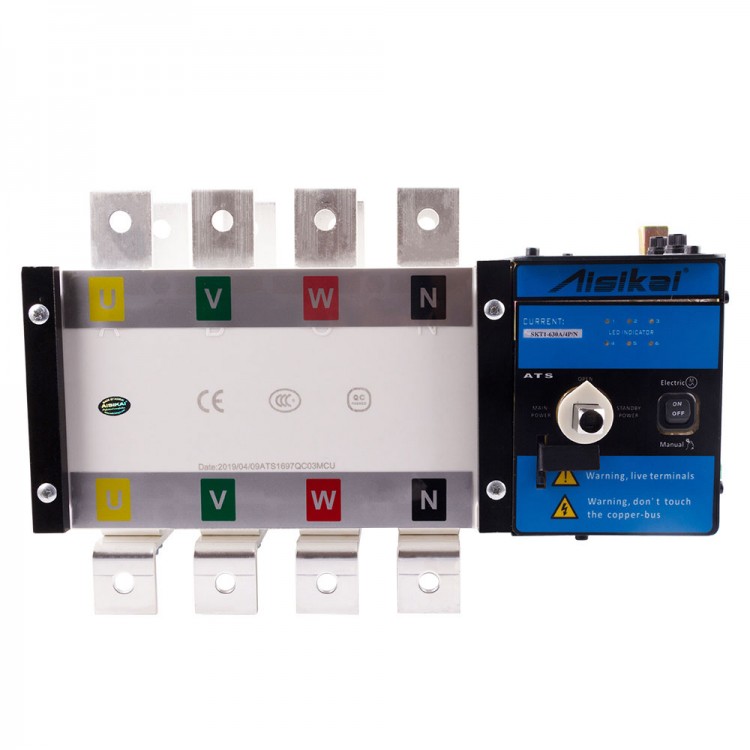

ATS-630A 4P Automatic Transfer Switch Generator Set Controller Intelligent Dual Power Supply
Main Technical Parameters:
- Conventional thermal current lth: 630A
- Copper bar rated insulation voltage Ui: 1000V
- Rated impulse withstand voltage Uimp: 12KV
- Rated working voltage of copper bar Ue: AC440V
- Use category: AC-33A
- Copper bar rated working current le: 630
- Rated making capacity: 10le (10 times the rated current)
- Rated breaking capacity: 10le (10 times the rated current)
- Rated limit short-circuit current: 100KA
- Rated short-time withstand current: 26KA
- Conversion time I-II or II-I: 0.6S
- Control power supply rated working voltage Us: Standard product AC220V, optional DC24V, AC110V, AC280V, the correct working range is 85%Vs-115%Vs
- Startup: 325W
- Normal: 62W
- Net weight (kg) 4 poles: 17.5
Package Included:
- 1 x Automatic Transfer Switch
